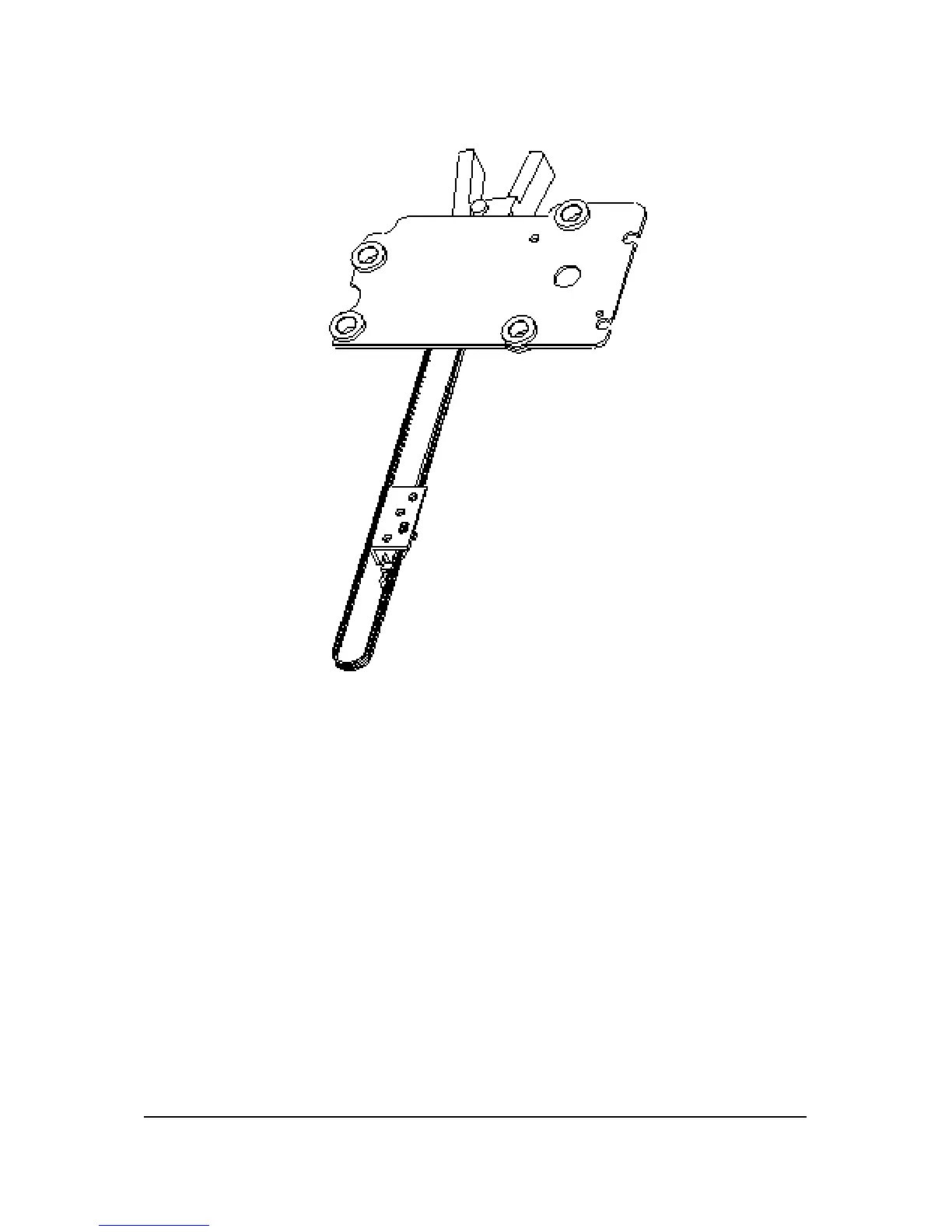

Figure 7-4 Remove Scan Transmissional Assembly 2/2
7.4 PCB-frame Section
To removing PCB-frame:
A. Remove the three screws in Fig.7-2.
B. Disconnect the connectors between main board and wires in.
C. Remove all the screws, then you can get the main board and power
board.
Maintenance API Confidential 7-5
No Copy/Reproduction allowed
