5.5. Block diagram
G2220HD consists of a head and a stand (base). The head consists of a LCD module with 4 lamps,
a power board (include AC/DC, inverter power), a control board, a power key board, and an
interface BD.

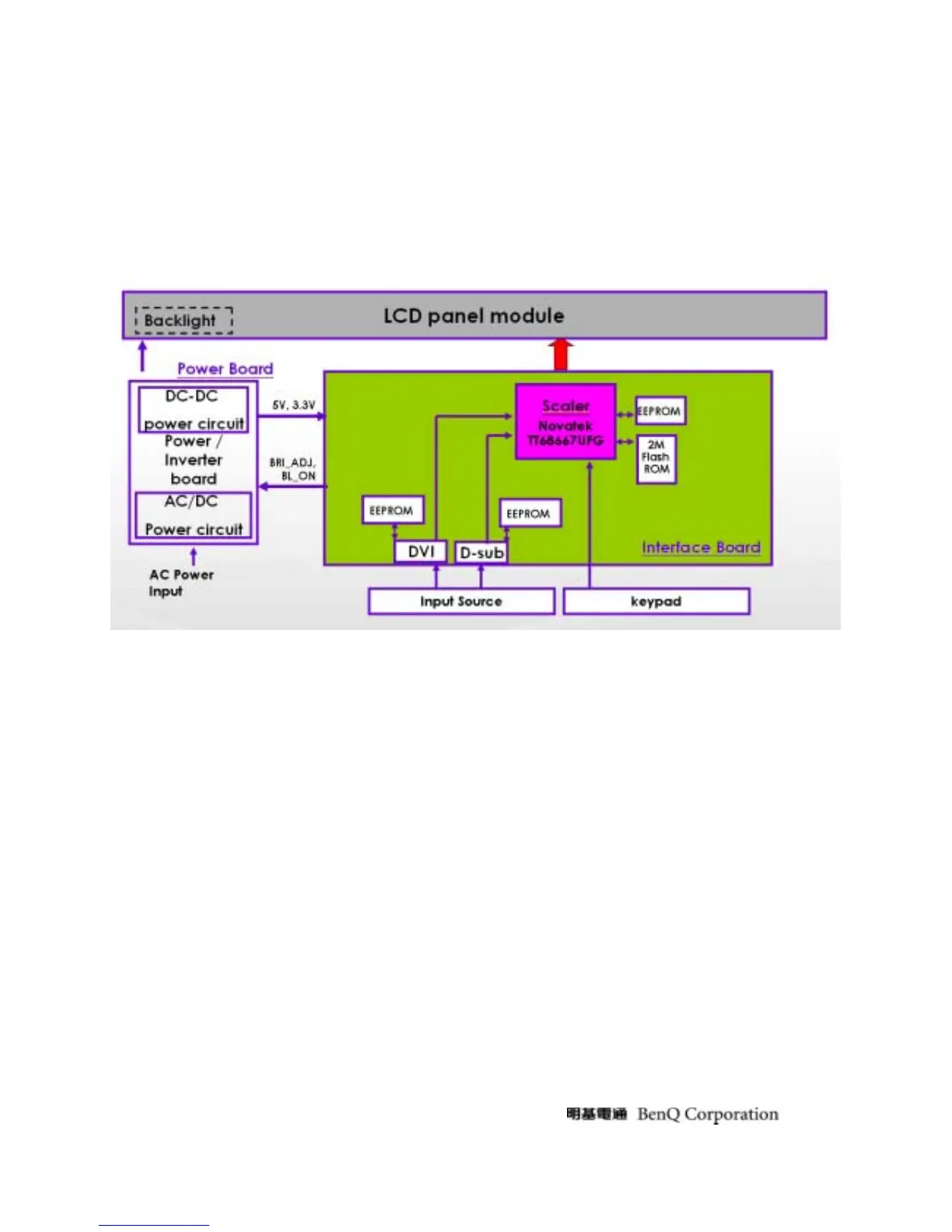

The block diagram is shown as below.
