• LU960UST
The screen aspect ratio is 16:10 and the projected picture is 16:10.
Note:
To optimize the projection quality, we suggest to project images in an area without grayscale.

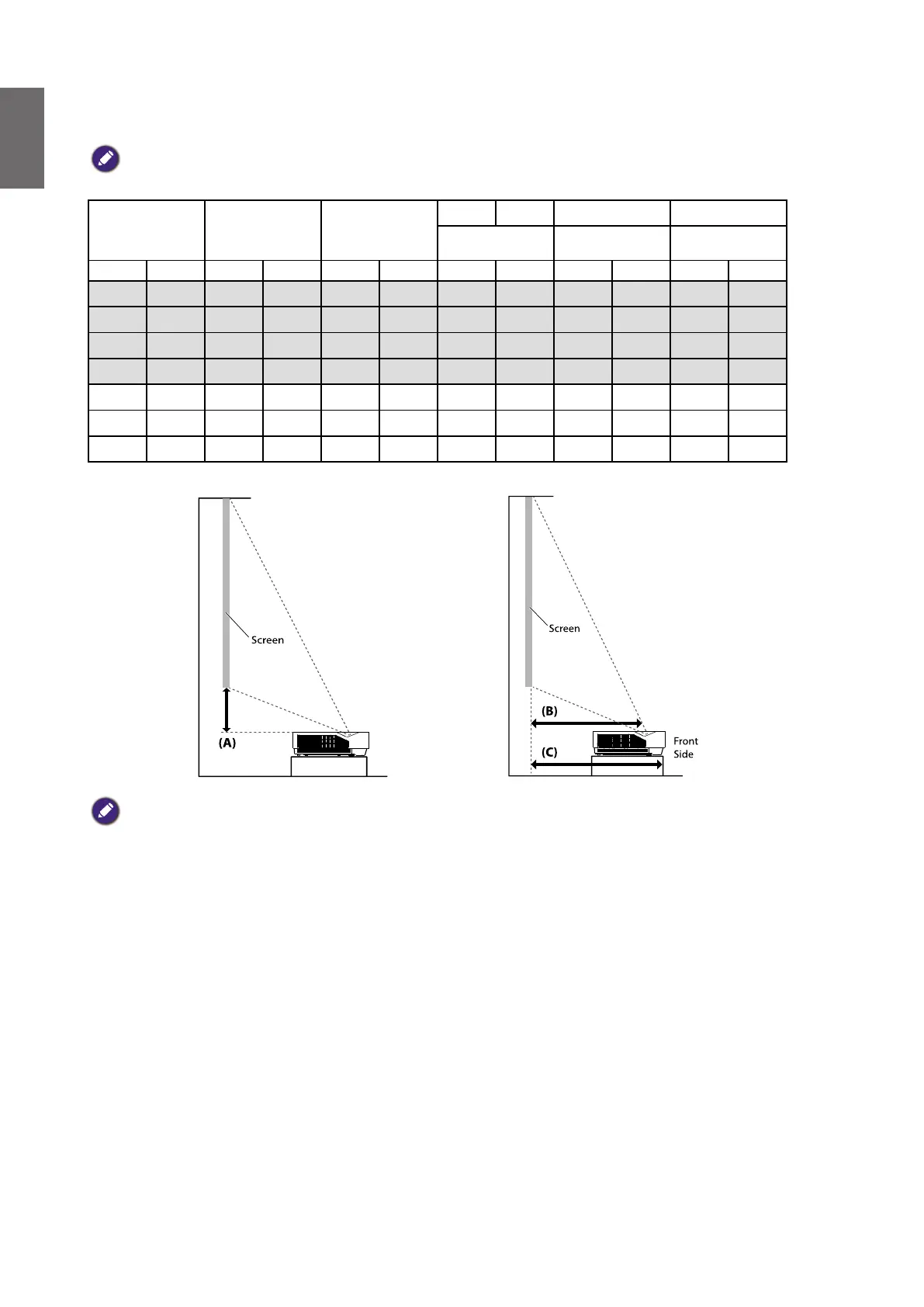

Diagonal Image Width Image Height
Offset
Fix Distance (mm) Distance (mm)
Projector Top to
Screen Bottom (A)
Center of Cover
Glass to Screen (B)
Projector Front to
Screen (C)
(Inch) (mm) (Inch) (mm) (Inch) (mm) (Inch) (mm) (Inch) (mm) (Inch) (mm)
70 1778 59.4 1508 37.1 943 5.4 136 12.9 328 15.8 402
80 2032 67.8 1723 42.4 1077 6.4 163 15.0 382 17.9 456
87 2210 73.8 1874 46.1 1171 7.2 182 16.5 420 19.4 494
90 2286 76.3 1939 47.7 1212 7.5 190 17.2 436 20.1 510
100 2540 84.8 2154 53.0 1346 8.6 217 19.3 491 22.2 565
120 3048 101.8 2585 63.6 1616 10.7 271 23.6 599 26.5 673
150 3810 127.2 3231 79.5 2019 13.9 352 30.0 762 32.9 836
Note:
There is 5% tolerance among these numbers due to optical component variations. BenQ recommends that if you
intend to permanently install the projector, you should physically test the projection size and distance using the actual
projector before you permanently install it, so as to make allowance for this projector's optical characteristics. This will
help you determine the exact mounting position so that it best suits your installation location.
