BenQ MX613ST - Page 15

15
- DVI 1.0 Compliance
- HDCP 1.1 Compliance

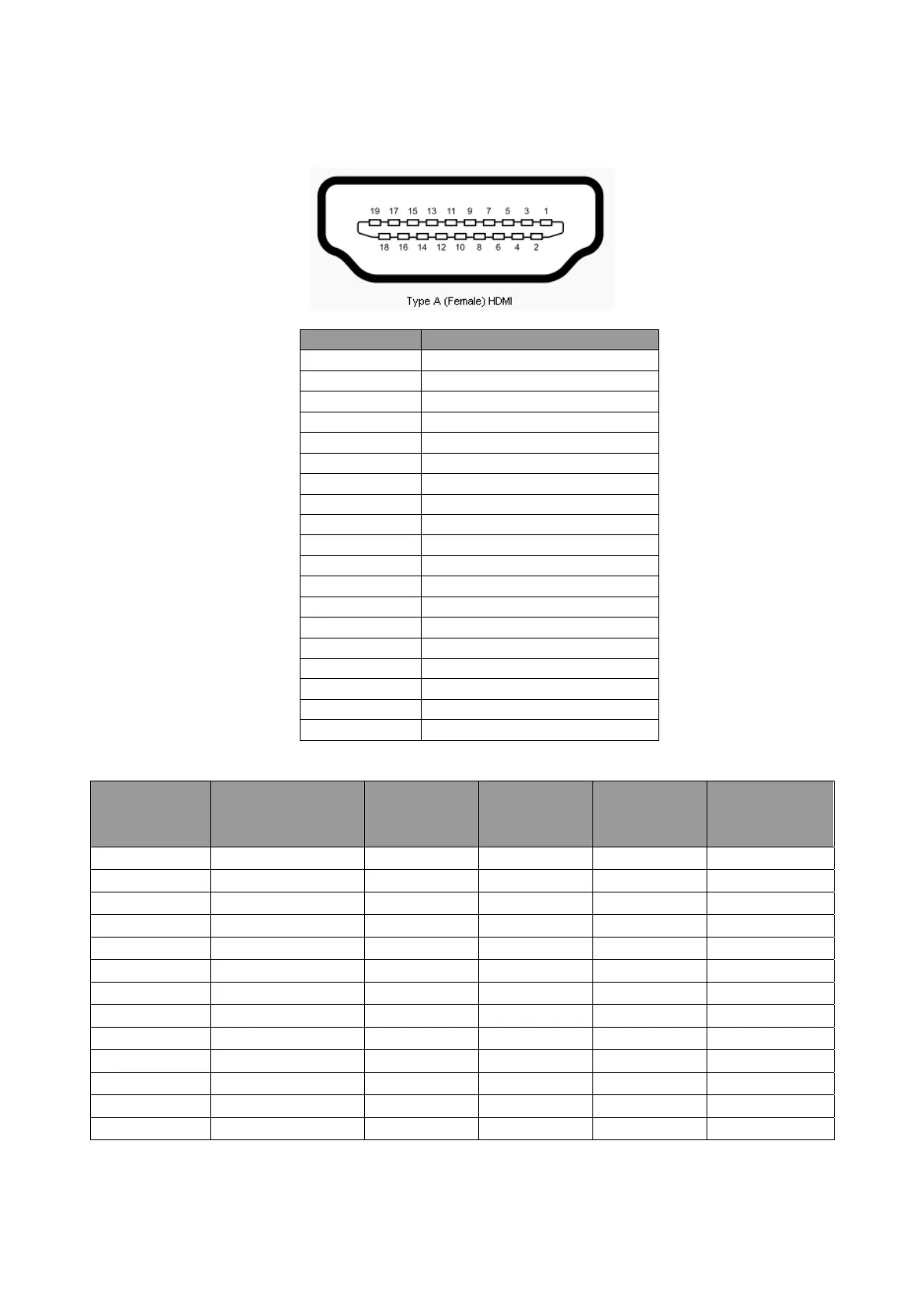

(1) Pin definition
Pin Signal
1 TMDS Data2+
2 TMDS Data2 Shield
3 TMDS Data2
–
4 TMDS Data1+
5 TMDS Data1 Shield
6 TMDS Data1
–
7 TMDS Data0+
8 TMDS Data0 Shield
9 TMDS Data0
–
10 TMDS Clock+
11 TMDS Clock Shield
12 TMDS Clock
–
13 CEC
14 Reserved (N.C. on device)
15 SCL
16 SDA
17 DDC/CEC Ground
18 +5 V Power (max 50 mA)
19 Hot Plug Detect
(2) Support Video Timings:
Timing Resolution
Horizontal
frequency
(KHz)
Vertical
frequency
(Hz)
Dot Clock
Frequency
(MHz)
Remark
480i 720(1440) x 480 15.73 59.94 27 HDMI onl
y
480p 720 x 480 31.47 59.94 27 HDMI onl
y
576i 720(1440) x 576 15.63 50 27 HDMI/DVI
576p 720 x 576 31.25 50 27 HDMI/DVI
720/50p 1280 x 720 37.5 50 74.25 HDMI/DVI
720/60p 1280 x 720 45.00 60 74.25 HDMI/DVI
1080/50i 1920 x 1080 28.13 50 74.25 HDMI/DVI
1080/60i 1920 x 1080 33.75 60 74.25 HDMI/DVI
1080/50P 1920 x 1080 56.25 50 148.5 HDMI/DVI
1080/60P 1920 x 1080 67.5 60 148.5 HDMI/DVI
1080/24P 1920 x 1080 27.00 24 74.25 HDMI/DVI
1080/25P 1920 x 1080 28.125 25 74.25 HDMI/DVI
1080/30P 1920 x 1080 33.75 30 74.25 HDMI/DVI
