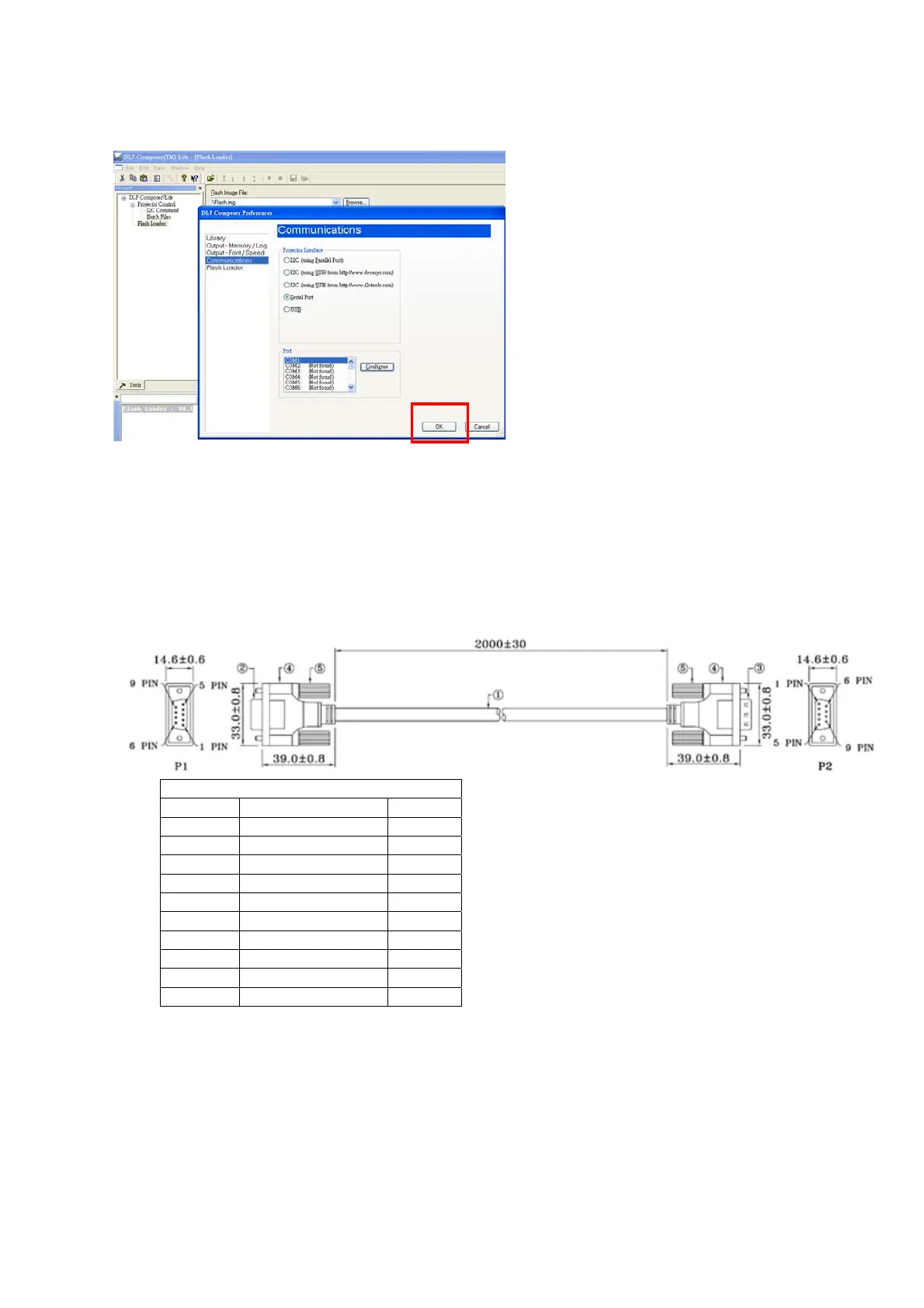

BenQ MX613ST - Page 51

51
4. Click ”OK”.
ii. Download Procedure
z How to download
Hardware required
1. Standard RS232 Download cable (SPEC as below)
D-sub 9-pin Female for Both terminals
WIRE ARRANGEMENT
P1 COLOR P2
1 BLACK 1
2 BROWN 3
3 RED 2
4 ORANGE 4
5 YELLOW 5
6 GREEN 6
7 BLUE 8
8 PURPLE 7
9 GRAY 9
CASE DRAIN WIRE CASE
2. Personal computer or laptop computer
Software required
1. DLP Composer Lite program
2. New version FW
Download procedure
1. Connect RS-232 cable to PC and projector
