77

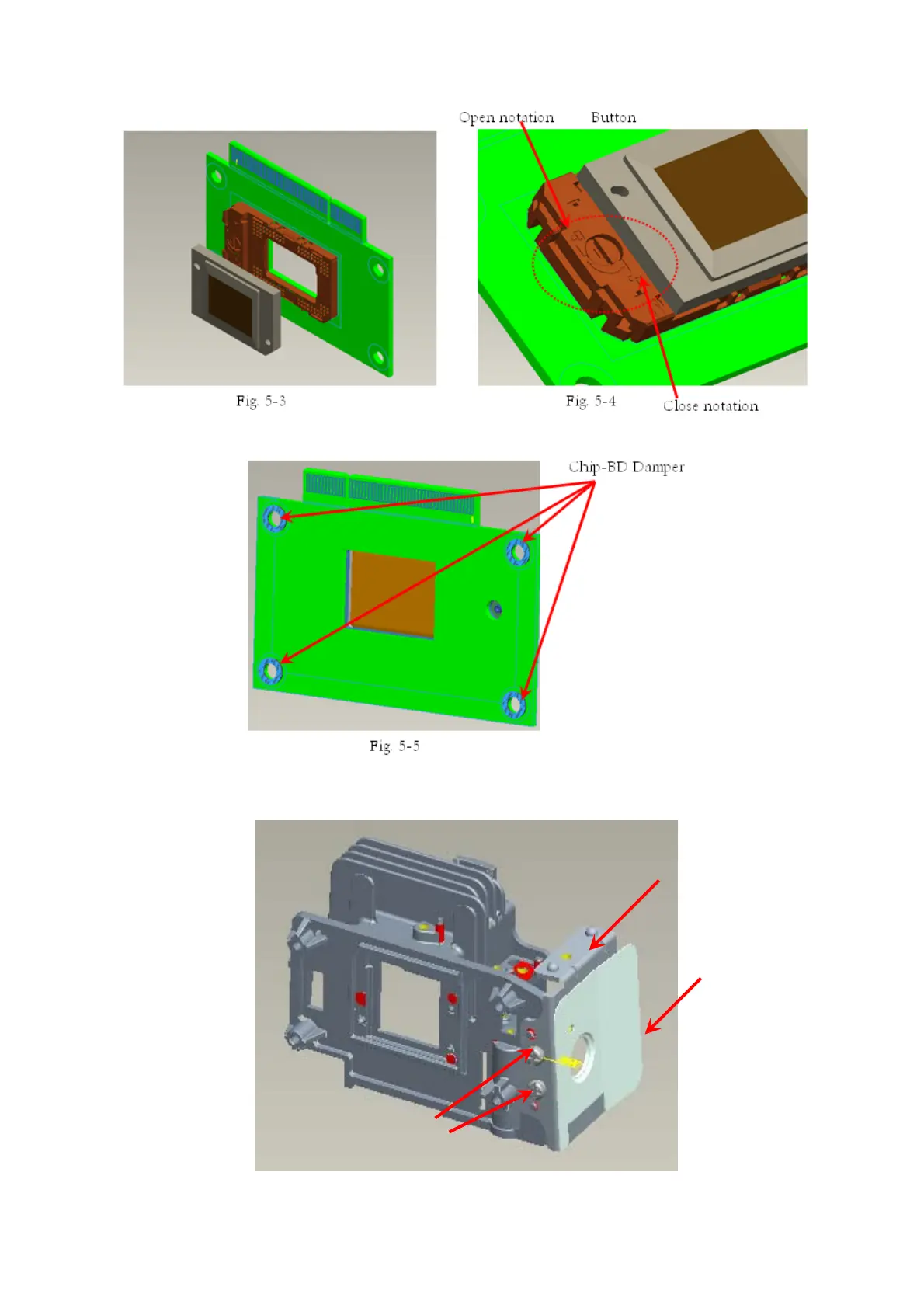

5.4 Place Damper on the surface of Chip-BD Fig. 5-5.
6. Assembly Optical Engine:
6.1 Assemble “BKT Link Lamp & CW shield” on “DMD HSG” and then lock with screws well (Fig.
6-1).
Fig. 6-1
Screws
Shield CW
BKT Link Lamp
