BenQ MX854UST - Connections

Connection22
Connection
When connecting a signal source to the projector, be sure to:
1. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.
In the connections shown below, some cables may not be included with the projector (see
"Shipping contents" on page 8). They are commercially available from electronics stores.
Many notebooks do not turn on their external video ports when connected to a projector.
Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a
function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press
FN and the labeled function key simultaneously. Refer to your notebook's documentation to find
your notebook's key combination.

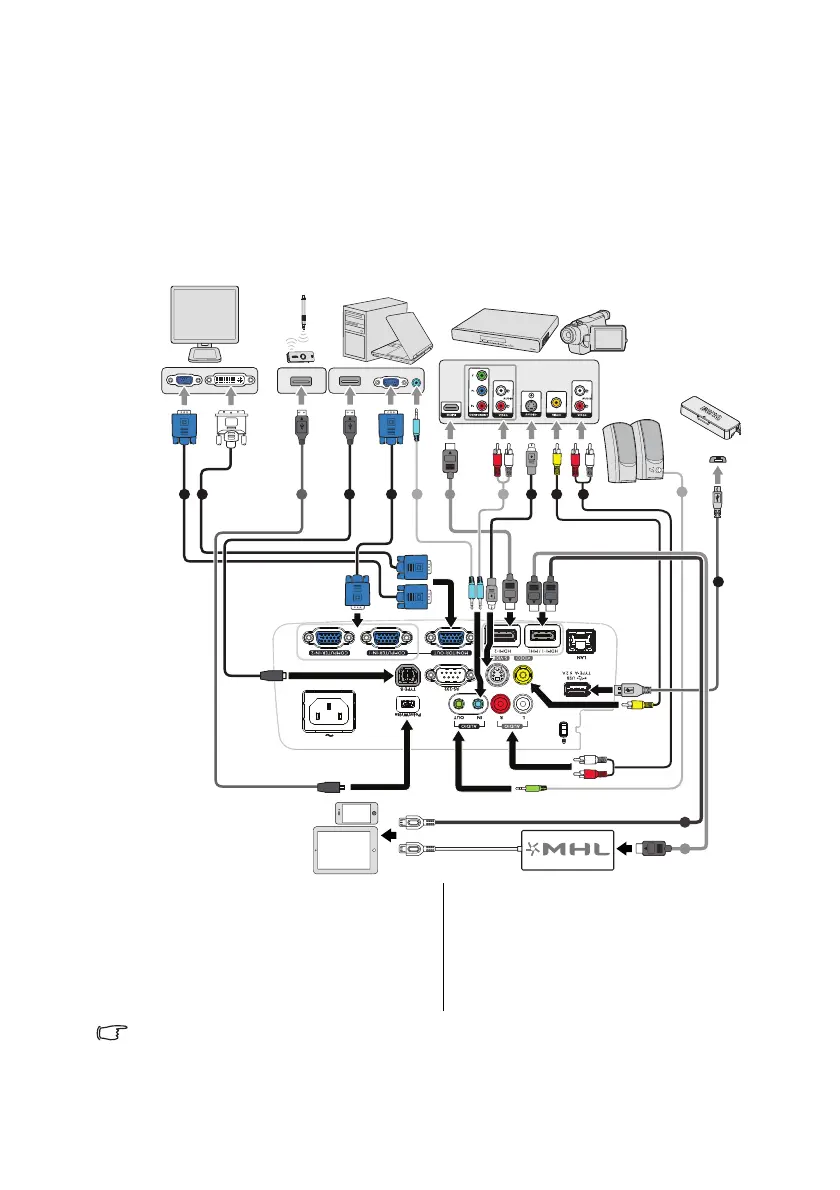

1. VGA cable
2. VGA to DVI-A cable
3. USB cable (B to A type)
4. HDMI cable
5. S-Video cable
6. Video cable
7. Audio cable
8. Audio L/R cable
9. USB cable (mini B to A type)
10. USB cable (A to mini B type) connect
to Laser Touch Module
11. HDMI-Micro USB cable
4
7
65
7
8
10
13921
7
11
4
Notebook or desktop computer
A/V device
Speakers
Monitor
(VGA) (DVI)or
PointWrite kit
Touch
module
Smartphone or
tablet
