BenQ MX854UST - Projector Exterior Views

Introduction 9

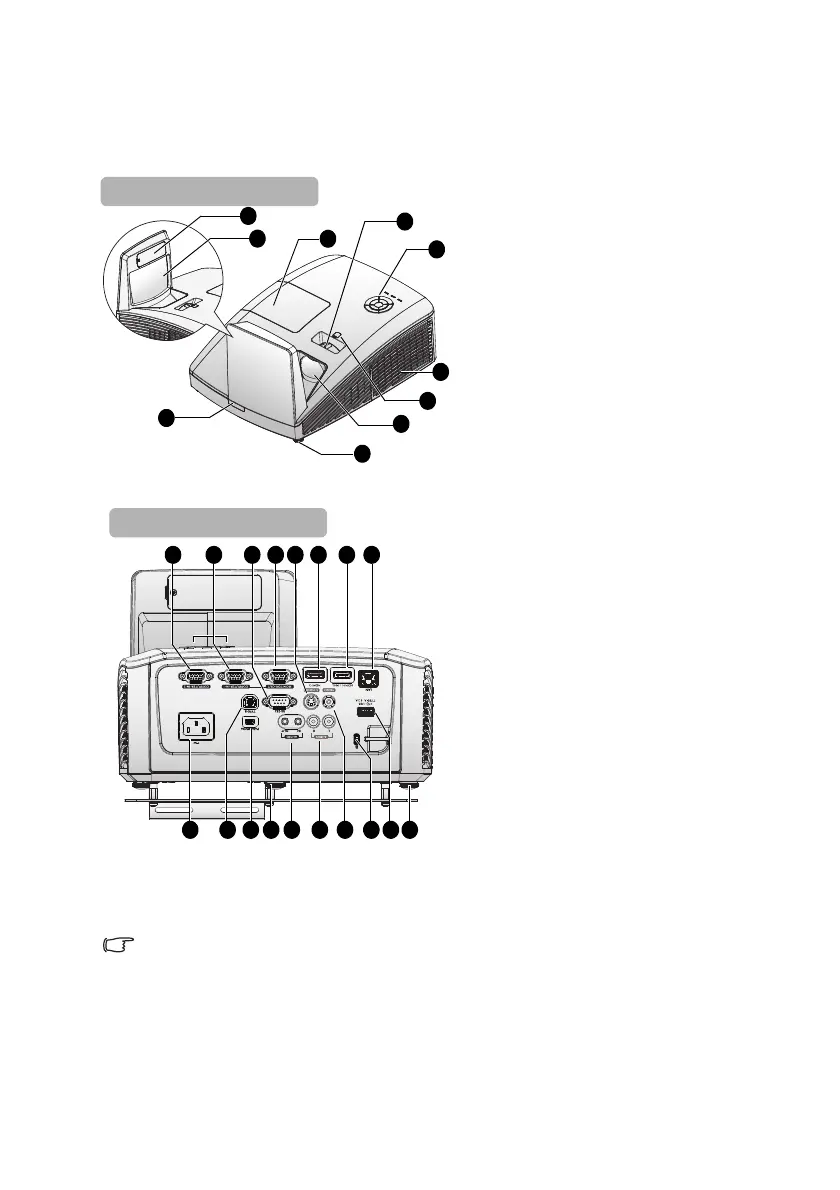

Projector exterior view
1. PointWrite dummy cover
(Optional PointWrite kit)
2. Mirror
3. Lamp compartment cover
4. Focus ring
5. External control panel
(See "Projector" on page 11 for
details.)
6. Vent (cool air intake)
7. Lens shift (No available in
MH856UST)
8. Projection lens
9. Front adjuster foot
10. Front IR remote sensor
11. COMPUTRR-2 input jack
12. COMPUTER-1 input jack
13. RS-232 control port
14. RGB signal output jack
15. S-VIDEO input jack
16. HDMI-2 input jack
17. HDMI-1 / MHL input jack
18. RJ45 LAN input jack
19. Front adjuster foot
20. USB Type A port
(Power for Touch kit)
21. Kensington anti-theft lock slot
22. VIDEO input jack
23. Audio (L/R) input jack
24. Audio input/output jack
25. Rear adjuster foot
26. PointWrite port (PointWrite kit is
required)
27. USB Type B port (For service
download)
28. AC power cord inlet
For setting the PointWrite kit on projector, Please find PointWrite manaual in the kit box
you purchase.
9
Front/upper side
2
6
5
8
4
3
1
7
10
Rear/lower side
16 18
2128
13 1711 12 14
22 192427 2526 23
15
20
