BenQ SP830 - Projector Exterior View

Introduction 11

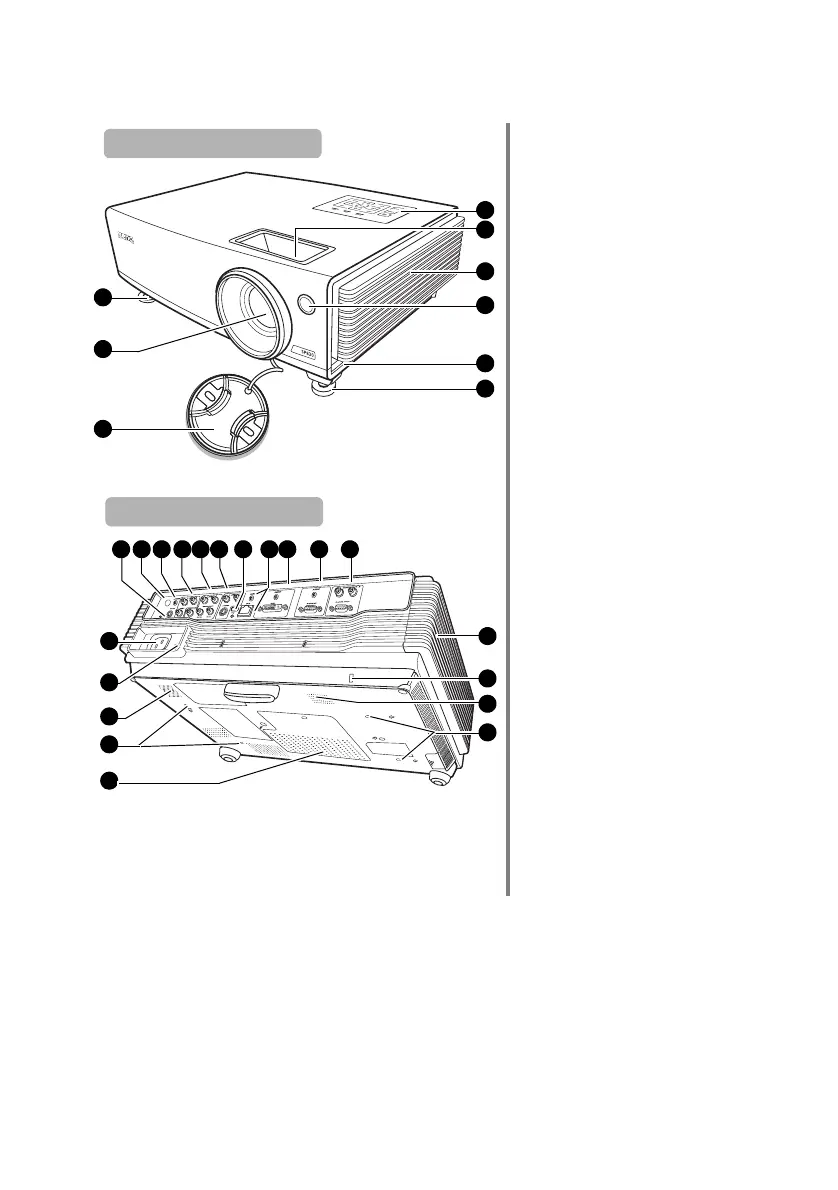

Projector exterior view
1. Quick-release foot
2. Projection lens
3. Lens cap
4. External control panel
(See pages 12-13 for details.)
5. Focus ring and Zoom ring
6. Vent (cool air intake)
7. Front IR remote sensor
8. Quick-release button
9. AC power cord inlet
10. Main power switch
11. Speaker grill
12. Ceiling mounting holes
13. Lamp cover
14. RS232 control port
15. Rear IR remote sensor
16. Wired remote control port
17. Video/Audio (L/R) input
sockets
18. Component video (YPbPr/
YCbCr) signal/Audio (L/R)
input sockets
19. S-Video/Audio (L/R) input
sockets
20. USB socket
21. RJ-45/Audio input sockets
(only for using with the
optional Signal Shuttle
module)
22. DVI-I signal/PC Audio input
sockets
23. D-Sub (RGB) signal/PC Audio
input sockets
24. D-Sub (RGB) signal/Audio (L/
R) output sockets
25. Vent (heated air exhaust)
26. Kensington anti-theft lock slot
