Introduction
English

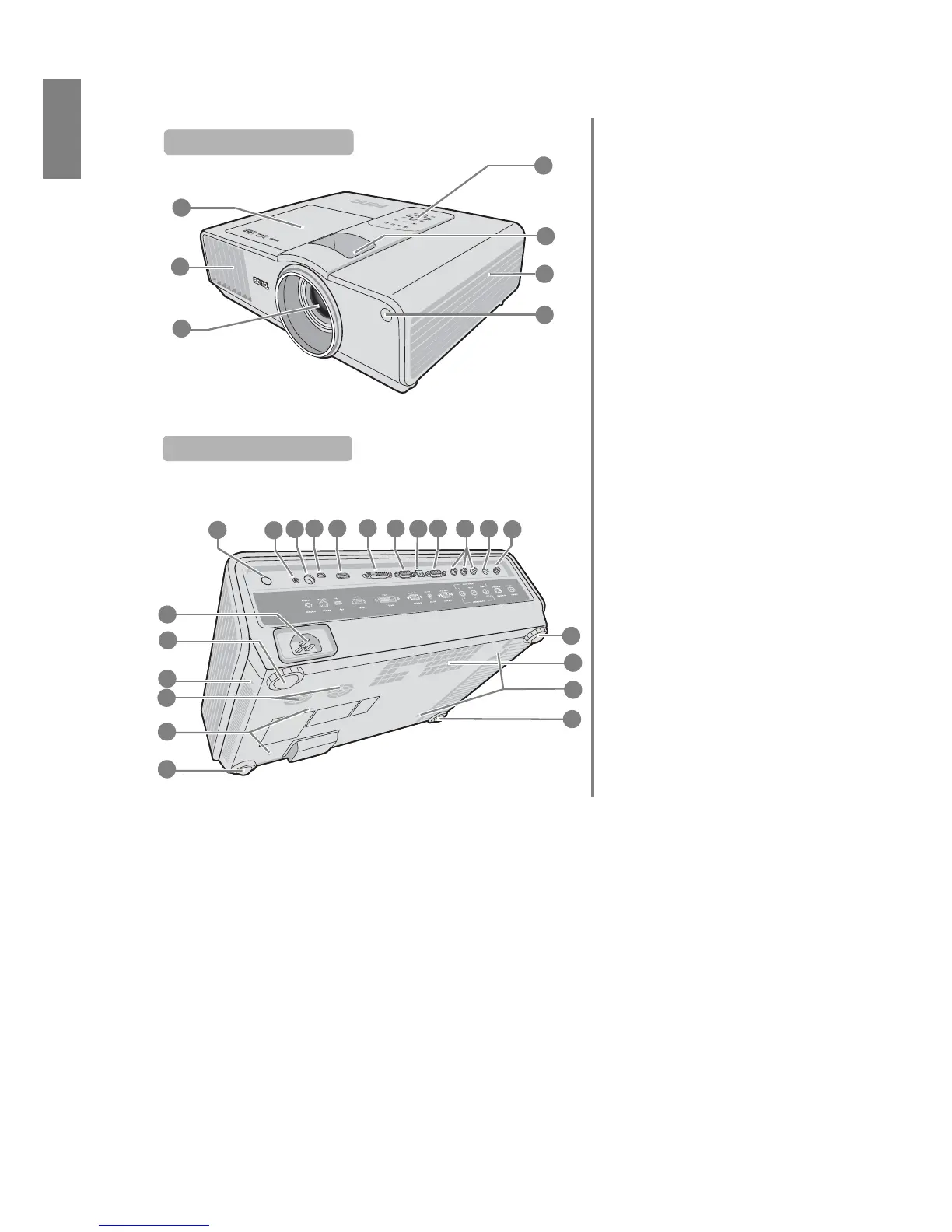

Projector exterior view
1. Lamp cover
2. Vent (heated air exhaust)
3. Projection lens
4. External control panel
(See page 9 for details.)
5. Focus ring and Zoom ring
(See page 9 for details.)
6. Vent (cool air intake)
7. Front IR remote sensor
8. AC power cord inlet
9. Adjuster feet
10. Kensington anti-theft lock slot
11. Speaker grill
12. Ceiling mount holes
13. Rear IR remote sensor
14. Audio signal input socket
15. RS232 control port
16. USB socket
17. HDMI port
18. DVI-D signal input socket
19. RGB (PC)/Component Video
(YPbPr/ YCbCr) signal input
socket
20. DC 12V output terminal
Used to trigger external devices
such as an electric screen or light
control, etc. Consult your dealer
for how to connect these devices.
21. RGB signal output socket
22. Component Video (YPbPr/
YCbCr) signal input sockets
23. S-Video signal input socket
24. Composite Video signal input
socket
25. Vent (heated air exhaust)
Front/upper side
4
5
6
1
2
3
7
Rear/lower side
See "Connection" on page 16 for connection details.
