4
Communication setting
Baud rate select: 9600bps (fixed)/ Data bits: 8 bits (fixed)
Parity: None (fixed)/ Stop Bits: 1(fixed)
Command message reference
PC sends to Monitor command packet followed by "CR". Every time PC sends control command to the
Monitor, the Monitor shall response as follows:
1. If the message is received correctly, it will send "+" (02Bh) followed by "CR" (00Dh).
2. If the message is received incorrectly, it will send "-" (02Dh) followed by "CR" (00Dh).
Connections and communication settings
Choose one of the connections and set up properly before RS232 control.

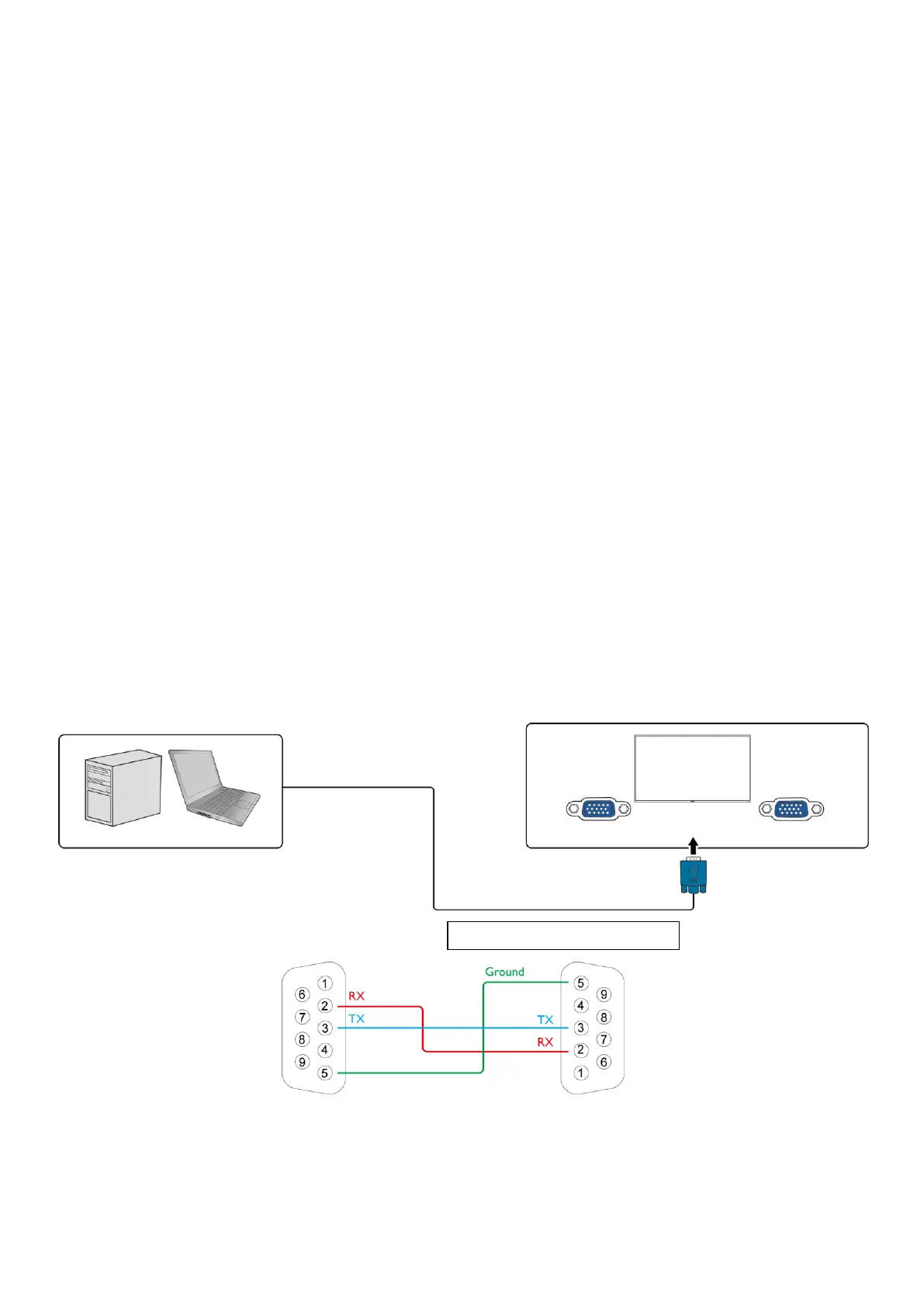

RS232 serial port connection
Communication cable (straight)
To Next Page
