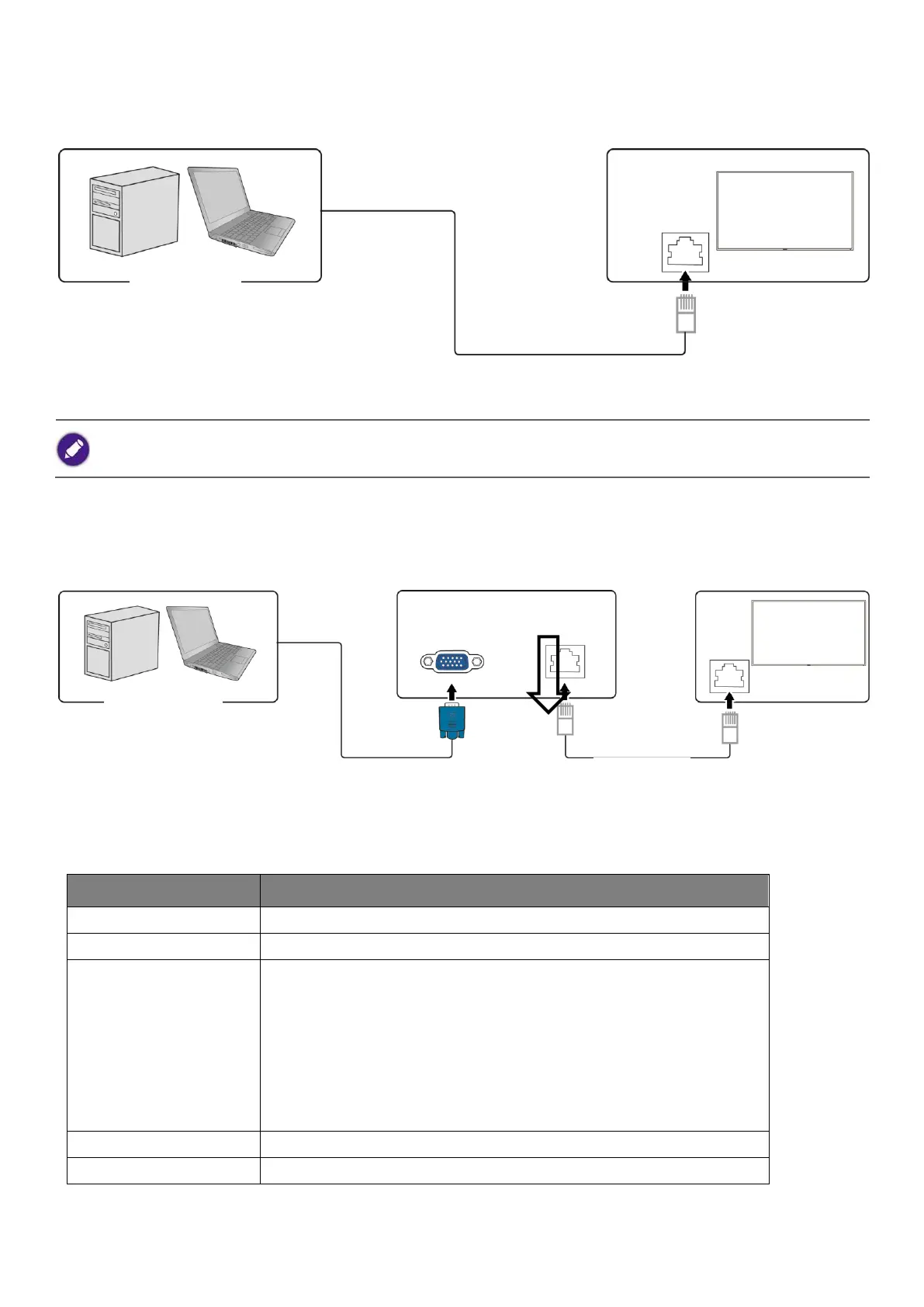

RS232 via LAN
Find the Wired LAN IP address of the connected display from the OSD menu and make sure the display and the computer
are within the same network.
IP Protocol Port: 4660
RS232 via HDBaseT
Protocol Command Description
Total Bytes of Message excluding "CR"
Identification for each of display
Identify command type, "s"
(0x73h): Set Command
"g" (0x67h): Get Command
"r" (0x72h): Reply Command
"+" (0x2Bh): Valid command Reply
"-" (0x2Dh): Invalid command Reply
Function command code: One byte ASCII code
Three bytes ASCII that defines the value
HDBaseT compatible device
To Next Page
