BENSON 30 - Page 15

Doc No. 20-45-159 Page 15 of 60
Dimensions for Vertical Cabinet Heaters (all dims in mm)
Model 30 40 60 85 120 135 180 205 235 300 375
A
Unit height
1650 1650 1900 1900 2025 2025 2120 2120 2110 2110 2667
B
Unit width
660 660 660 660 790 790 1000 1000 1100 110 0 1244
C
Unit depth
662 662 925 925 1085 1085 1282 1282 1550 1550 1550
D
Flue outlet ctr
95 95 170 170 170 170 213 213 195 195 203
E
Flue Spigot Ø
125 125 150 175 175 175 200 200 225 225 250
F
Stack Box depth
250 250 320 320 327 327 394 394 380 380 355
G
Burner depth
295 295 346 346 389 389 389 508 508 508 580
H
Nozzle outlet width
280 280 280 280 305 305 355 355 406 406 474
J
J1
Nozzle height Std
Nozzle height Ext
240
n/a
300
n/a
300
n/a
330
660
360
720
360
720
410
815
410
815
460
915
460
915
613
1115
K
Stack Box height
1500 1500 1778 1778 1865 1865 1980 1980 1965 1965 2610
L
Burner ctr/l height
835 835 984 984 971 971 1068 1068 1054 1054 1372
M
Outlet Spigot depth
570 570 770 770 944 944 1120 1120 1452 1452 1365
N
Outlet Spigot width
570 570 634 634 711 711 890 890 1002 1002 1086
O
Nozzles Spigot Ø
240 (2) 240 (2) 240 (2) 240 (3) 280 (3) 280 (4) 320 (4) 320 (4) 370 (4) 370 (4) 370 (4)

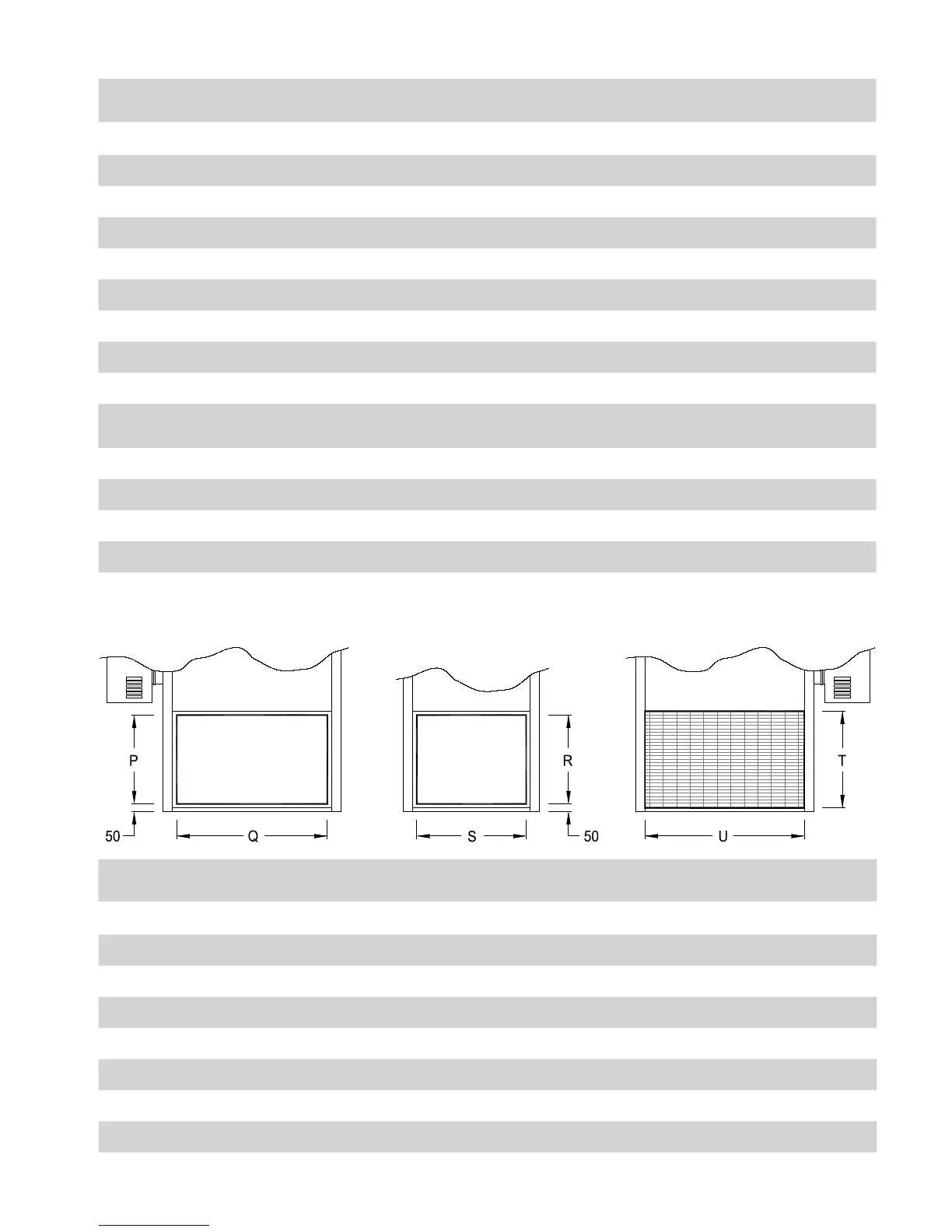

Dimensions of Return Air Spigots (all dims in mm)
Model 30 40 60 85 120 135 180 205 235 300 375
P
Side height
348 348 427 427 642 642 691 391 654 654 796
Q
Side width
522 522 702 702 904 904 1077 1077 1145 1145 1150
R
Rear height
445 445 550 550 642 642 896 896 654 354 n/a
S
Rear width
620 620 520 520 687 687 691 691 935 935 n/a
T
Filterbox height
420 420 600 600 702 702 765 765 720 720 860
U
Filterbox width
660 660 800 800 990 990 1165 1165 1245 1245 1530
V
Filterbox depth
300 300 300 300 300 300 300 300 450 450 450
Side Inlet Spigot (L/H or R/H) Rear Inlet Spigot Side Inlet inc Filter box (L/H or R/H)
