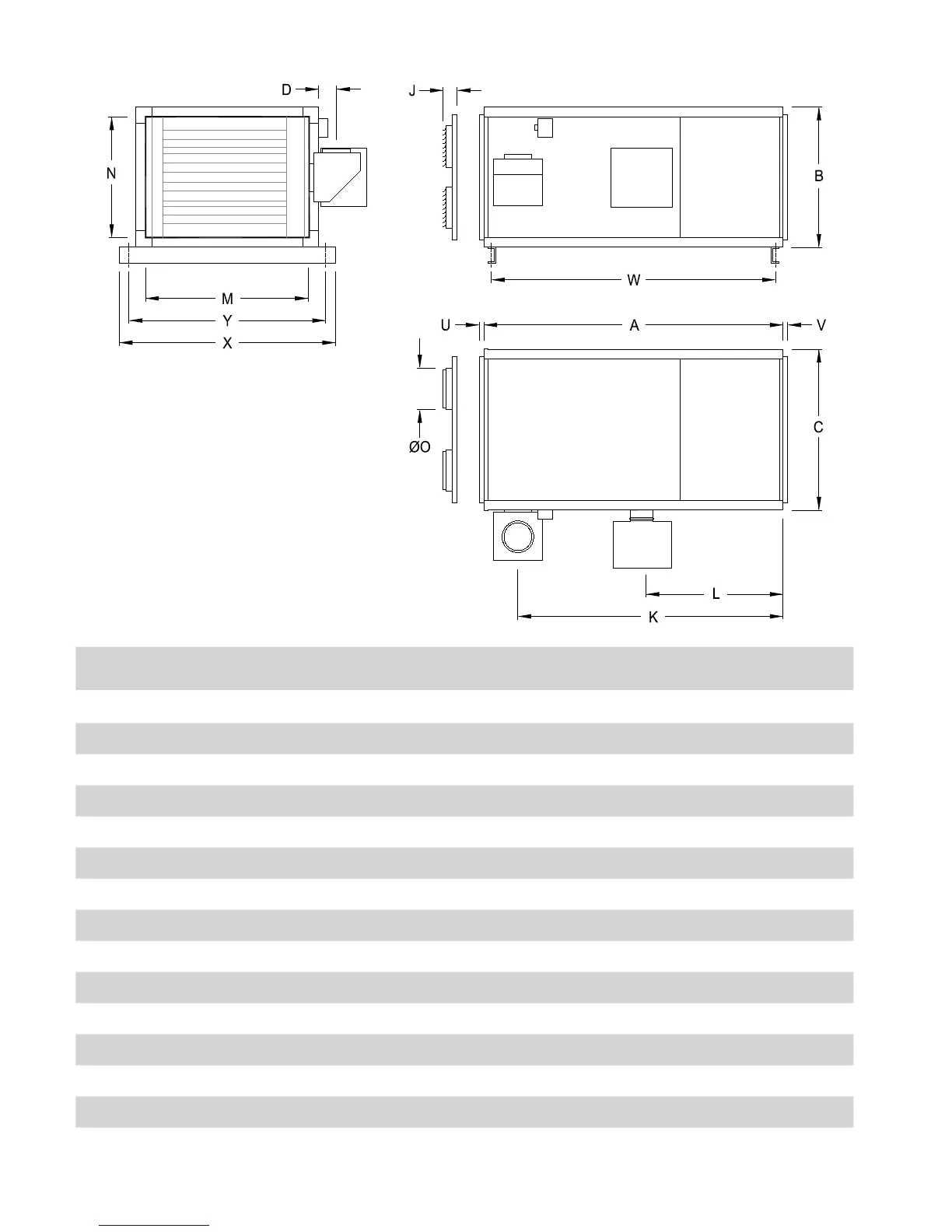

Dimensions for Horizontal Cabinet Heaters (all dims in mm)
Model 85 135 205 300 375
A
Unit length
1865 1960 2057 2076 2667
B
Unit height
660 790 1000 1100 1244
C
Unit width
925 1085 1282 1550 1550
D
Flue outlet ctr to front
170 170 213 195 203
J
Outlet nozzle width
160 280 366 320 320
K
Flue outlet ctr/l to end
1660 1761 1858 1823 2426
L
Burner ctr/l to end
984 971 1068 1054 1372
M
Outlet Spigot width
770 944 1120 1452 1365
N
Outlet Spigot height
634 711 890 1002 1086
U
Outlet Flange depth
30 30 30 30 30
V
Inlet Flange depth
50 50 50 50 50
W
Feet centres length
1806 1895 1992 2020 2612
X
Feet width
1157 1365 1565 1826 1826
Y
Feet centres width
1081 1289 1489 1750 1750
