BENZING M1 User Manual

BENZING M1 – Fancier
SYSTEM
12 HB_BENZING-M1_ZUECHTER-E_13.doc
GANTNER Pigeon Systems GmbH

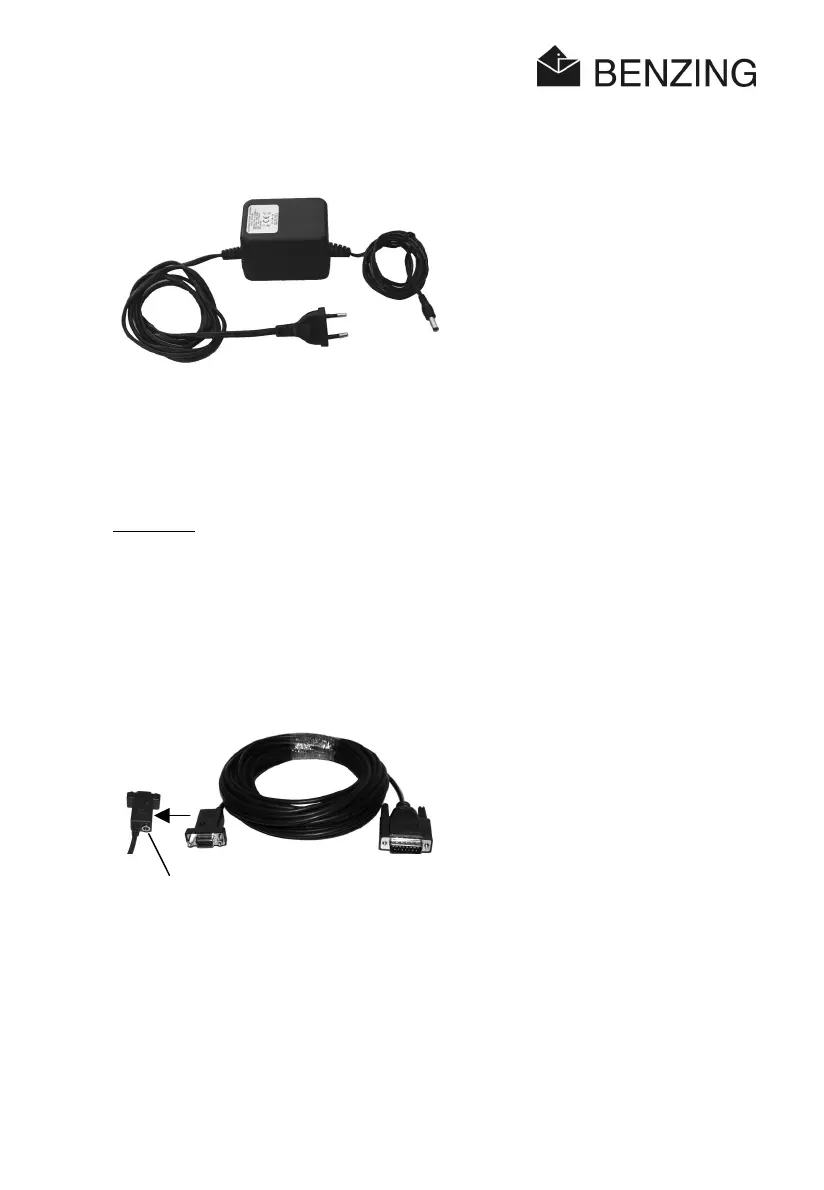

2.4 Power Supply Unit (1.5 A)
The power supply unit is used to supply the BENZING M1 and the lazer loft antennae (PLB)
with power. It is connected with the corresponding socket on the plug of the antenna
connection cable (see also 3.2).
Note: If the BENZING M1 is supplied with power by means of the connection cable a
maximum of
three loft antennae lazer 4 (PLB 765), six lazer 3 (PLB 475) or ten lazer 1 (PLB 170)
can be used per power supply unit.
2.5 Connection Cable for Lazer Loft Antennae (PLB)
This cable, provided in a length of 10 m (30 ft), connects the lazer loft antennae to the
BENZING M1. Moreover, the power supply unit is connected to this cable in order to supply
the lazer loft antennae and the BENZING M1 with power.
Back View of the
DB-9 Antenna Plug
Power Su
pp
l
y
Jac
k

BENZING M1 Specifications

General

Brand	BENZING
Model	M1
Category	Timer
Language	English
