INSTALLATION AND INITIAL OPERATION
HB_BENZING-M1_ZUECHTER-E_13.doc 19
GANTNER Pigeon Systems GmbH

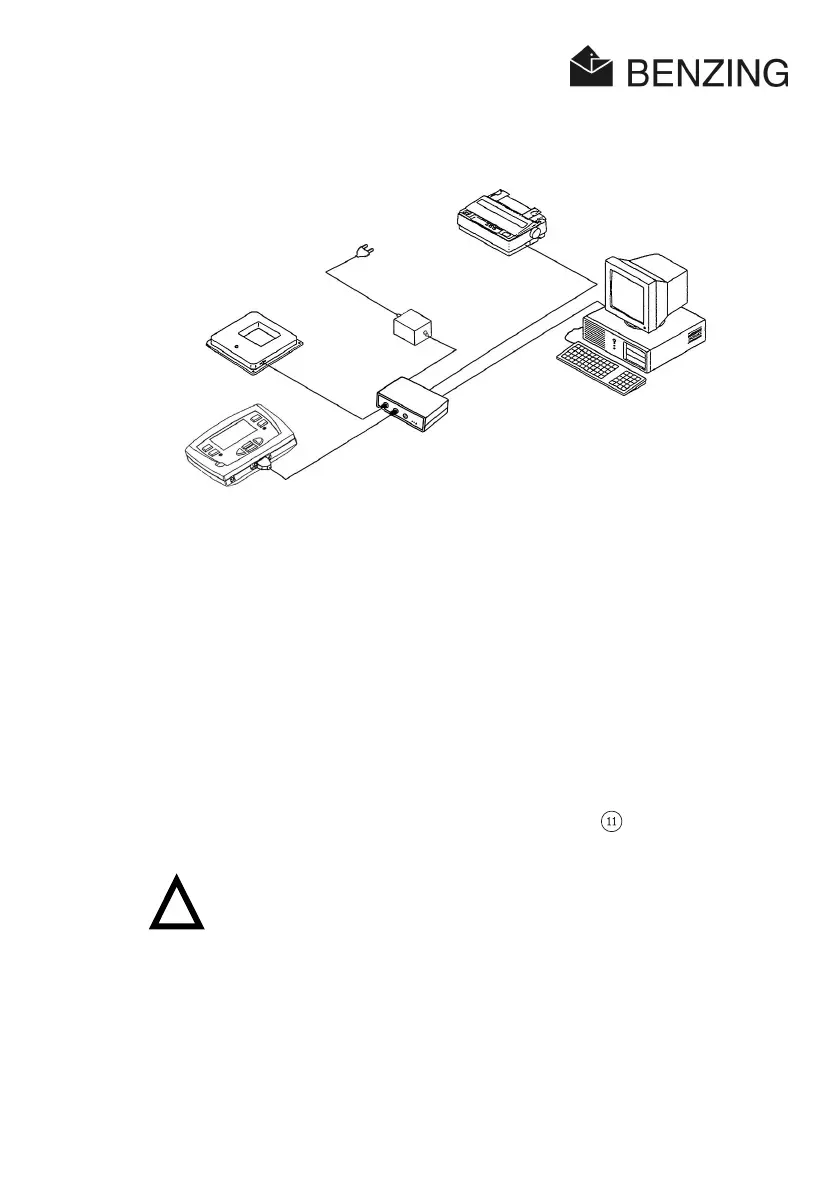

Figure 3.2 - Connection of the BENZING M1 in a Club by using clubPOINT
3.4 Power Supply of the BENZING M1 in the Fancier’s Loft
The power supply of the BENZING M1 can be provided in various ways.
Power Supply via Connection Cable for Lazer Loft Antennae (PLB):
In this case power supply for the BENZING M1 is provided with the DB-9 antenna plug of
the connection cable. See also the figure 3.1.
Socket at the BENZING M1:
The provided power supply unit can be connected to the socket of the BENZING M1 to
supply the BENZING M1 with power.
If you use BENZING M1 with hardware before Version 5 no lazer loft antennae
(PLB) can be used in this case. The power supply to the antennae by means of
the BENZING M1 is impossible.
Power Supply via the BENZING Station:
When using a BENZING Station the station will supply the BENZING M1 with power, as soon
as the BENZING M1 is plugged into the station. The BENZING Station itself is supplied with
power with the power supply unit of the BENZING M1.
BENZING M1
Club Antenna CAN
Power Supply Unit
clubPOINT
Printer
PC
!
