LED surgical lights, single and combination lights CHROMOPHARE
®
E 778, E 668, E 558
Design and function
31
4 Design and function
4.1 Overview
4.1.1 Single lights, classic cardanic (A.C.) / shortened classic cardanic (sA.C.)

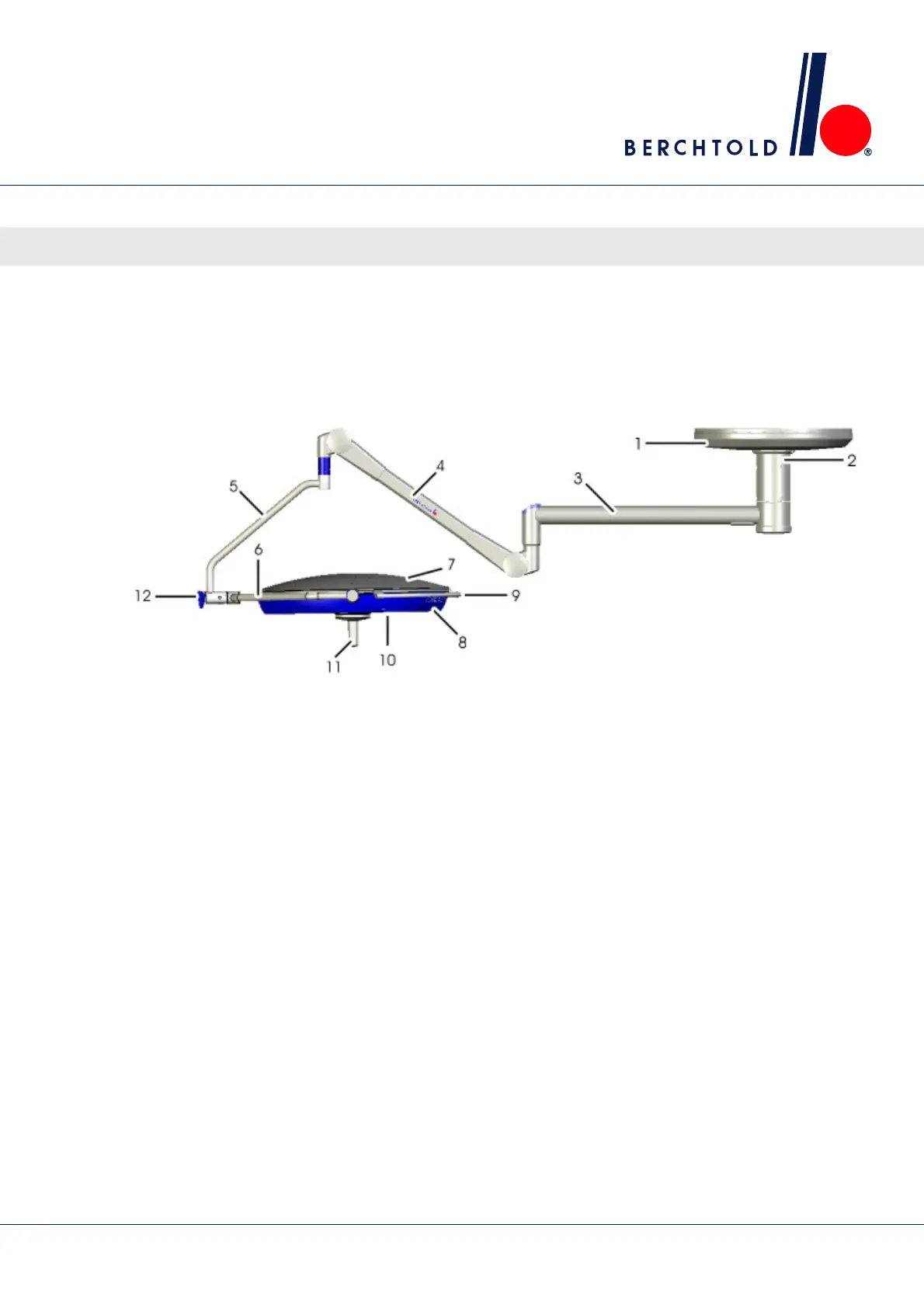

Fig. 2 CHROMOPHARE E 778. E 668 and E 558 single light components, classic cardanic / shortened classic cardanic
(without height adjustment tube)
1 Soffit
2 Ceiling tube ∅ 125 mm
3 Swivel arm
4 Spring arm
5 Vertical gimbal joint
6 Horizontal gimbal joint
7 Lamp housing hood
8 Light frame
9 Rail
10 Light emission lens (facing)
11 Handle assembly
12 Control panel
