4.1.2 Single lights, flat cardanic (N.C.)

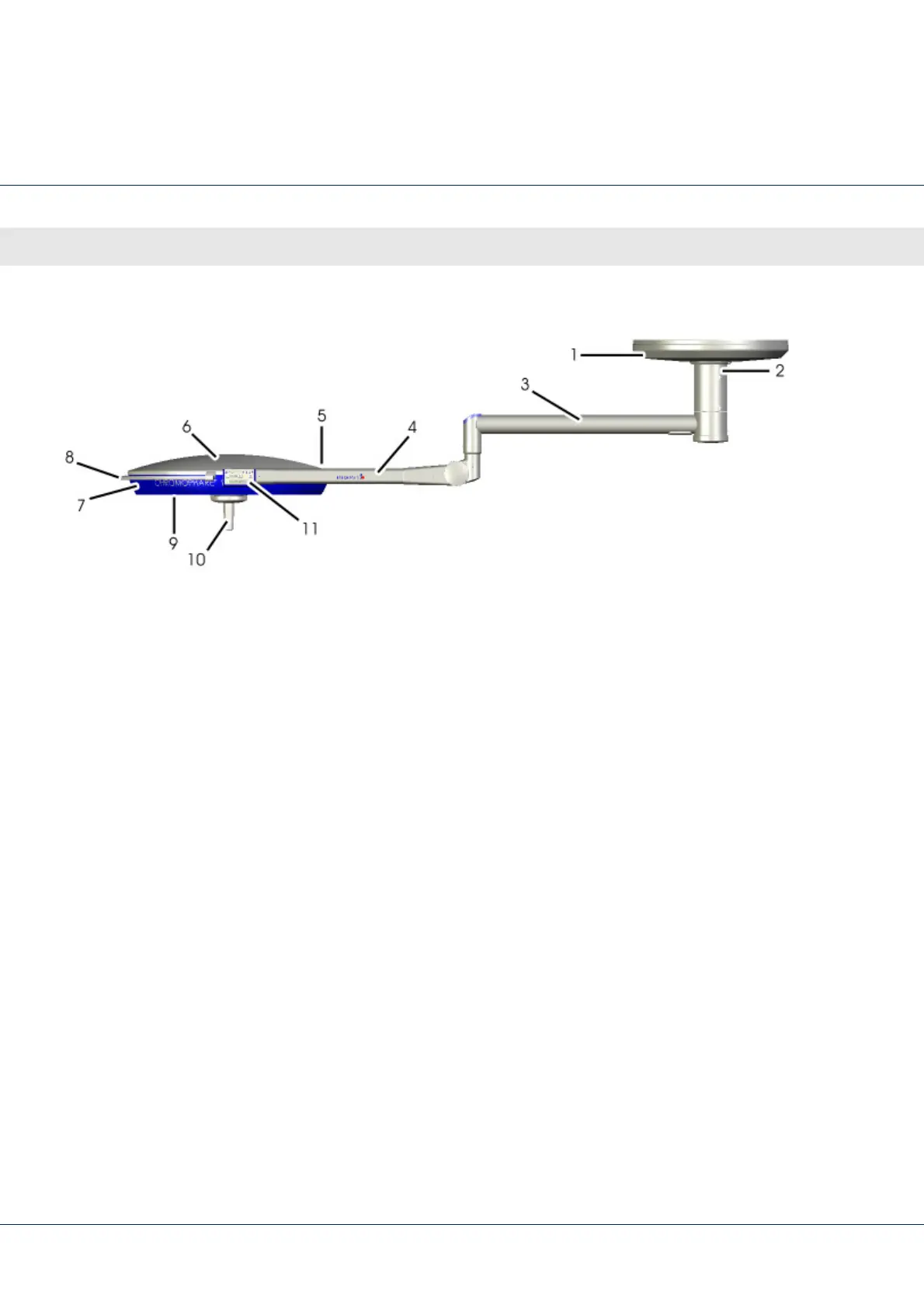

Fig. 3 CHROMOPHARE

E 778, E 668 and E 558 single light components, flat cardanic (without height adjustment tube)
1 Soffit
2 Ceiling tube ∅ 125 mm
3 Swivel arm
4 Spring arm
5 Horizontal gimbal joint
6 Lamp housing hood
7 Light frame
8 Rail
9 Light emission lens (facing)
10 Handle assembly
11 Control panel
