LED surgical lights, single and combination lights CHROMOPHARE
®
E 778, E 668, E 558
Connecting the electricity
65
230 V AC power supply
Use only when 230 V emergency power relays are available on
site.
PEPA NL

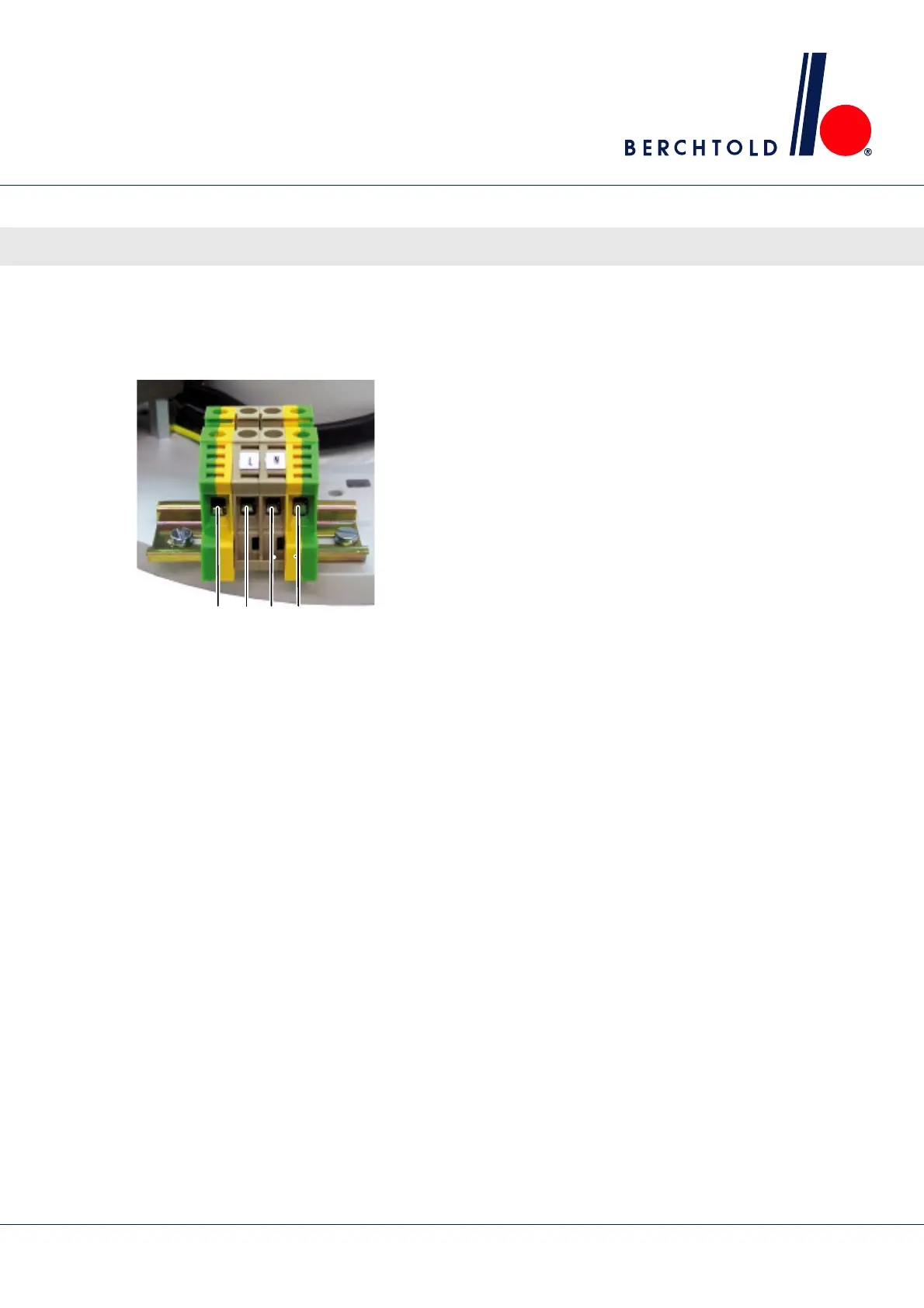

Fig. 32 Power supply terminals
230 V mains terminals
Transformer and filtering board have been mounted to ceiling
tube.
Connect line voltage according to the country
(also see transformer model plate) to terminal pair L and N.
Also connect PE and PA (protective conductor and equipotential
bonding).
Combination lights have additional terminal pairs. Connect them
as well.
