LED surgical lights, single and combination lights CHROMOPHARE
®
E 778, E 668, E 558
Connecting the electricity
68
26 V AC and max. 28 V DC power supply
Use only when emergency power relays are available on site.

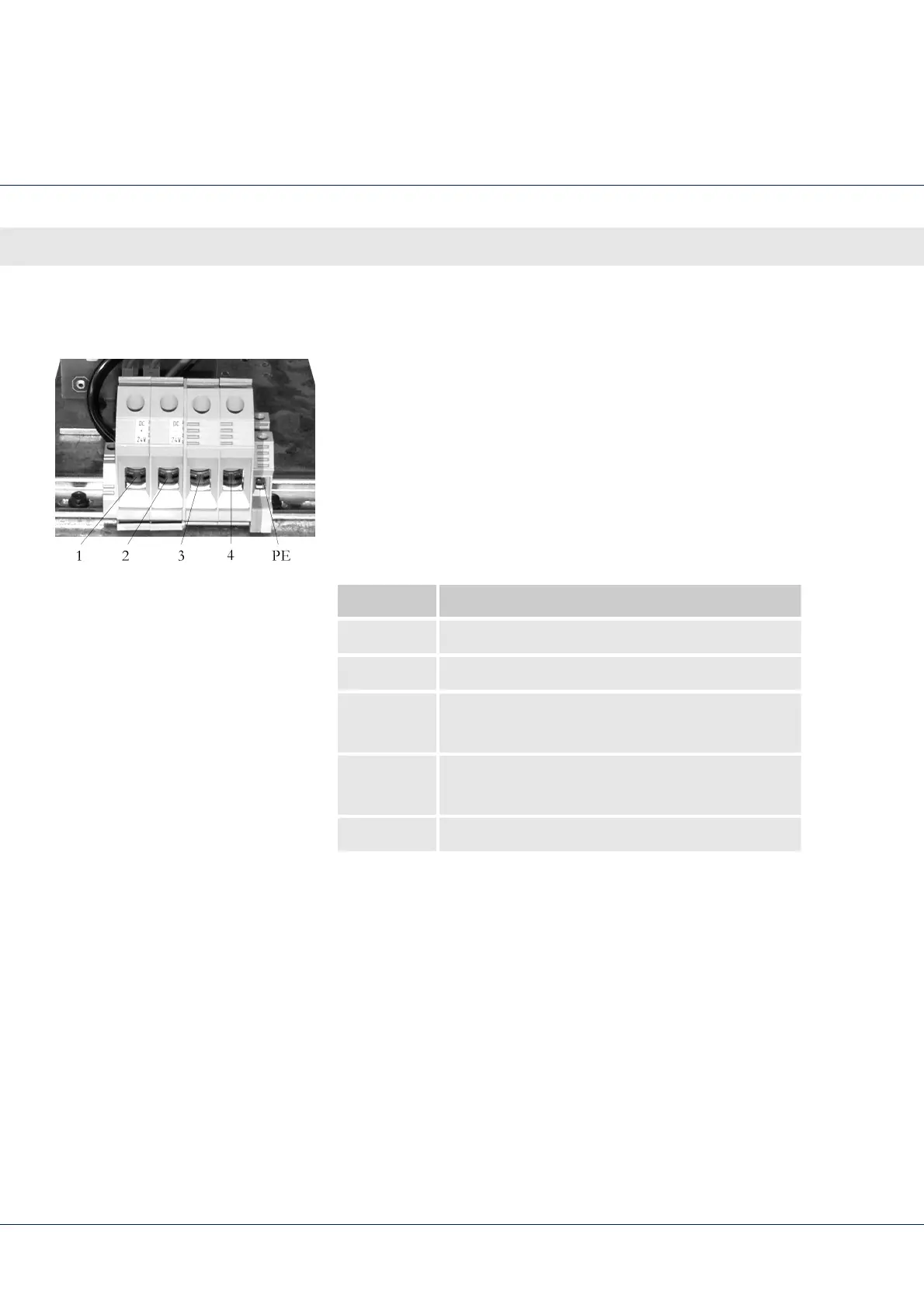

Fig. 35 Mounting plate terminals with
filtering board
Input voltages:
max. 28 volt DC or max. 26 volt AC
Output voltage:
24–28 volt DC to the surgical light
A drop in voltage on the line to the surgical light can be
compensated for only by a corresponding increase in the DC
input voltage.
Terminal Connection
1 Output + 24–28 V DC
2 Output - 24–28 V DC
3 Input max. + 28 V DC
Input max. 26 V AC
4 Input max. - 28 V DC
Input max. 26 V AC
PE Ground
Combination lights require an additional mounting plate with
terminals. Connect them as well.
