Berchtold CHROMOPHARE E 668 - Spring Arm Height Stop (Flat Cardanic)

LED surgical lights, single and combination lights CHROMOPHARE
®
E 778, E 668, E 558
Mechanical adjustments
79
Spring arm height stop (flat cardanic)
Special tools
 Steel pin, ∅ 4 mm
1

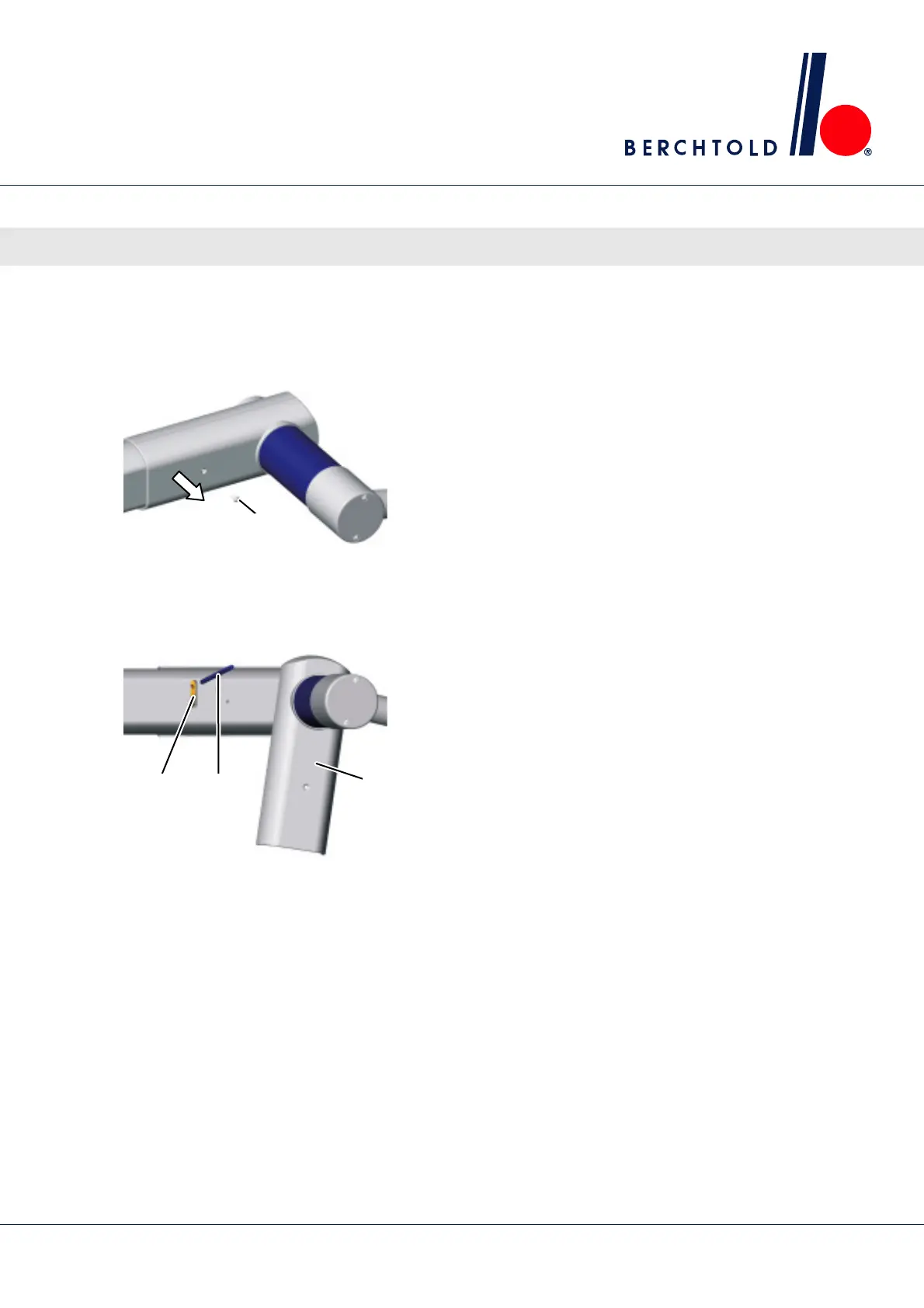

Fig. 49 Cover
1. Remove the mounting screw (1).
2. Pull off the cover in the direction of the arrow.
1 2 3
Fig. 50 Ring nut
3. Turn the cover (1) down as pictured.
4. Position the spring arm so the ring nut (2) appears in the slit.
5. Use the steel pin (3) to rotate the ring nut until the desired
height limit is reached:
 Turn clockwise to reduce the height.
 Turn counterclockwise to increase the height.
6. To reattach the cover, perform steps 1-4 in reverse order.
