14
1.11 Control panel

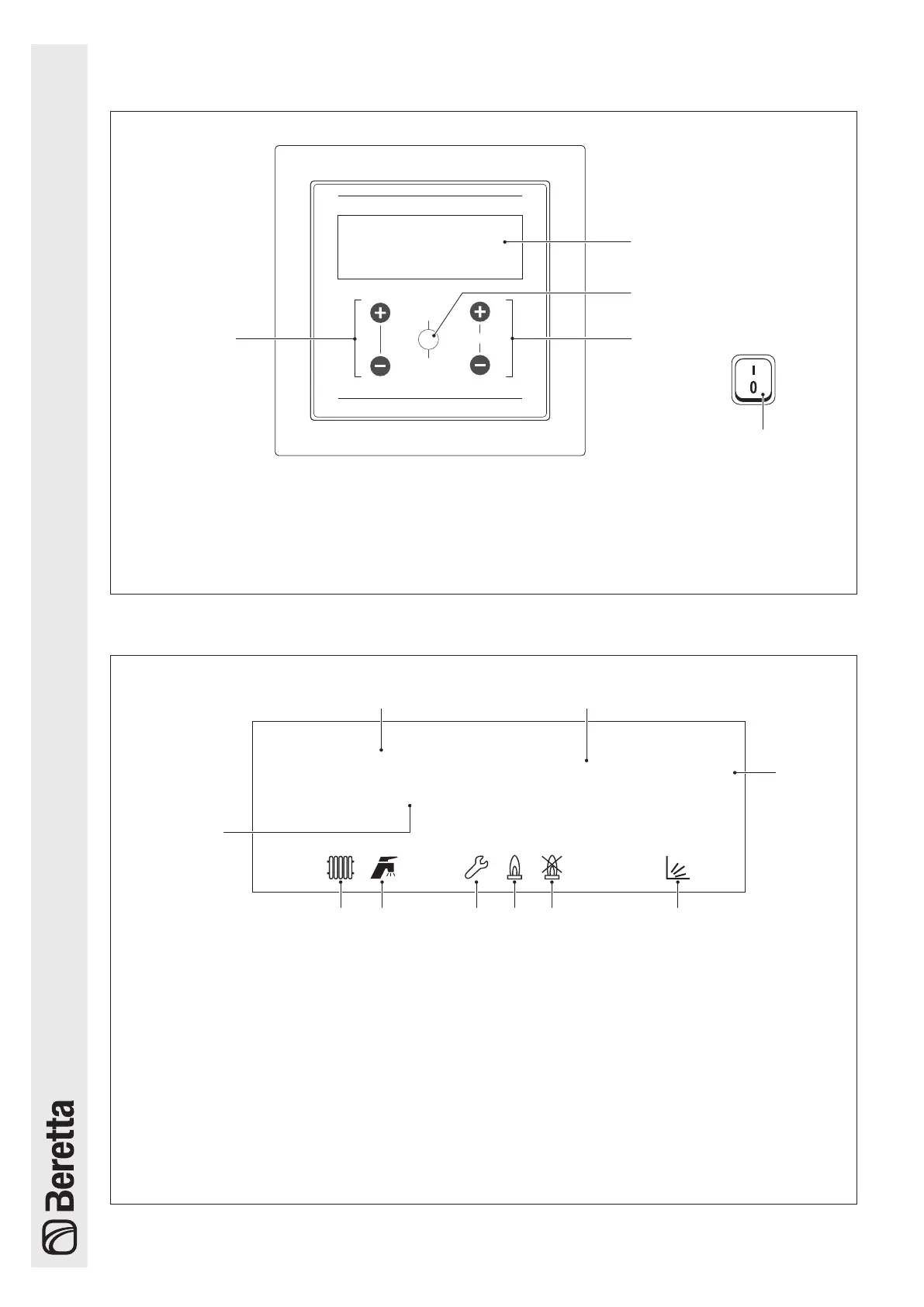

CONTROL PANEL AND SYMBOLS
PROG
RESET
MENU
1
2
4
3
3
1
Rear light display
2
MENU/Reset key: access to the main menu and restore functioning further to a failure lock-out
3
Navigation keys
4
Main switch (located on the lower part of the appliance)
SECONDARY INFORMATION/DISPLAY VISUALISATION
8.8:8.8
8.8:8.8
OUTSIDE
°C
°F
BAR
PSI
7
10
1
Icon displayed when heating mode is enabled. Blinking when there is a heat demand
2
Icon displayed when DHW mode is enabled. Blinking when there is an DHW Demand
3
Icon displayed when entering the "Installer" or "Manufacturer" menu
4
Icon displayed when the appliance burner is on
5
Icon displayed when a Permanent or Temporary error occurs
6
Icon displayed when the climatic mode is on (Par. 2001= 1 o 2)
7
Celsius/Fahrenheit temperature
8
Large numeric display: current value
9
Small numeric display: system pressure display or parameter number
10
Icon displayed when the outdoor probe is connected
