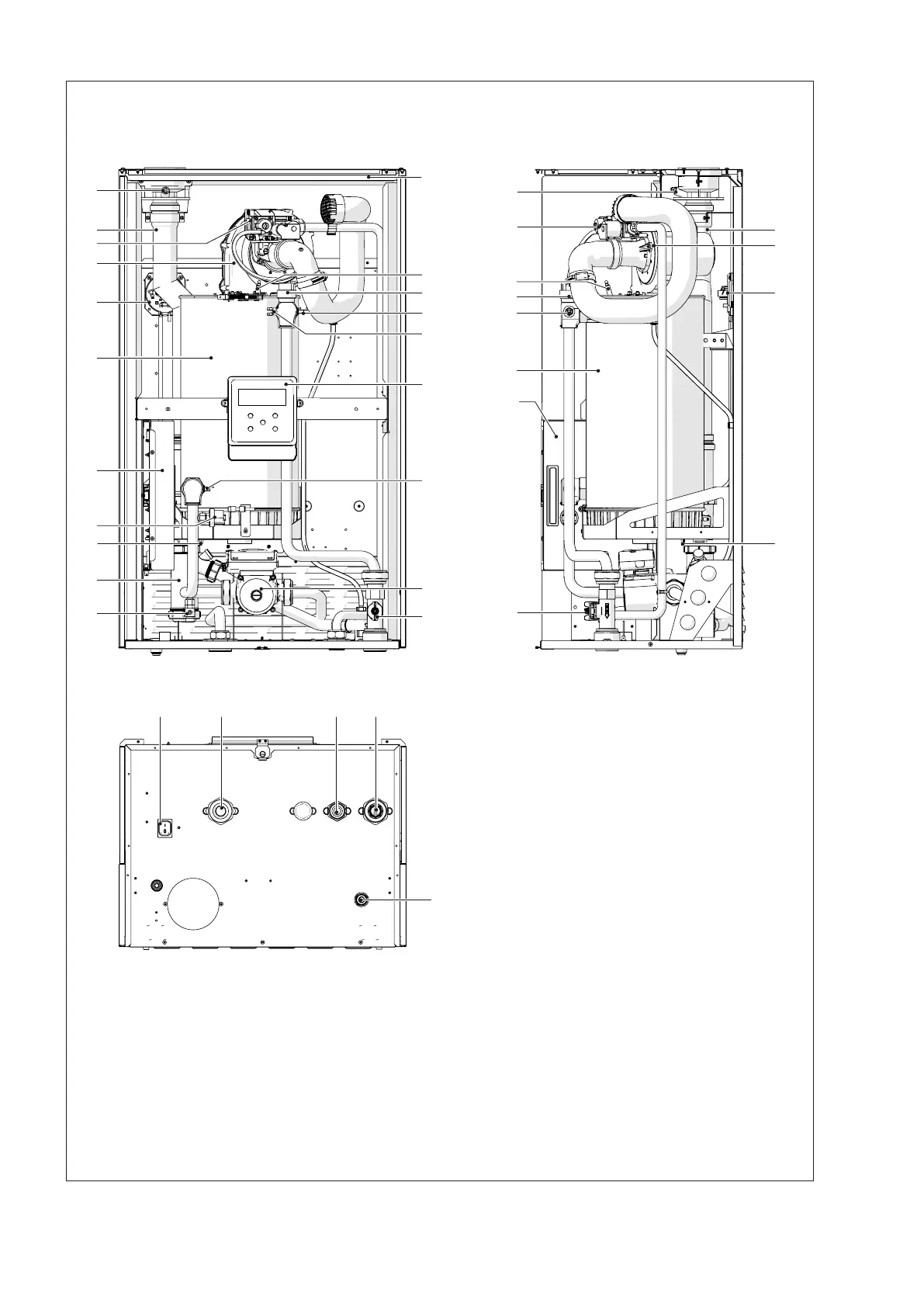

1.6 System layout
POWER MAX 50 P DEP - 50 P
1
3
6
23
22
24
7
17
9
2
5
4
16
13 14 15
1
2
3
4
6
5
7
8
10
9
11
24
21
22
23
25
17
18
19
12
20
1 Flue gas analysis outlet
2 Flue gas exhaust connection
3 Gas valve
4 Fan
5 Flue gases pressure switch
6 Combustion chamber
7 Electrical panel
8 Minimum Pressure Switch set at 0,7 bar
9 Exhaust ue probe
10 Condensate drain siphon
11 Drain cock
12 Main switch
13 Central heating return
14 Gas supply
15 Central heating ow
16 Condensate drain connection
17 Flow-meter
18 Pump
19 Return probe
20 Control panel
21 Safety Thermostat with manual reset by PCB
22 Flow probe
23 Automatic bleed valve
24 Ignition/detection electrode
25 Casing
