2.4.3 Adjustment of the equipment to mains
voltage
The equipment can be adjusted to mains voltages
115 V AC or 230 V AC.
1. Disconnect mains voltage to the WS5-5.
2. Using a screw driver, for example, turn voltage
switch 10 into the desired position:
switch at top: 115 V AC
switch at bottom: 230 V AC.
The position which has been set is indicated on the
switch.
CAUTION
The mains voltage must always be
turned off before any alteration is
made to the position of the voltage
switch.
2.4.4 Connecting of the mains cable
1. Prepare the wires of the mains by fitting boot lace
ferrules at the plug end.
2. Insert the 3 wires into mating plug terminal block
as shown in Figure 2-7 and tighten screws.
3. Join the plug shell halves together.
4. Set the plug to connection 12 and tighten screws.
DANGER
Make sure that the mains voltage is
disconnected before loosening the
mains cable!
230 V
10
11
Voltage Switch
LED Line On

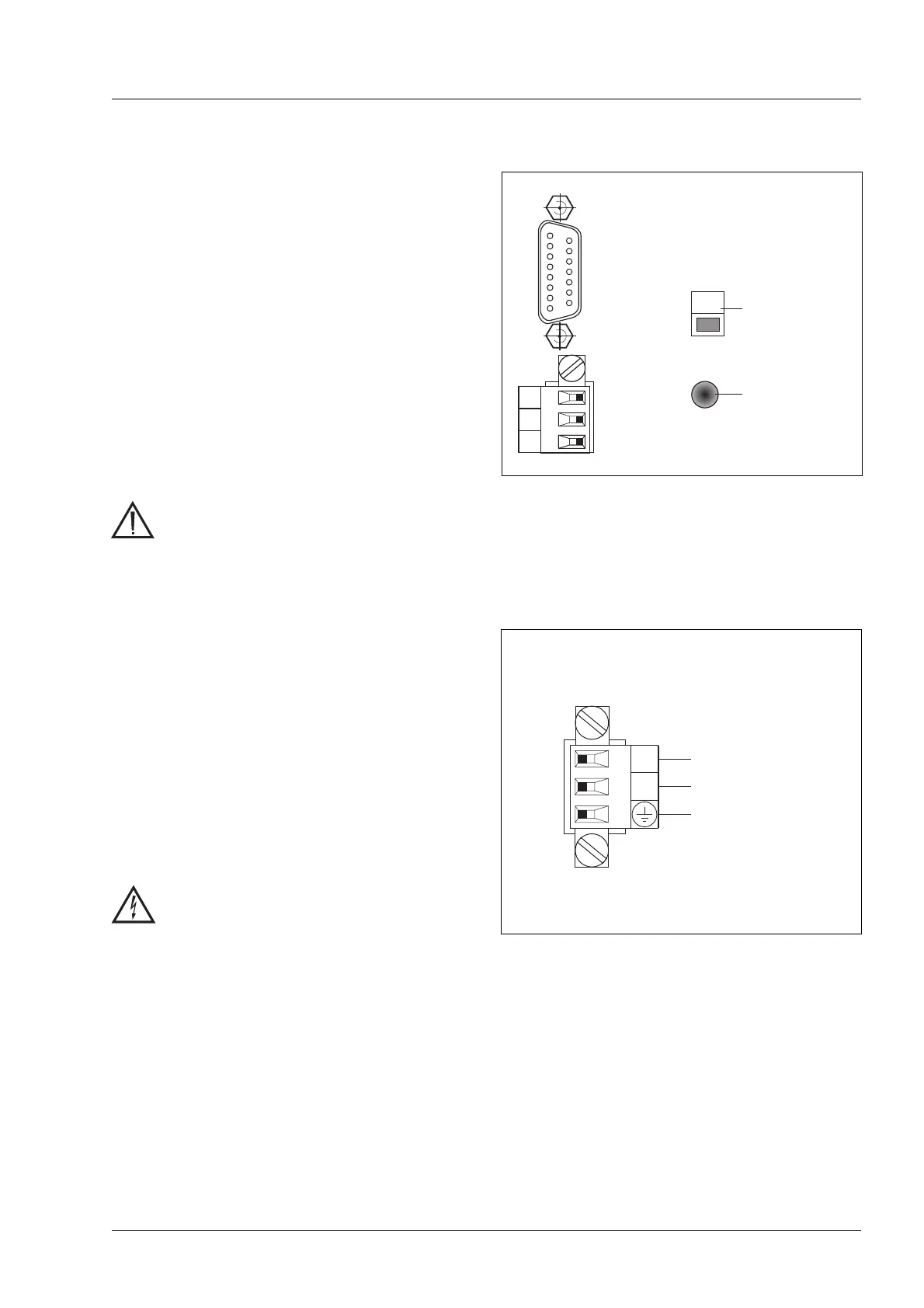

Figure 2-6 Adjustment of the mains voltage
L
N
Mains
Protectiveconductor
(PE)
12
Figure 2-7 Mains connection
Installation
WS5-5 Doc. no. 211.347/DGB 03.96 2 – 5
