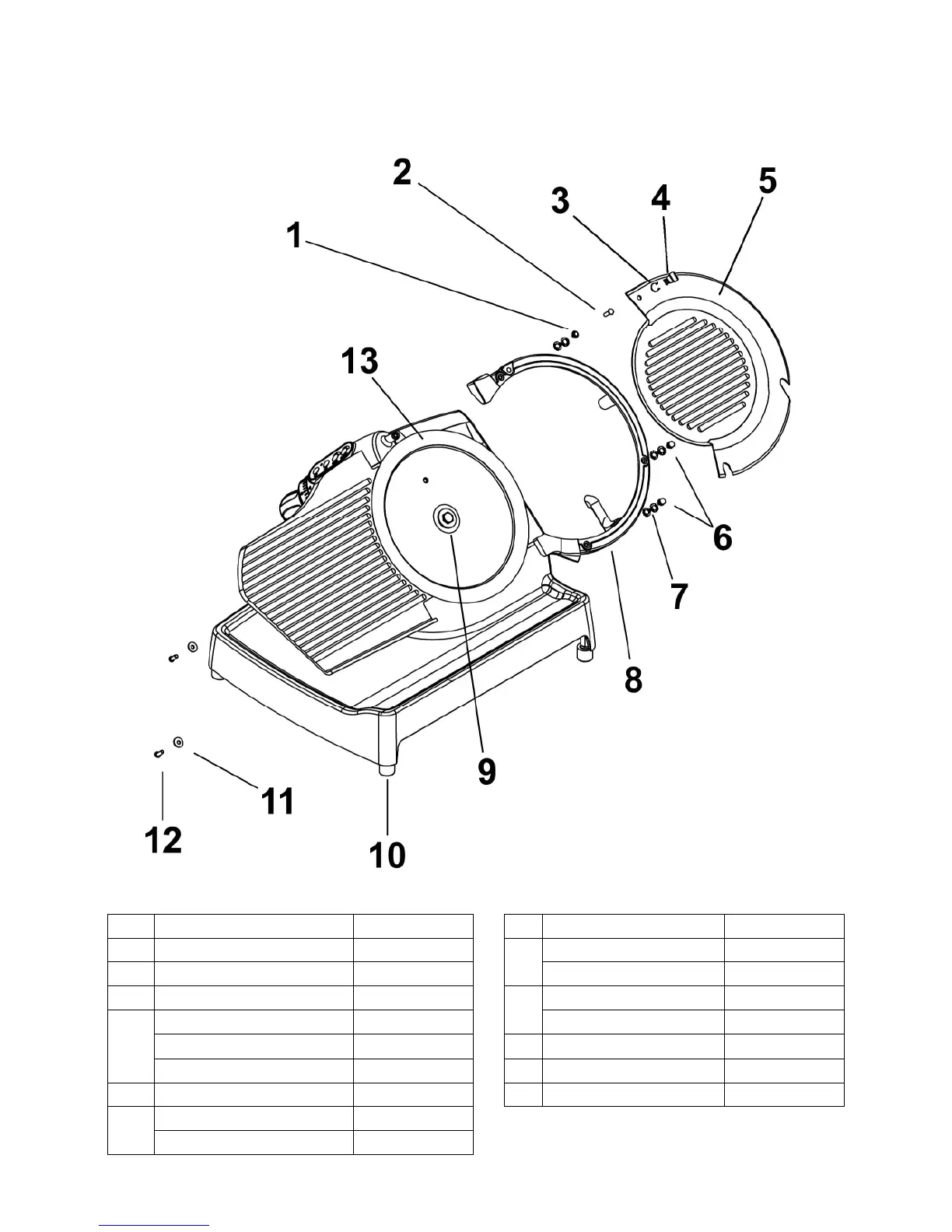

X13 Exploded Views May 2007
3) RING GUARD & CENTER PLATE
1 Post Stud 3375-01391 8 Ring Guard 3775-00497
2 Flat Head Screw 2175-00529 Knife Bolt 2175-00468
3 Retaining Ring 2275-00608
9
Knife Washer 2275-00524
4 Knob 3375-01392 Foot 3875-00239
Center Plate 3775-00499
10
Foot, Suction 3875-00249
Center Plate Assy 4675-01144 11 Washer 2275-005865
Center Plate Kit 4975-00472 12 Screw (Ring Guard) 2175-02867
6 Shoulder Stud 3375-01388 13 Knife 3675-00277
Shim 1.0mm 3275-00237
7
Shim 0.5mm 3275-00238
To Next Page
