X13 Exploded Views May 2007

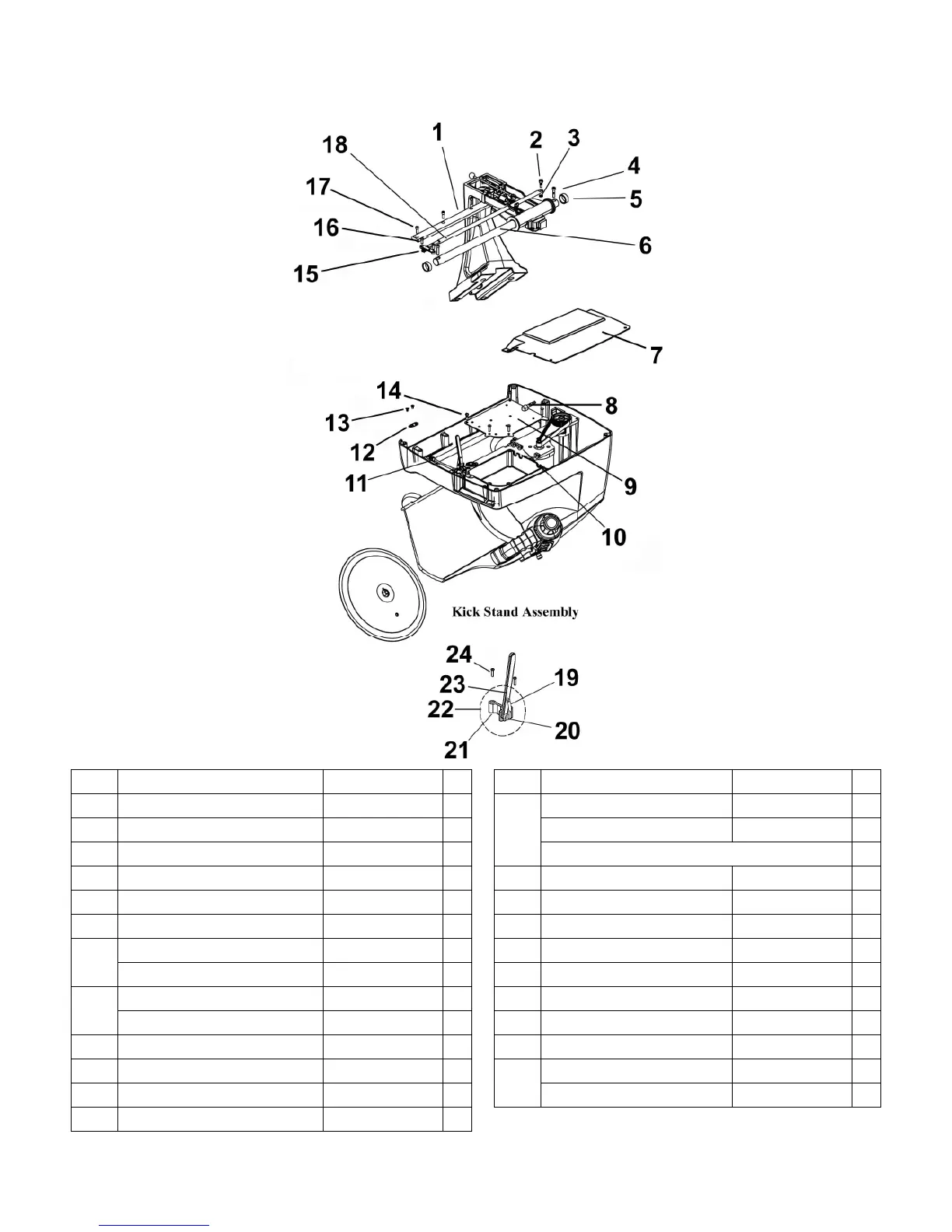

5) BOTTOM VIEW
1 Square Rail 3375-01278 14 Screw 2175-02854
2 Bolt 2175-00503 Slide Bar Guide 3875-00183
3 Washer 2275-00588 Screw for Switch 2175-00518 A
4 Screw 2175-02861
15
Switch (see Autodrive Assy) A
5 Bumper 3275-00233 16 Screw 2175-02866
6 Round Rail 3375-01306 17 Screw 2175-02743
7 Bottom cover 3875-00238 A 18 Slide Bar 3375-01275
Power Cord 4175-00719 19 Extension Spring 3275-00234
8
Bushing, Strain Relief 2675-00562 20 Shoulder Bolt 2175-00525
PCB Assy, Manual 4875-00047 21 Bracket Assy 4375-00234
9
PCB Assy, Auto 4875-00046 A 22 Kick Stand Assy 4675-01139
10 Grommet 3875-00234 23 Leg Assembly 4375-00235
11 Clevis 2375-00184 Bolt, Manual 2175-02869
12 Clamp 3375-01286
24
Bolt, Auto 2175-00527 A
13 Screw 2175-02934
A = X13A
