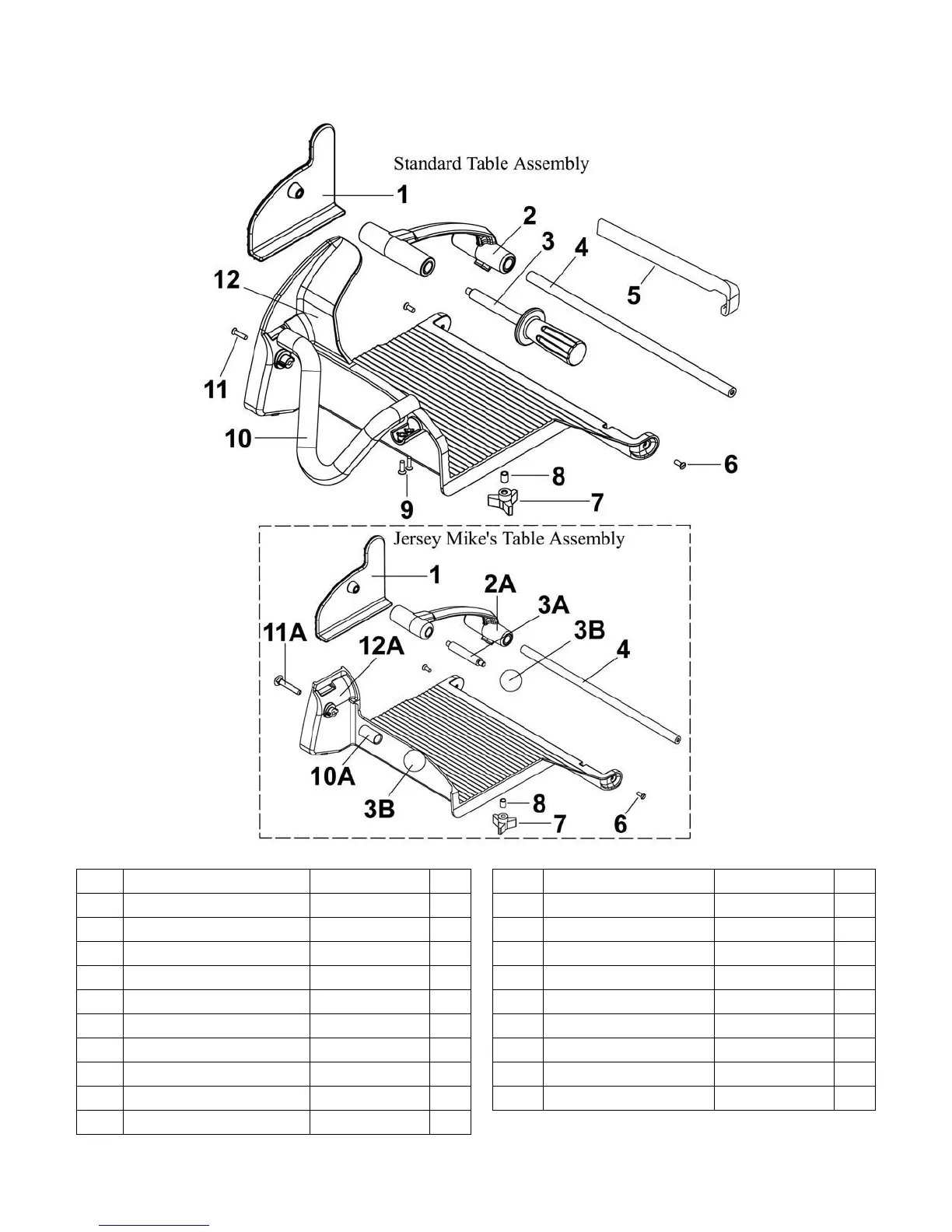

X13 Exploded Views May 2007
2) PRODUCT TABLE
Complete Table 4675-01134 6 Screw 2175-00509
Complete Table 4675-01152 JM 7 Knob 2275-00063
1 Pusher 3875-00177 8 Sleeve 3375-01386
2 Arm, Pusher 4375-00236 9 Screw 2175-00505
2A Arm, Pusher 3775-00500 JM 10 Handle 3875-00175
3 Handle, Pusher 4875-01032 10A Sleeve 3375-01398 JM
3A Shaft, Pusher 3375-01400 JM 11 Screw 2175-02949
3B Knob 2275-00042 JM 11A Bolt 2175-03277 JM
4 Guide Rail 3375-01387 12 Product Table 4975-00476
Arm Kit (Items 2, 4) 4975-00471 12A Product Table 3875-00254 JM
5 Product Fence 4675-01135
JM = Jersey Mike
