X13 Exploded Views May 2007

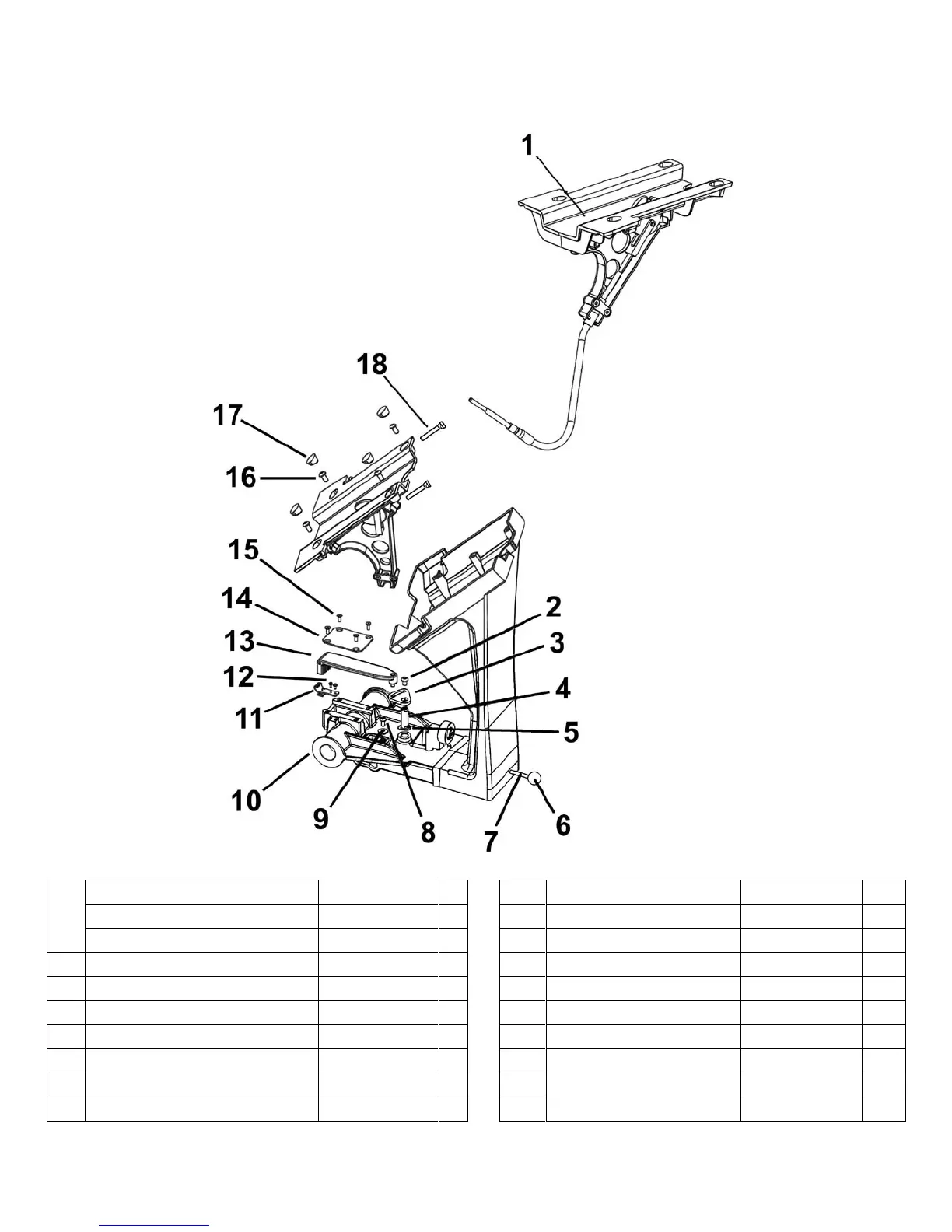

9) ARM ASSEMBLY – TOP VIEW
Top Plate Assy (Interlock) 4675-01127 9 Washer 2275-00589
Top Plate Assy 3875-00250 E 10 Arm with Bushings 4375-002261
Top Plate Assy (E Conv.) 4975-00474 E 11 PCB Assembly 2675-00920 A
2 Screw 2175-02862 A 12 Screw 2175-02831 A
3 Cam 3475-01021 A 13 Clip Assembly 4575-01033 A
4 Shaft 3375-01376 A 14 Plate 3475-01023 A
5 Disc Spring 2275-00592 A 15 Screw 2175-02923 A
6 Knob 2275-00580 A 16 Screw 2175-02864
7 Rod 3375-01373 A 17 Plug 3875-00235
8 Screw 2175-00520 18 Screw, Table Adjust 2175-00524
A = X13A / E = X13E
