320.055-B MAXAIR 37

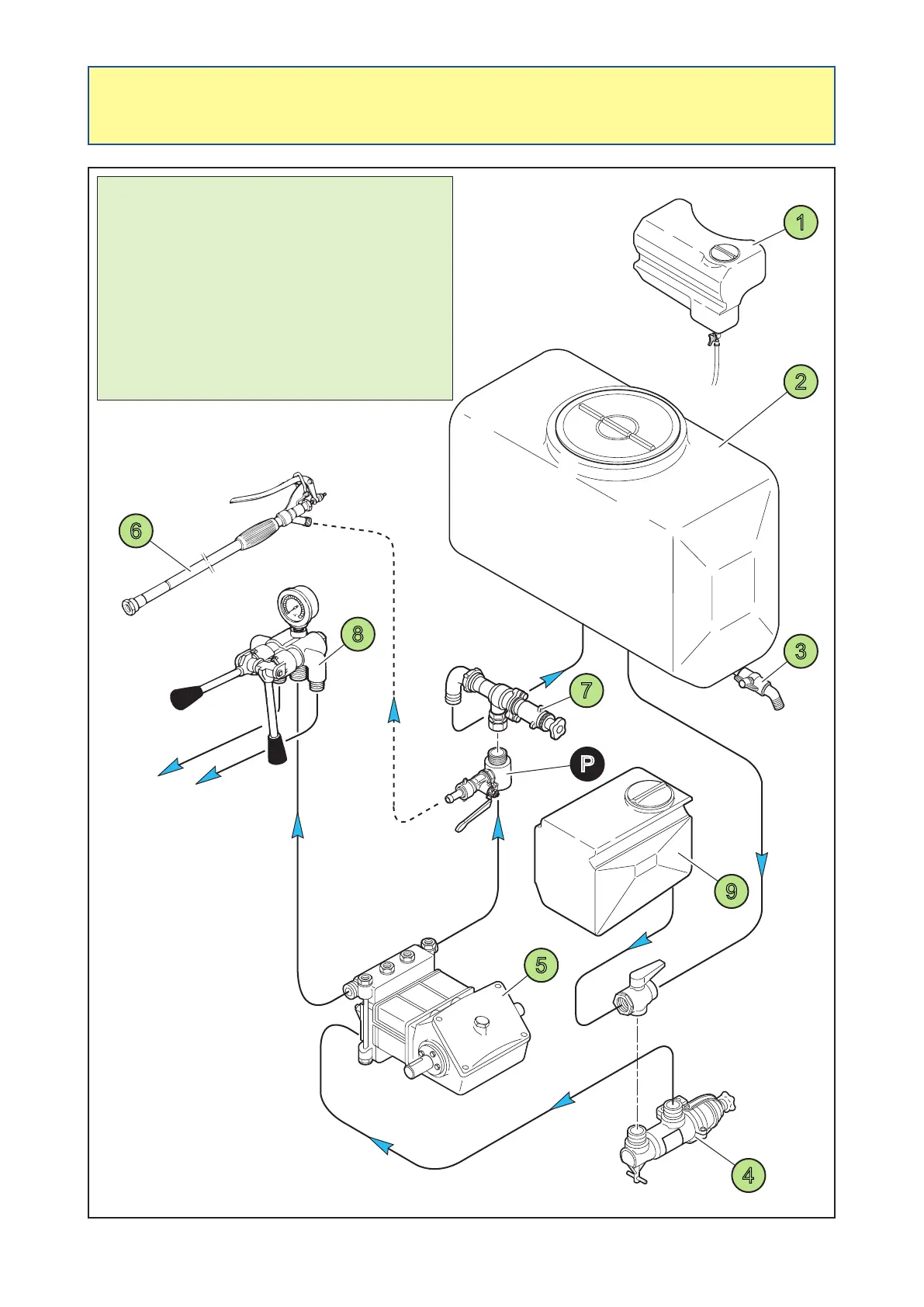

HYDRAULIC CIRCUIT OF A MAXAIR SPRAYER WITH
GAMA 82 PUMP - MANUAL VALVES
Nozzlefeed
ø 25
ø 35
ø 25
ø 12
ø 12
ø 19
ø 19
ø 35
1
2
3
8
5
7
6
4
9
P
1 - Handwashtank(18litres).
2 - Maintank(400/600litres).
3 - Drainvalve.
4 - Vannolter.
5 - Gama82pump.
6 - Americanspraynozzle(optional).
7 - Pressureregulator.
8 - Distributionblock.
9 - Rinsingtank(28litres).
P - Gunholder(optional).
