Beta RR 250 User Manual

1
GENERAL INFORMATION
27
GB
4
3
5
FUSE

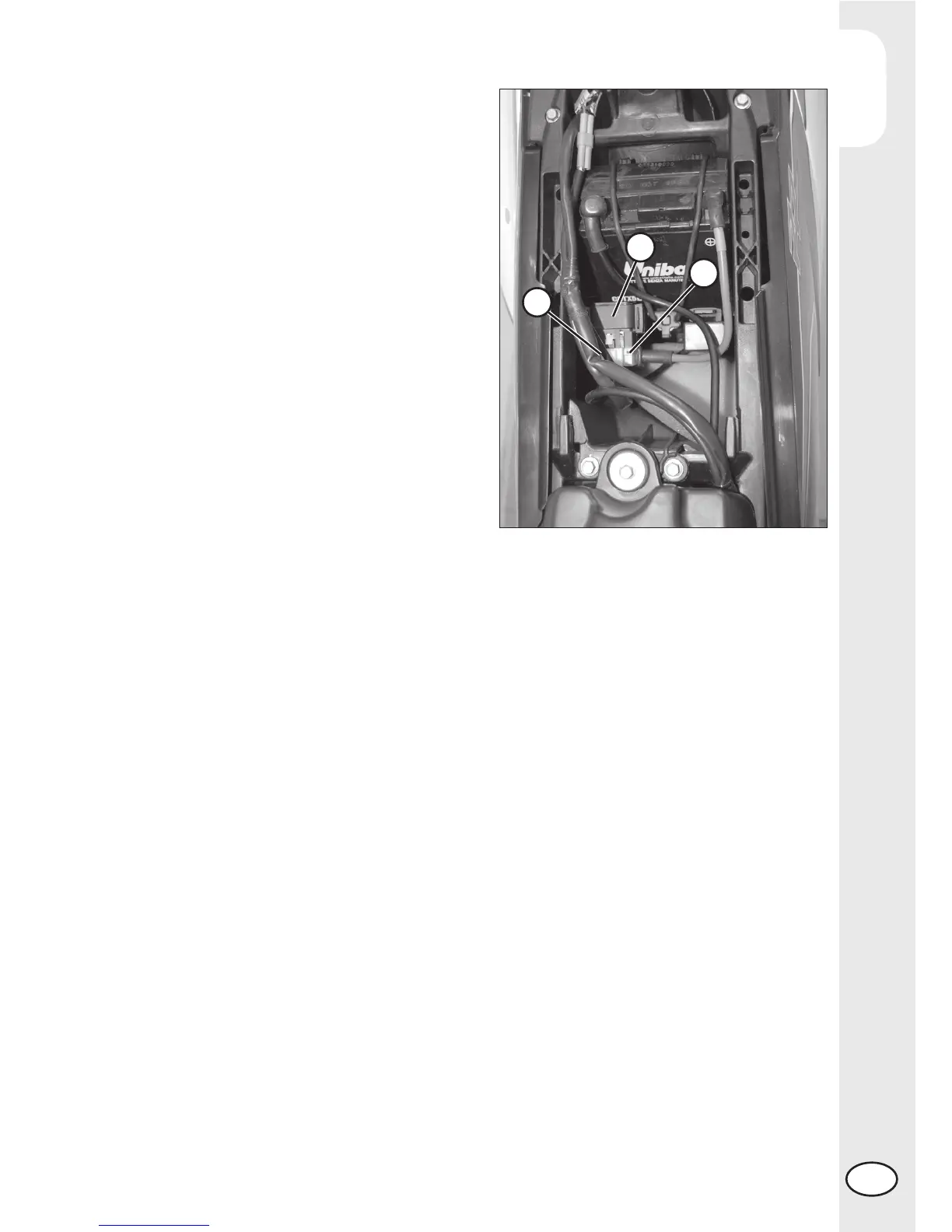

Fuse 3 is located in starting relay 4 placed
under the saddle and front the battery.
To gain access to the fuse remove the
saddle.
The fuse protects the following devices:
•electric starter
•horn
•indicators
•instrument panel
The starting relay also contains spare fuse
5 (10 amperes).
Always replace a blown fuse with another
of the same type.
If the new fuse should also burn out when
fi tted, immediately contact a specialized
BETAMOTOR workshop.
The fuse has a capacity of 10 amperes.
WARNING
Do not on any account fi t a larger capacity
fuse or attempt to fi x a broken fuse.
Unskilled operations could cause a break-
down of the entire electrical system.

Beta RR 250 Specifications

General

Displacement	249 cc
Transmission	6-speed
Front Suspension	Hydraulic USD fork with adjustable compression and rebound damping
Rear Suspension	Monoshock with adjustable compression and rebound damping
Front Brake	Single disc
Rear Brake	Single disc
Fuel Tank Capacity	9.5 liters
Seat Height	940 mm
Fuel System	Keihin PWK 36 carburetor
Front Tire	90/90-21
Rear Tire	140/80-18
Dry Weight	104 kg
Engine Type	2-stroke
Cooling System	Liquid
Bore x Stroke	66.4 mm x 72 mm
Clutch	Wet multi-disc
Frame	Molybdenum steel
