4
ADJUSTMENTS
61
GB

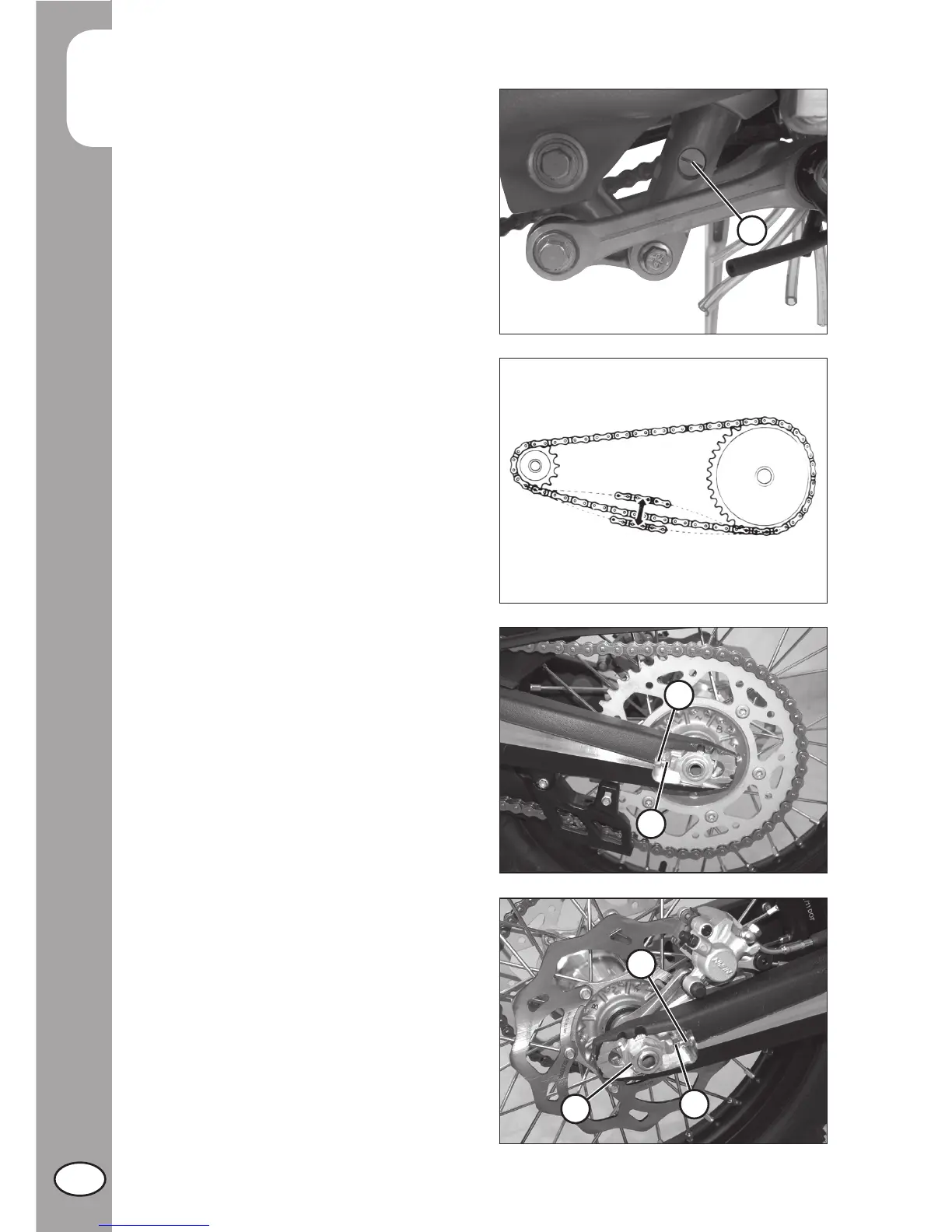

TENSIONING THE CHAIN
To ensure the drive chain a longer life, it is
advisable to periodically check its tension.
Always maintain the chain clean and
lubricated.
If the chain play exceeds 30÷35 mm,
tension the chain by following these steps.
•Loosen wheel spindle nut 1.
•Loosen counternuts A on either side of
the fork.
•Turn adjusting screws B on either side until
the desired chain tension is obtained.
•Tighten counternuts A on either side of
the fork.
•Tighten the nut 1 at 130 Nm.
30÷35 mm
ADJUSTING THE HYDRAULIC
REBOUND DAMPER
Turn screw G to adjust the hydraulic re-
bound damper.
Turning the screw anticlockwise (out) de-
creases the damping effect.
Standard adjustment RR 2t:
20 clicks from the completely closed position
B
A
A
B
1
G
