Better BT-1 - Bitmap Printing Commands

BT-1 user manual
Page 35 of 70
←
(xL+xH×256)×8dots=512dots
→
1
2
3
**** *
**** *
**** *
**** *
62
63
64
↑
65
66
67
126
127
128
yL+yH×256dots
K
-
2
K
-
1
K
↓
7 6 5
4 3 2 1 0
MSB
LSB
DC2 * r n [d1…dn]
[Name]
Print bitmap
[Format]
ASCII:
DC2 * r n [d1 … dn]
Decimal:
18 42 r n [d1 … dn]
12 2A r n [d1 … dn]
Hexadecimal:
[Description]
Printing bitmap with width & height
r: Bitmap height
n: Bitmap width

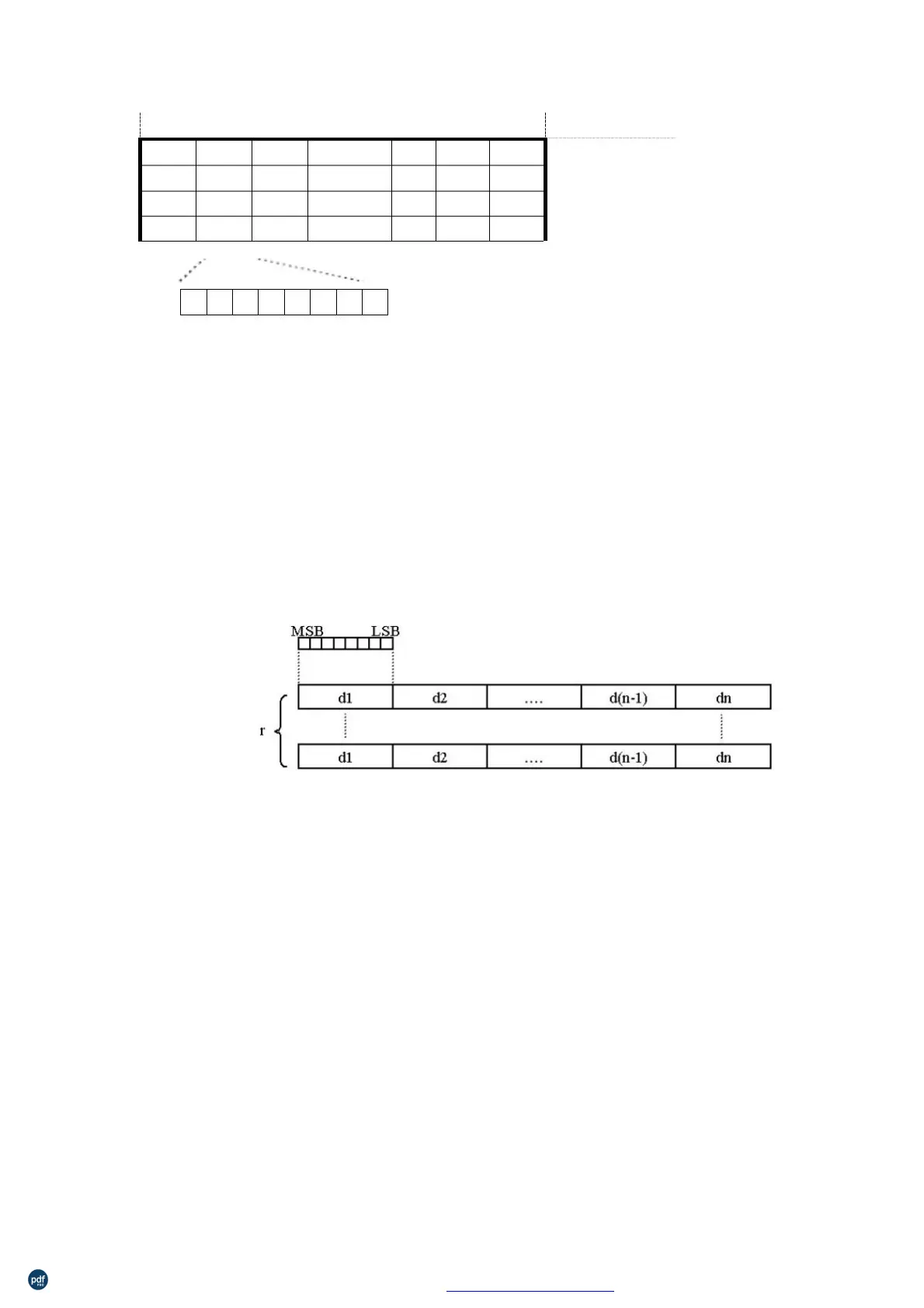

Bitmap f
ormat:
DC2 V nL nH [d1…dn]
[Name]
Print MSB Bitmap
[Format]
ASCII:
DC2 V nL nH [d1 … d48]
Decimal:
18 86 nL nH [d1 … d48]
12 56 nL nH [d1 … d48]
Hexadecimal:
[Description]
This command use to print MSB format bitmap,
The width of bitmap must the same as the printer mechanism
Bitmap height: nL+nH*256
Bitmap format:
