1 Codoor - General
Codoor 3500, a complete code lock suitable for fitting to a
single door, incorporates an electronic code lock, a mechanical
locking device and a power unit in the same housing. Codoor
may be fitted on most doors with handle operated ASSA type
mortice locks. When Codoor is fitted; the outside door handle is
disengaged and may be pressed down without opening the door.
To open the door, a 4-digit code has to be entered. The handle
on the inside of the door is not affected by Codoor, and works
normally for people leaving the premises. All programming,
except for setting of the programming code, is entered via the

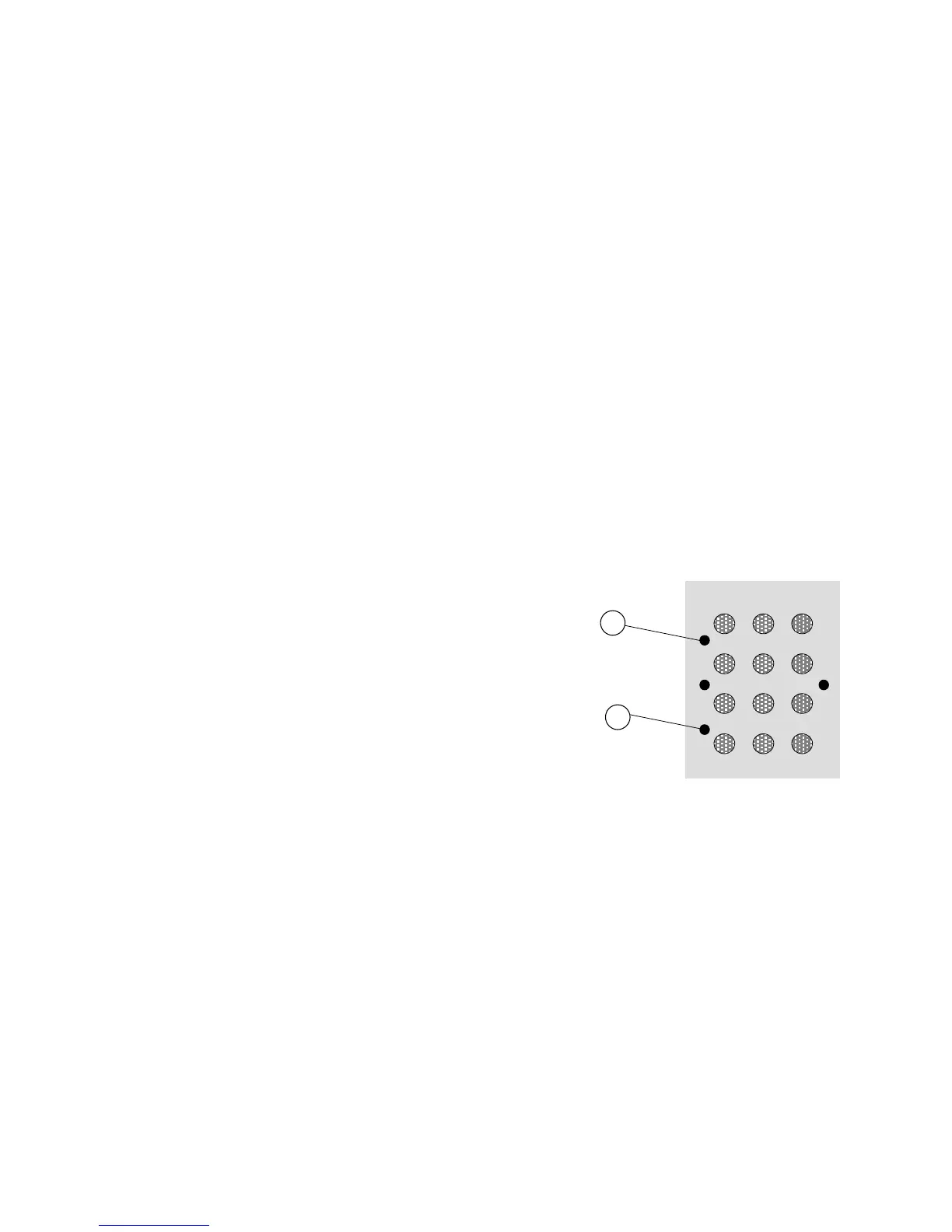

keypad (see figure). Besides the keys, the keypad includes two
LEDs, one green and one red.
GREEN - In programming mode, the green
LED indicates that codes etc. have
been entered correctly. It also
confirms each key press in
programming mode.
RED - In operating mode, the red LED
confirms each key press.
In programming mode, the LED
flashes slowly until a command is
entered. Then the LED flashes
quickly.
Codoor also incorporates a buzzer, both to confirm each key press (if
required) and to indicate “battery low” by sounding a low tone (see
section Backup Power Supply). Otherwise, the buzzer sounds to
confirm successful programming.
The programming code must be set before the unit is fitted to the
door (see next page).
