- 7 -

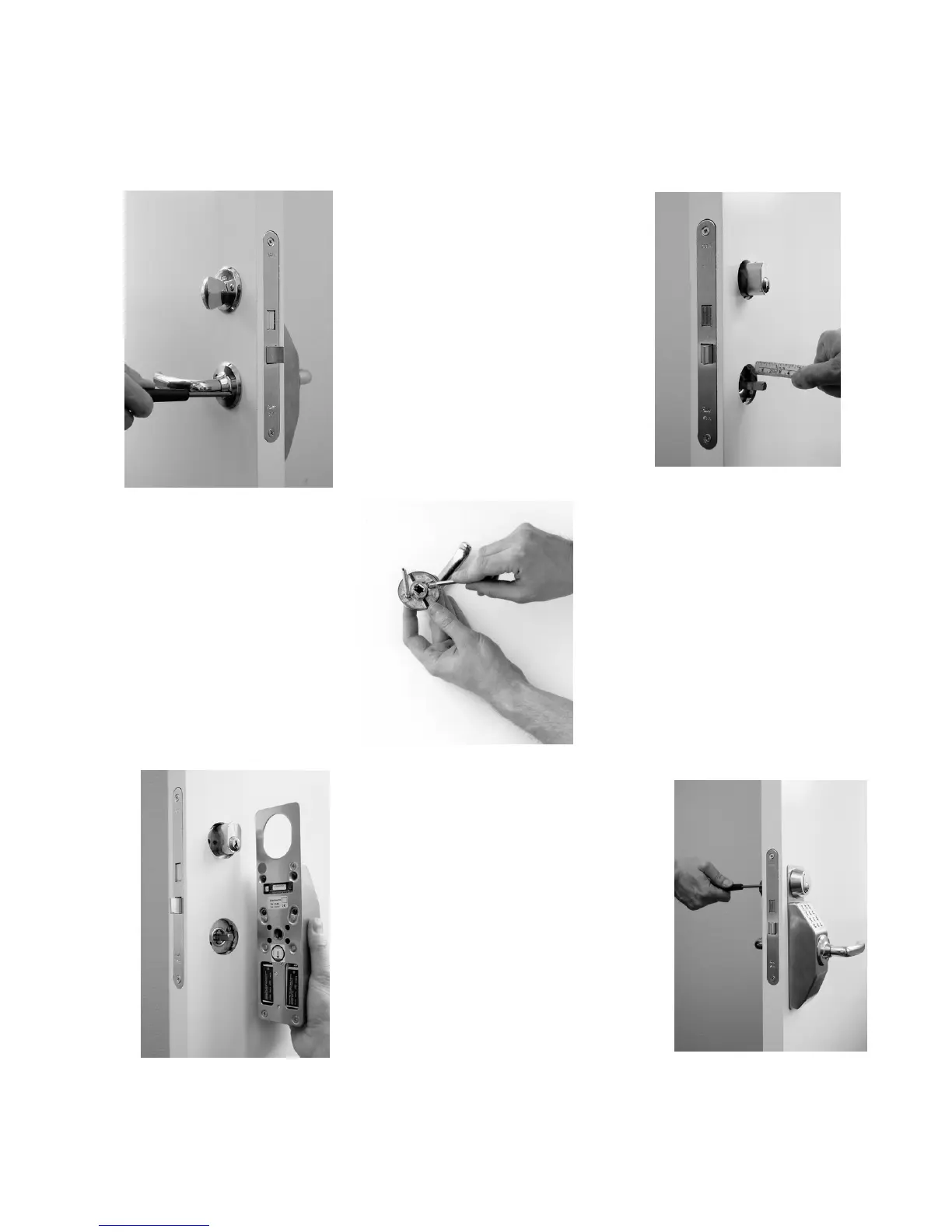

4 Fitting to door
1. Remove the cylinder ring and
the door handle from the door
by loosening the four screws.
2. The lever handle spindle
should project no more than
20 mm on the outside of the
door. If the spindle is too
long, push it through into the
handle on the inside. If this
cannot be done, cut the
spindle to the right length.
3. Screw the supplied
extension sleeves to the
nipples for the handle.
4. Place Codoor on the outside of
the door with the handle
attached, and pass the lever
handle spindle through the
square hole. Note! The red
mark on the follower should
always point downwards.
5. Tighten, not too hard, the four
previously loosened screws (the
screws for the handle first).
