2.5 Connecting the unit to the CH and CW systems
2.5.1 Particulars
Caution:

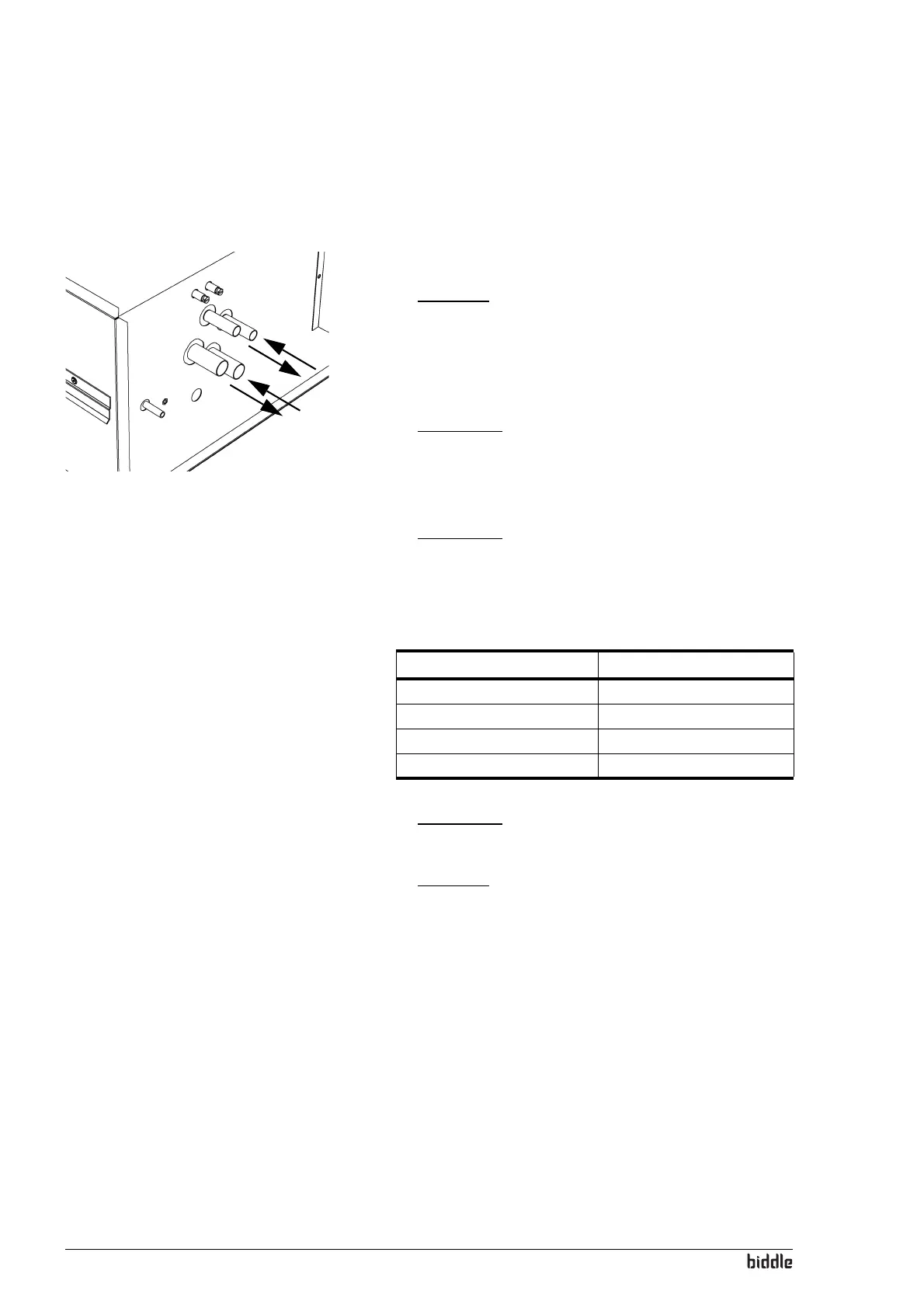

c The supply and return pipes of the CH and CW systems
must be connected to the appropriate corresponding con
-
nections 1. The directions are indicated on the unit by
means of arrows.
Warning:
w Maximum water temperature ranges for the CC S:
- CC H2-S: 80/60°C
- CC H3-S: 70/50°C
Warning:
w Use only compression fittings for connecting the
unit to the system. Table
2-2 lists the diameters of
the compression fittings per unit type.
Warning:
w Prevent the pipes from twisting.
Caution:
c Biddle recommends to include, close to the unit, a shut-off
valve and a relief valve in both pipes.
The maximum permissible operating pressure of the hot
water circuit is specified on the type plate (see section
1.3.4). This pressure applies at a water temperature of
110 ºC.
2.5.2 Units without water side control CC S
1. Connect the unit to the CH system.
2. Fill and bleed the system.
3. Check the connections for leaks.
Table 2-2 Diameters of compression fittings.
TYPE COMPRESSION FITTING
CC 60-H2, C2, H3, C3 ø22mm
CC 60-H1/C2 H: ø15mm - C: ø22mm
CC 90-H2, C2, H3, C3 ø22mm
CC 90-H1/C2 H: ø15mm - C: ø22mm
