MANUAL INSTALLATION
Version: 1.0 (22-09-2005) 23

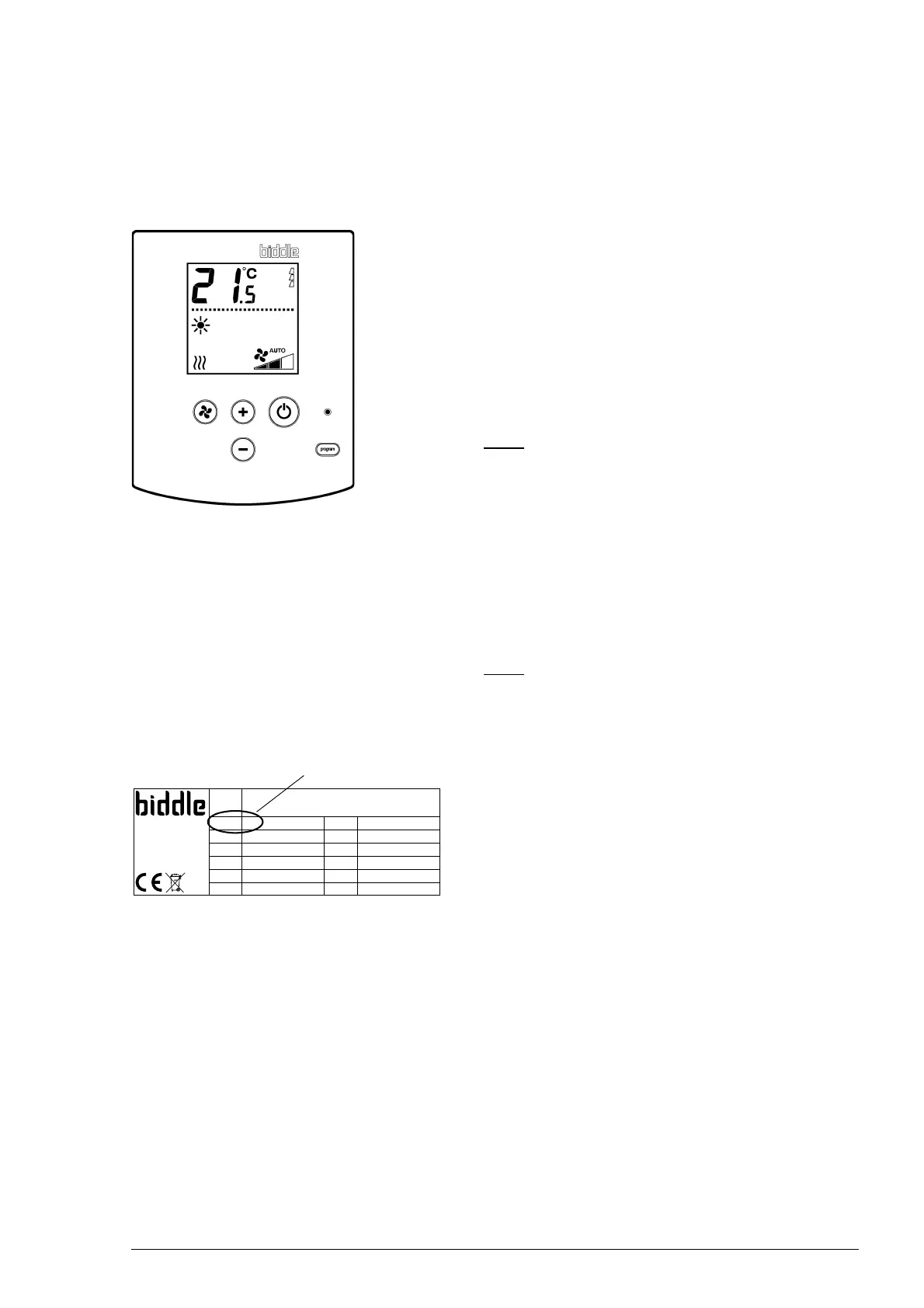

2.13 Installing the controller
2.13.1 Controller details
Positioning
• Fix the controller to the wall or to a standard socket.
• Mount the controller at a height of 1.5 m above the floor.
Cabling
Note:
n Take the following into account, otherwise faults may
occur:
- The control cable between the controller and the
(first) connected unit is not to exceed 50m.
- Keep control cables away from electromagnetic fields
and interference sources such as high-voltage cables
and fluorescent-light starters.
- Stretch control cables out or wind them bifilarly.
Note:
n Use only control cables from Biddle Biddle. Standard mod-
ular telephone cable is not suitable.
Multiple units operated from one controller
• Up to 10 units can be connected to one single controller.
To do so, the units must be interlinked.
• The following combinations of units are possible:
- units with unit codes ending on 11;
- units with unit codes ending on 21;
- units with unit codes ending on 12, 13 or 14;
- units with unit codes ending on 22, 23 or 24;
- unit code 3000 only in conjunction with code 2023.
• The total length of the control cables is not to exceed
100
m.
• The distance between the controller and the first unit is
not to exceed 50
m.
Type CC 60-H2-M1
Code U 230 V 1N~ 50 Hz
Biddle bv
Markowei 4
NL-9288 HA Kootstertille
Nº 123456/1-1 05-53 I
max
L1 xxx A
I
max
L2 -
M30kg I
max
L3 -
Medium LPHW P
motor
xxx kW
p
max
1400 kPa P
heating
-
xxx
code
