3. Position wiring cover and canopy
Slide wiring cover down downrod, resting it on the fan hub. Make sure no wires are
visible between the cover and fan hub. Slide canopy down downrod, resting it on the
wiring cover (Fig. 3).

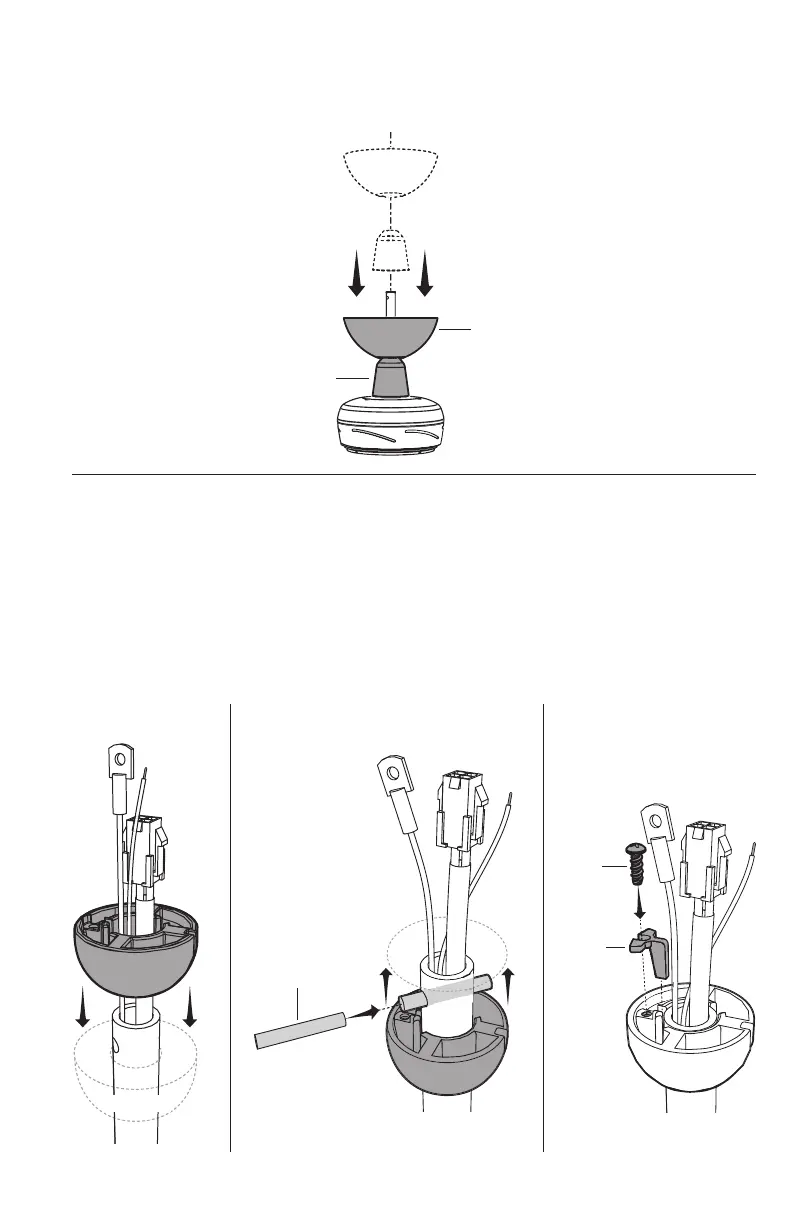

Fig. 3
Canopy
Wiring Cover
4. Install mounting ball
Slide mounting ball over downrod (Fig. 4.1).
Insert 6 mm steel pin into hole at top of downrod, and then slide the mounting ball
upward, seating the steel pin in the inner slots (Fig. 4.2).
Insert wedge into mounting ball and secure with screw. Tighten screw enough to
prevent movement between the mounting ball and downrod, but do not over-tighten
(Fig. 4.3).
Fig. 4.1
Mounting Mounting
BallBall
Downrod
6 mm Steel Pin
Screw
Wedge
Fig. 4.2 Fig. 4.3
