Step 6. Securing the safety cable
Loop the safety cable around the mounting bracket,
and then secure it with the safety cable shackle.
Special Note: If you are installing the fan in Canada, the
safety cable must be secured to an existing part of the
building structure instead of the outlet box. Examples of
acceptable building structures include a wooden beam or a
metal mounting brace secured between two beams. In some
cases it may be necessary to install additional structural
material to provide attachment points. If you have concerns
about installing the safety cable, consult a structural engineer.
Proceed to Step 7. Wiring the fan on the following page.

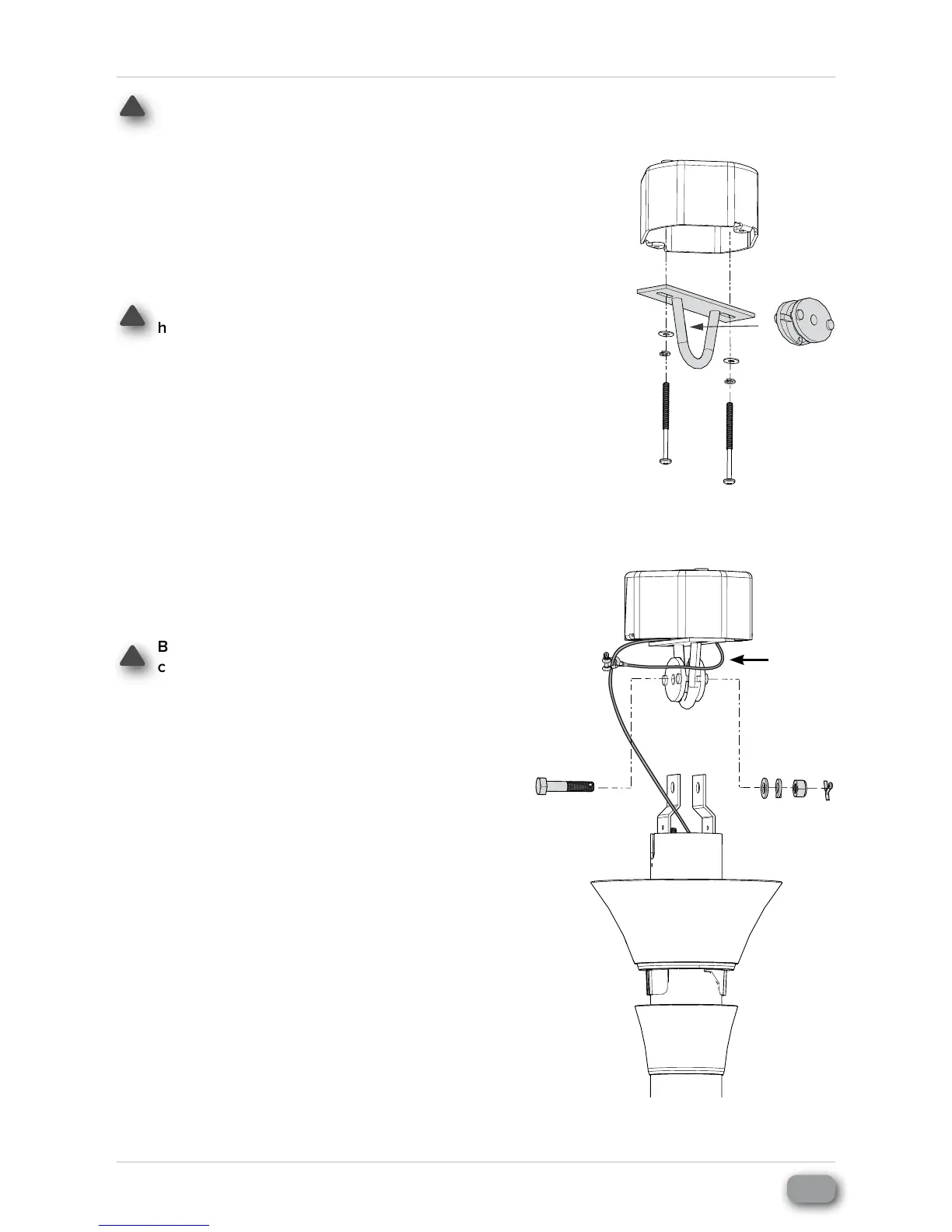

Step 4. Attaching the mounting bracket
Ensure wiring has been routed to the fan site.
Secure the mounting bracket to the outlet box with the hardware
supplied with the outlet box. Seat the rubber bushing in the eye
of the mounting bracket as shown.
Make sure to mount the bracket in the correct mounting
holes on the outlet box!
!
The ceiling-mounted outlet box must be UL-listed and marked “Suitable for Fan Support.” If
your existing outlet box is not UL-listed, it must be replaced with one that is UL-listed.
Step 5. Hanging the fan
Raise the fan to mounting bracket, and then attach it by
securing the extension tube bracket to the mounting
bracket with the mounting hardware as shown below.
Be careful not to drop any hardware in the wiring
cover during installation!
!
MOUNTING CONT.
!
Safety
cable
To Next Page
