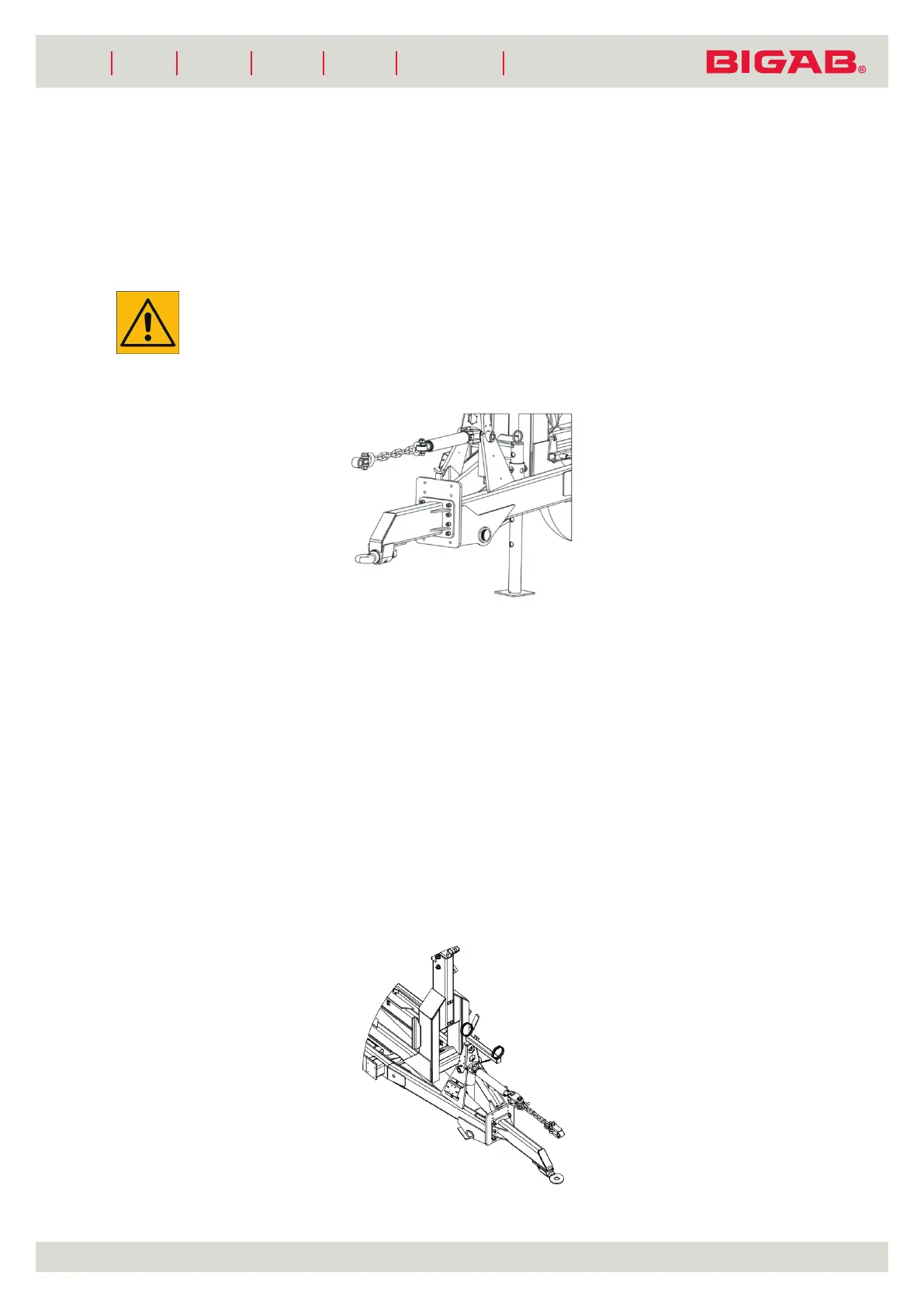

Parking leg
Parking leg is designed to be supporting when trailer is under maintenance or when trailer is not in
use. Standard trailer is equipped with manual parking leg. Hydraulic leg is option.
If trailer is at full load then it is not permitted to use the parking
leg!
Before driving, parking leg must be lifted up and xed with the
pin!
Parking leg
Frame locking
The hydraulic frame lock is used to lock the frame during the exchange function. The manometer is
present to indicate the tensile force on the cylinder. Do not use the frame lock while driving.
• When connecting the frame lock, the cylinder must be completely out;
• Connect the frame lock chain to the tractor third point;
• Check that the frame lockis tighten enough;
• To make the frame lock tighten, shorten the chain;
• When the frame lock is on, the pressure gauge must not exceed 100 bar.
Frame lock
