ELECTRICAL AND HYDRAULICAL SYSTEM
Electrical cable connection

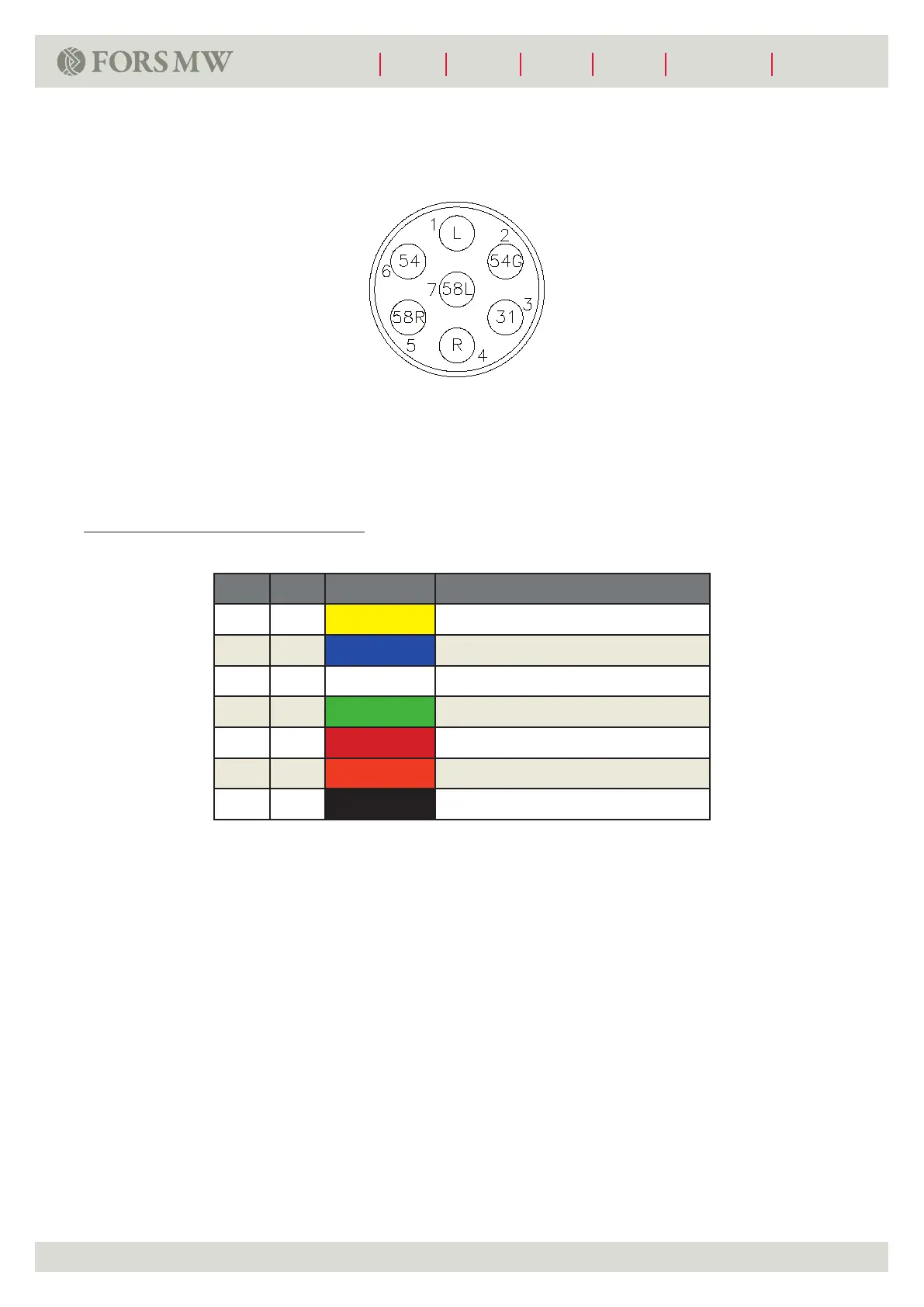

Electrical cable connection for rear lights with round 7 pin cable plug
Colors according to ISO 1724
Electrical cable connection.
No
Pos Colour Function
1
L Yellow (YE) Left turn signal
2
54G Blue (BU) Fog light
3
31 White (WH) ”-” Ground
4
R Green (GN) Right turn signal
5
58R Brown (BN) Right tail light/side marker
6
54 RED (RD) Stop light
7
58L Black (BK) Left tail light/ side marker
