Bigab 7-10 - Dimensional Drawing

      G  G
36
© 2021 FORS MW Ltd

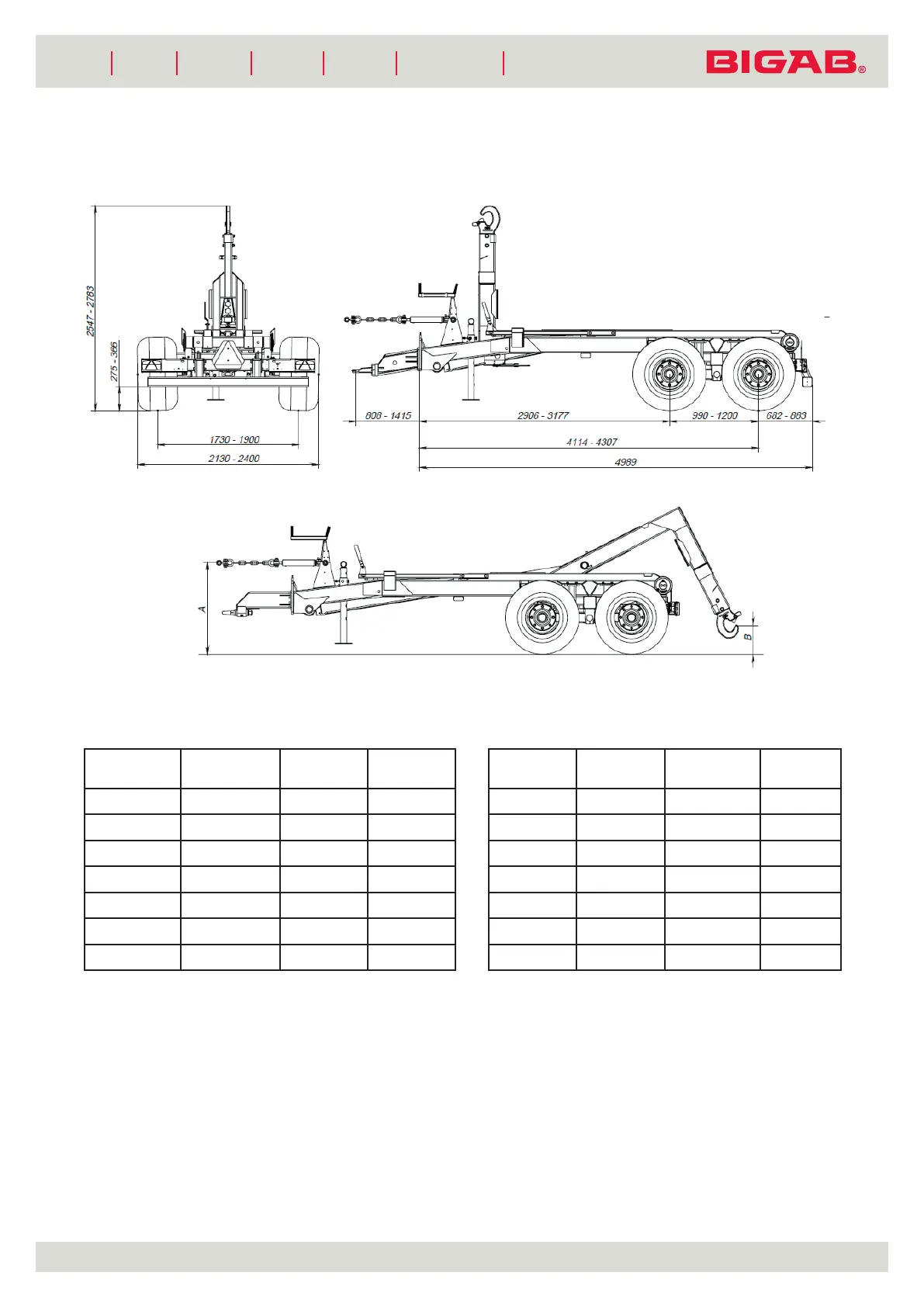

DIMENSIONAL DRAWING
Dimension from ground surface to frame lock (A) Dimension from ground surface to hook (B)
Model\
Suspension
Mechanical
pendulum
Tandem
suspension
Sprung
suspension
Model\
Suspension
Mechanical
pendulum
Tandem
suspension
Sprung
suspension
7-10 1066 NA NA 7-10 394 NA NA
8-12 1130 1177 NA 8-12 332 379 NA
10-14 1188 1245 1176 10-14 385 442 373
12-15 1188 1245 1176 12-15 385 442 373
14-17 NA NA 1178 14-17 NA NA 372
10-14 G2 1182 1239 1190 10-14 G2 1110 1167 1118
12-15 G2 1182 1239 1190 12-15 G2 1048/1600 1105/1600 1056/1551
* The length of the trailer depends on drawbar. The height of the trailer depends on wheels.
More specic information about the trailer can be found in the spare parts catalogue.
