BigDog MOWER CO - 48;54 Side Discharge Deck Belt Routing

121536 6-7 REV A
The following notes are the same for the different decks shown.
1. There is no tension adjustment of this belt
2. Route belt as shown.

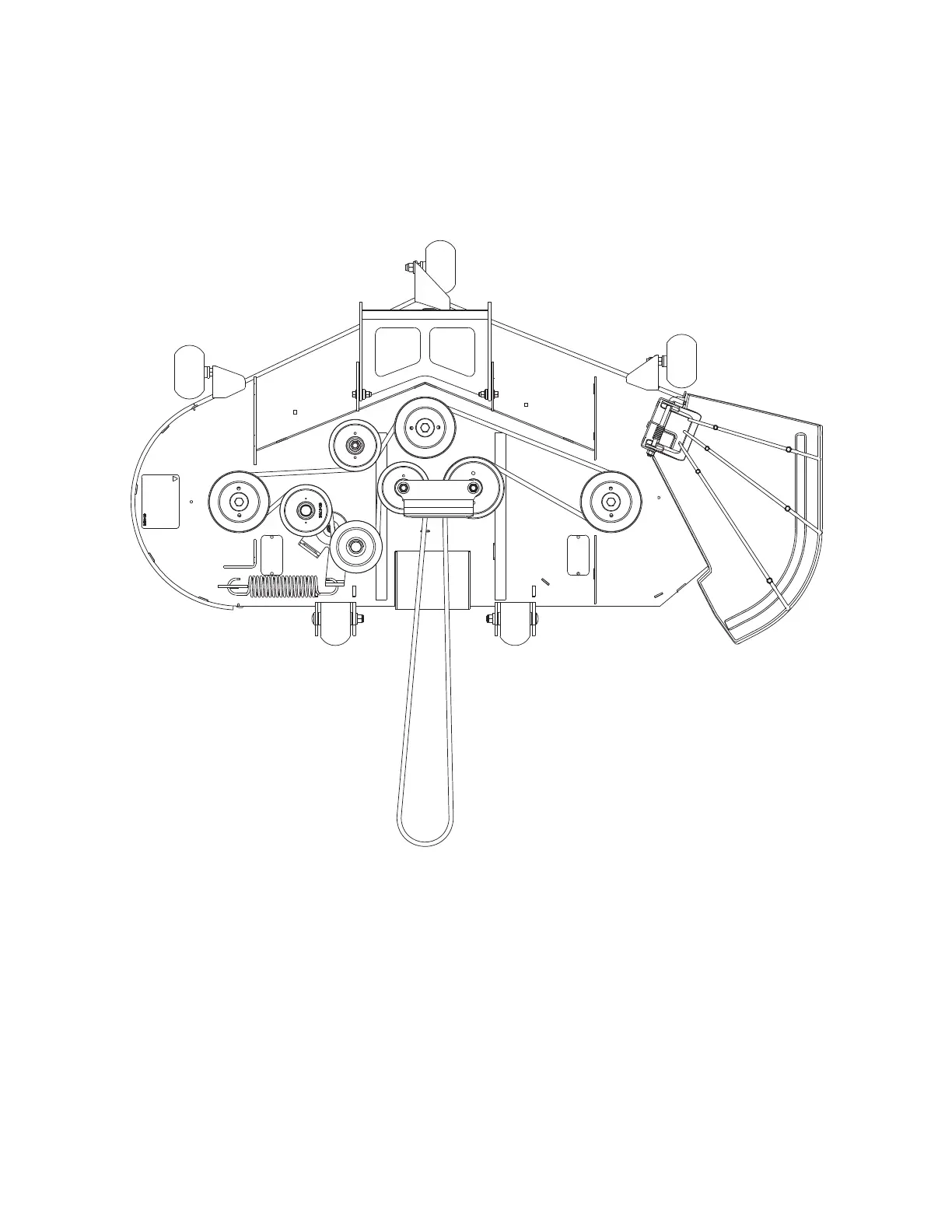

48"/54” Side Discharge Deck Belt Routing
Figure 6-18
