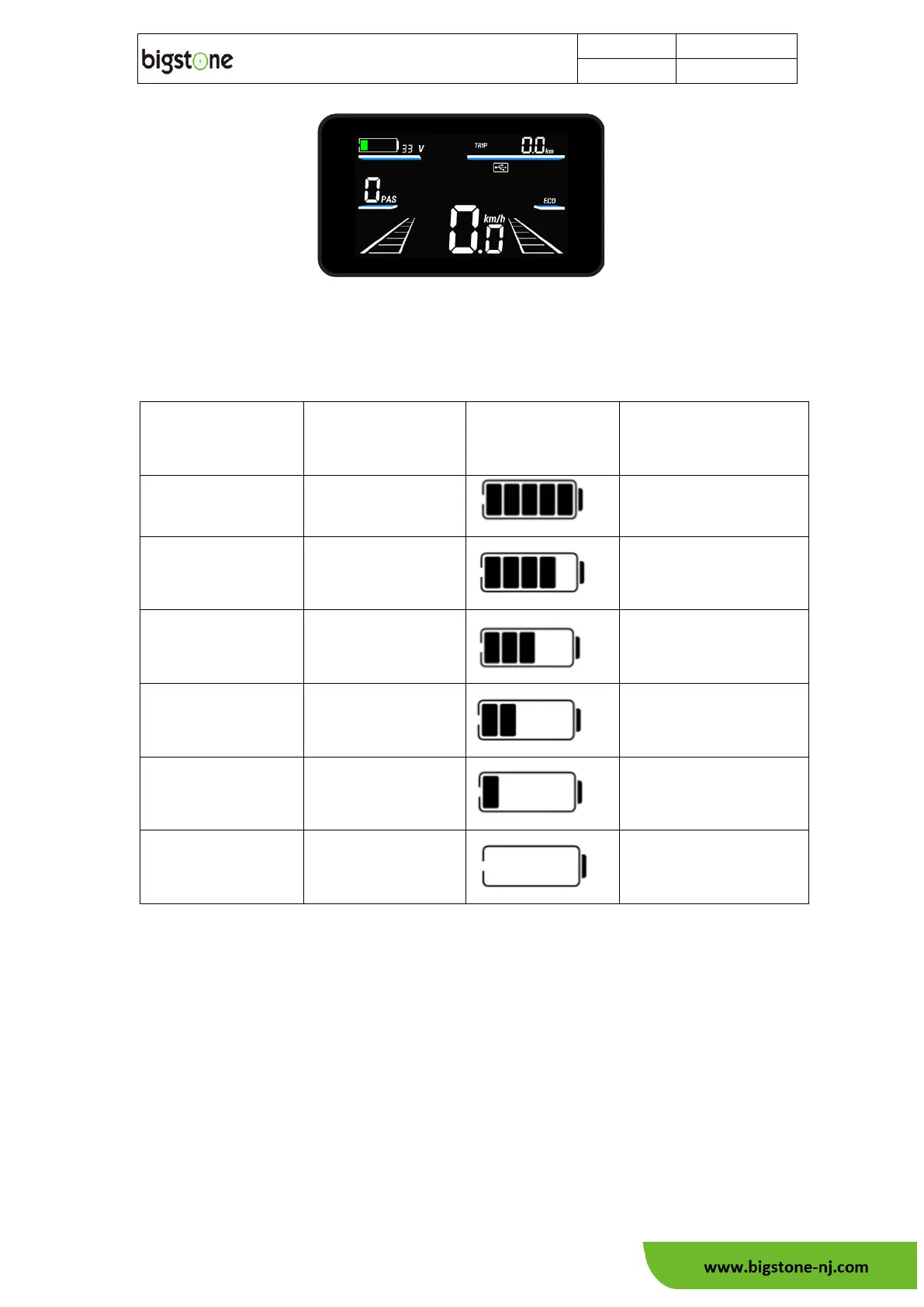

6.7 Battery capacity indicator
When the battery voltage value is lower than the under-voltage value, the screen
indicates the under voltage, the power bar displays 0 bars, and the battery frame flashes
at 1Hz. Displays the battery level according to the battery voltage sampling range:
36V battery
48V battery
Battery bar
indication
Description
37.5≤Vol
49≤Vol
Display full 5
35.5≤Vol＜37.5
47≤Vol＜49
Display 4
34.5≤Vol＜35.5
45.5≤Vol＜47
Display 3
33.5≤Vol＜34.5
44.5≤Vol＜45.5
Display 2
32.5≤Vol＜33.5
43≤Vol＜44.5
Display 1
32.5＞Vol
43＞Vol
Display 0, And the
battery symbol flickers
at 1Hz
