Billion BiPAC 4700ZUL Quick Start Guide

Quick Start Guide
2

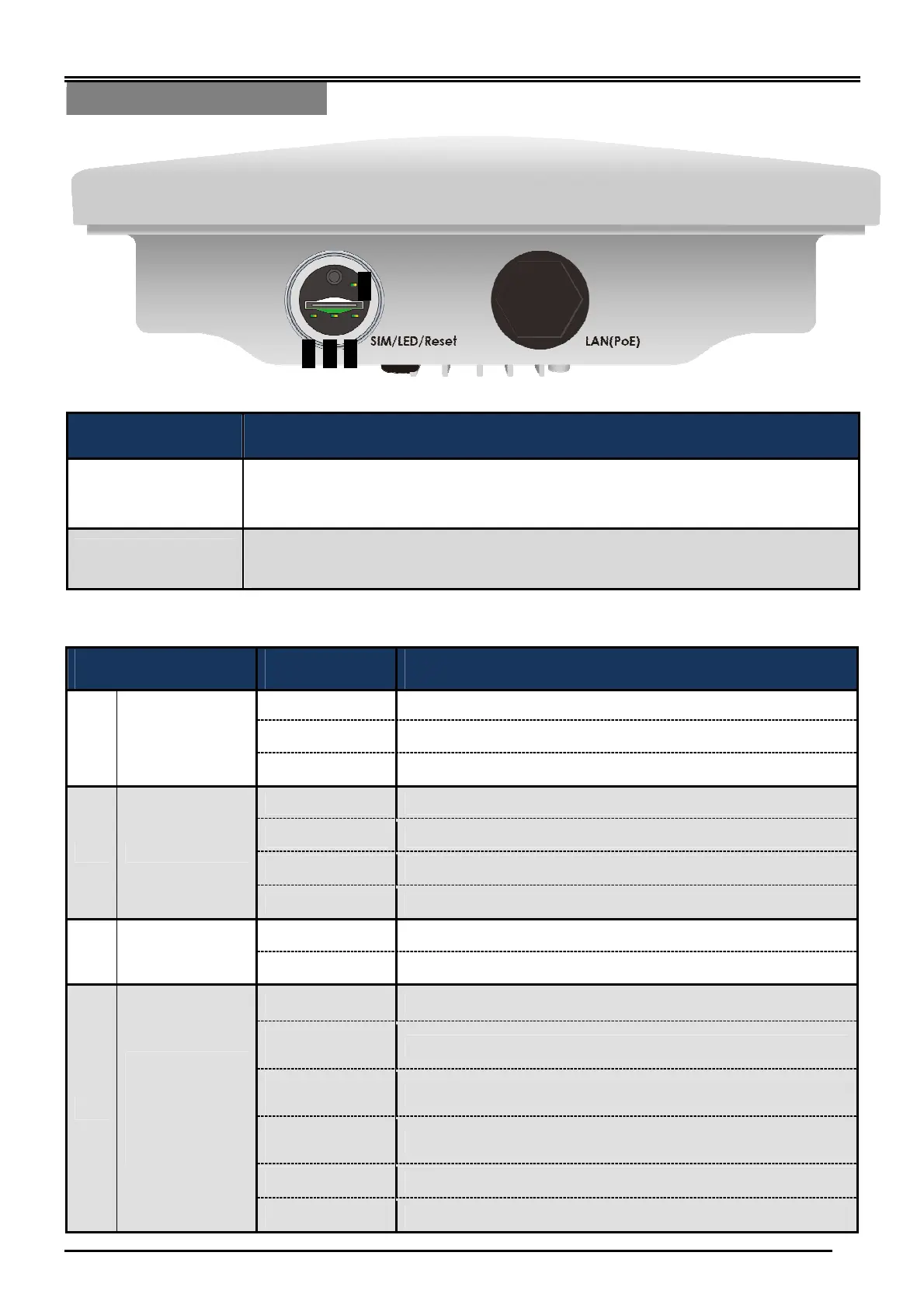

Hardware Overview
LED Description:
CONNECTORS DESCRIPTION
SIM / LED / Reset
Insert the SIM card into the SIM slot.
Press the reset button to reset device or restore to factory default settings.
Gigabit LAN(PoE)
Connect with the supplied PoE injector, 802.3at compliant, using an Ethernet
cable.
LED STATUS DESCRIPTION
Orange System is either in initial startup phase or has boot failure
Green System is up and ready
1 Power
Off No input power
Green Transmission speed is at Gigabit speed (1000Mbps)
Orange Transmission speed is at 10/100Mbps
Blinking Data being transmitted/received
2 LAN(PoE)
Off No device is being connected
Green IP connected and traffic is passing thru the device
3 Internet
Orange IP request failed or System is in initial booting phase
Green RSSI greater than -69 dBm. Excellent signal condition
Green
Flashing quickly
RSSI from -81 to -69 dBm. Good signal condition
Orange
Flashing quickly
RSSI from -99 to -81 dBm. Fair signal condition.
Orange
Flashing slowly
RSSI less than -99 dBm. Poor signal condition.
Orange No signal. 4G_LTE module is still in connected mode
4
3G/4G-LTE
(Received
Signal
Strength
Indicator)
Off No LTE module or LTE module fails
1 2 3
4
