Warnings:
• Before beginning any wiring be sure to disconnect the power from all devices in the system.
• During wiring gently connect and disconnect the cables.
Steps for device wiring:
1. Connect HDMI IN
Connect the HDMI sources (such as PC, Blu-ray player, Apple TV, 4K media player, etc) to
the HDMI IN 1-4. Ensure you are using a high-quality HDMI cable capable of supplying the
maximum resoluon you require.
2. Connect HDMI OUT
Connect the HDMI display device (such as a TV, projector, LED/LCD display or other
display device) to the HDMI OUT. Ensure you are using a high-quality HDMI cable capable
of supplying the maximum resoluon you require.
3. Connect AUDIO OUT
Connect audio devices to AUDIO OUT 1-4 of the Matrix (e.g. audio amplier) with RCA
cables.
4. Connect for addional control opons:
• Network Control (Telnet/Web UI): Connect a Local Area Network to the LAN port of
the Matrix.
• RS-232 Control: Connect a control PC or control system to RS-232 port of the Matrix.
• IR Control: The IR Remote provided is for controlling the Matrix through IR signal.
5. Connect the provided AC power cord to the Matrix.
6. Power on all aached devices.
...
Blu-ray Player Apple TV 4K Media Player
Display
Amplifier Amplifier
HDMI IN
HDMI IN
HDMI IN
HDMI OUT
HDMI OUT
AUDIO
OUT
AUDIO
OUT
Control System
Ethernet Switch
Ethernet
Ethernet
RS232 Signal
Ethernet

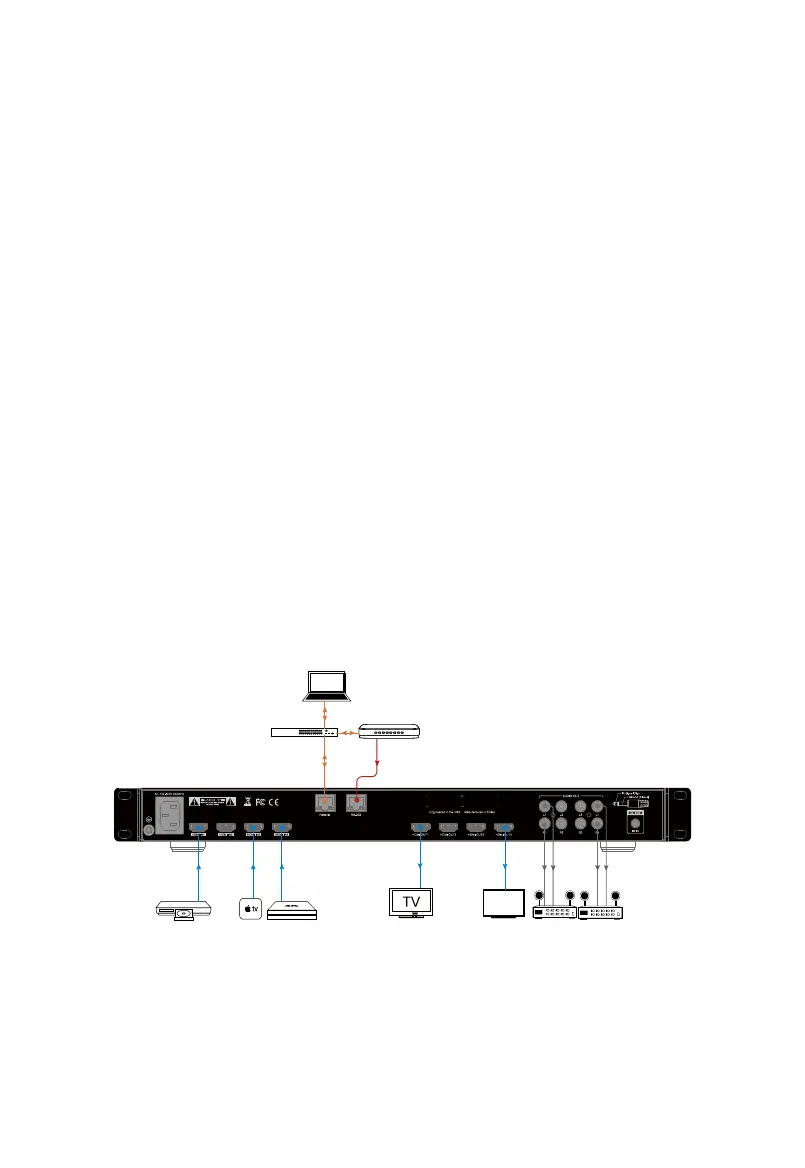

Applicaon Diagram
To Next Page
