The Matrix can be controlled by the provided IR Remote by poinng it directly at the IR sensor
on front panel. This allows for selecng inputs (source) for each output (display) as well as
power On and O for connected CEC-enabled displays.

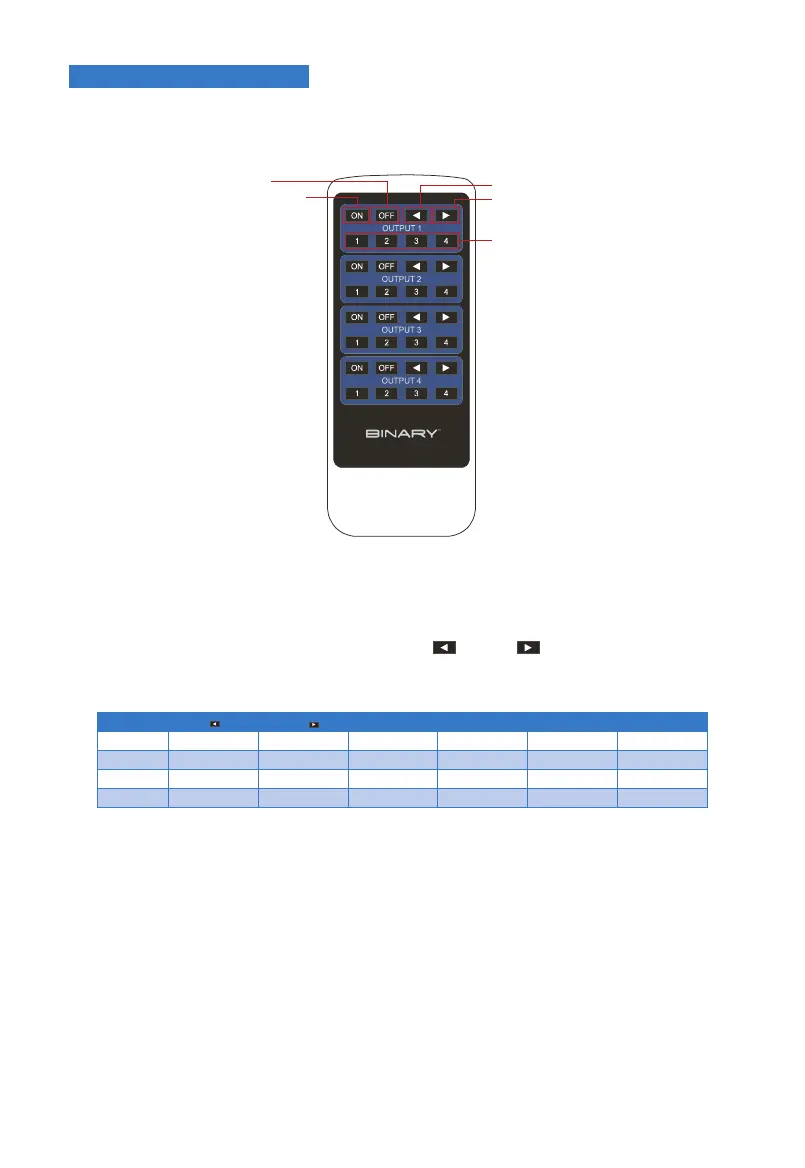

Select Previous Input for Output1
Click to Power On CEC-Enabled
Display of Output 1
Click to Power Off CEC-Enabled
Display of Output 1
Select Next Input for Output1
Select Specific Input for Output 1
Assigning Inputs (sources) to Outputs (display):
1. On the remote locate the output to assign an input to, these are in order vercally from
top to boom labeled in the middle of the remote.
2. Press the desired Input # or use the Previous or Next buon to scroll through the
available inputs.
Virtual IR Code Supported by Default (Matrix Switching Code)
Out1 0x57 0x41 0x09 0x1D 0x1F 0x0D
Out2 0x1B 0x11 0x17 0x12 0x59 0x08
Out3 0x55 0x48 0x5E 0x06 0x05 0x03
Out4 0x07 0x40 0x18 0x44 0x0F 0x51
