This secon includes four submenus: Matrix Control, Presets, Input Names and Output
Names.

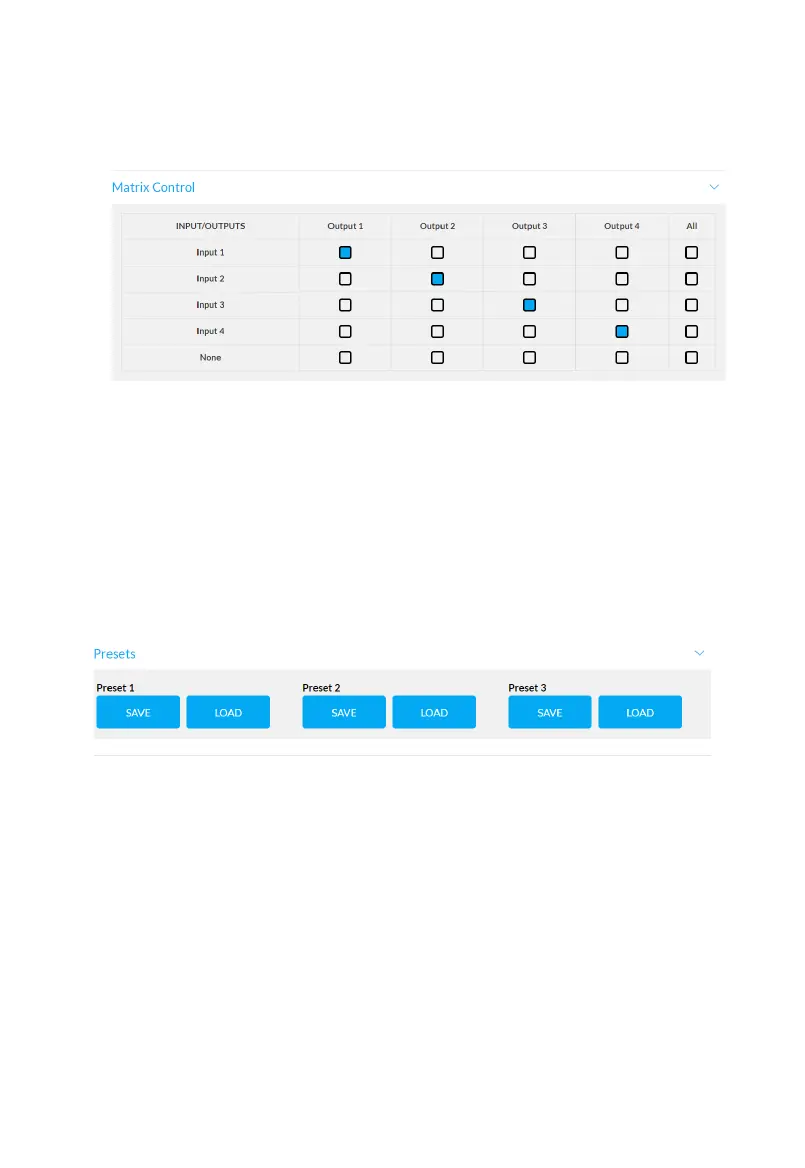

1. Matrix Control
This secon manages distribuon of input video sources to output displays. Click the buon
in the table to select the input for the output display (buon turns from grey to blue once
selecon is done).
• All Outputs: Click to route one input to all outputs.
• None: None input is routed to the output (or the output is turned o).
By default, Video Input 1 routes to Output 1, …, Video Input 3 routes to Output 3, Video Input
4 routes to Output 4.
2. Presets
This secon saves/loads the input/output switch sengs to or from the Matrix.
• SAVE: Sengs in Video Matrix Control secon are saved.
• LOAD: Preset already saved is loaded.

Binary B-660-MTRX-4X4 Specifications

General

Brand	Binary
Model	B-660-MTRX-4X4
Category	Matrix Switcher
Language	English
