2.1 Equipment overview FED
(1) Display
(2) Set-point value key
(3) Selector keys
(4) Time management key
(5) Switch ON/OFF
(6) Lever for ventilation slide
(7) Safety device
(8) Door handle
(9) Switch for interior lighting (with
option interior lighting) or
Buzzer switch (with option
audible over-temperature alarm)
(10) Main power switch for sizes 400
and 720

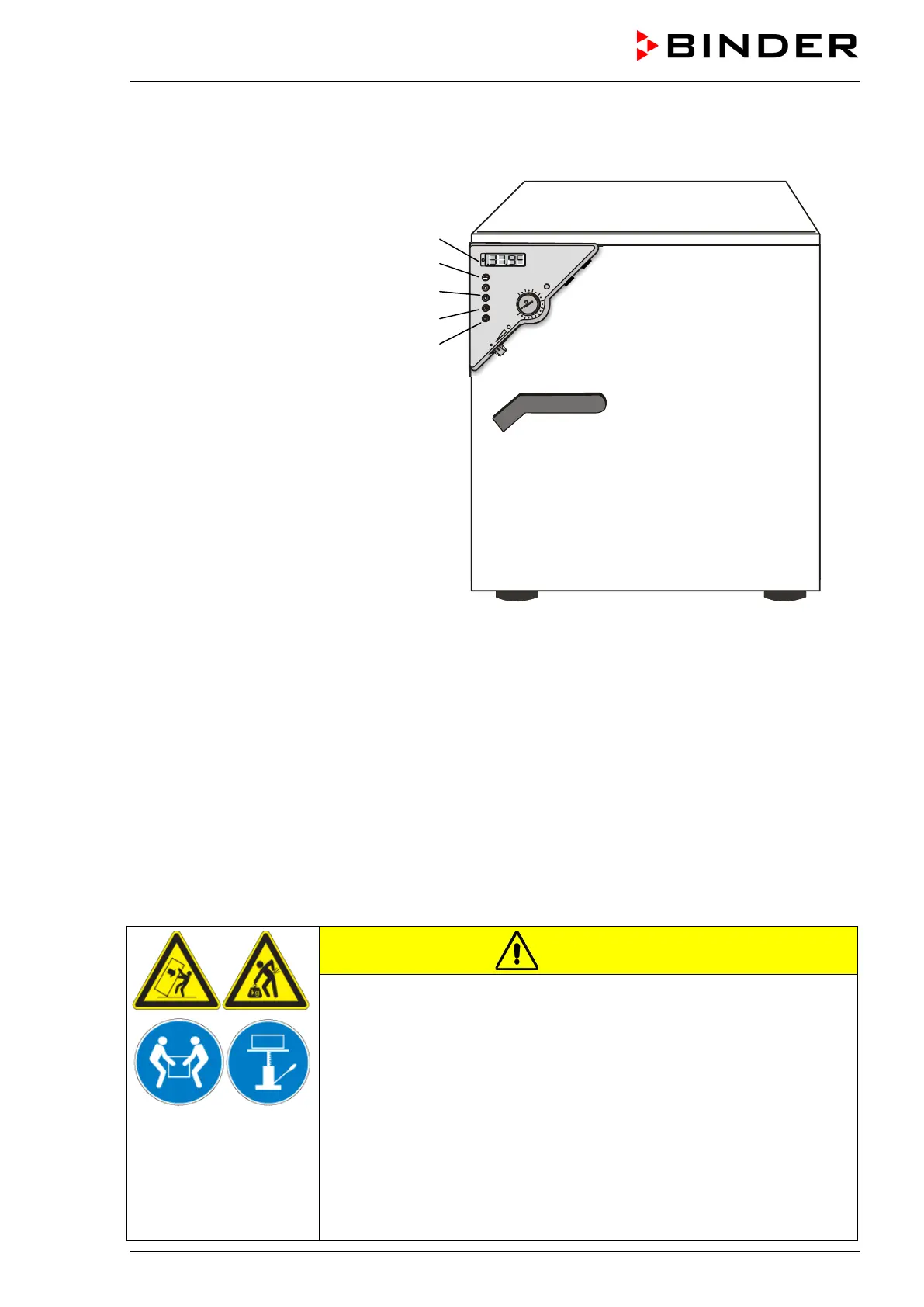

Figure 3: FED drying and heating oven
3. Completeness of delivery, transportation, storage, and
installation
3.1 Unpacking, and checking the equipment and completeness of delivery
After unpacking, please check the chamber and its optional accessories, if any, based on the delivery
receipt for completeness and for transportation damage. Inform the carrier immediately if transportation
damage has occurred.
The final tests of the manufacturer may have caused traces of the racks on the inner surfaces. This has
no impact on the function and performance of the chamber.
Please remove any transportation protection devices and adhesives in/on the chamber and on the doors
and take out the operating manuals and accessory equipment.
CAUTION
Sliding or tilting the chamber.
Damage to the chamber.
Risk of injury by lifting heavy loads.
∅ Do NOT lift or transport the chamber using the door handle or the door.
∅ Do NOT lift chambers size 400 and 720 by hand
 Lift chambers size 53 and 115 from the pallet at its four lower corners
with the aid of 2 people, chamber size 240 with the aid of 4 people.
 Lift chambers size 400 and 720 from the pallet using technical devices
(fork lifter). Set the fork lifter only from the rear in the middle of the
chamber. Make sure to place all the lateral supports of the chamber on
the forks.
(6)
(9)
(7)
(8)
(10)
(1)
(2)
(3)
(4)
(5)
