Repair work at the inner and outer chamber
A
B
C
D
E

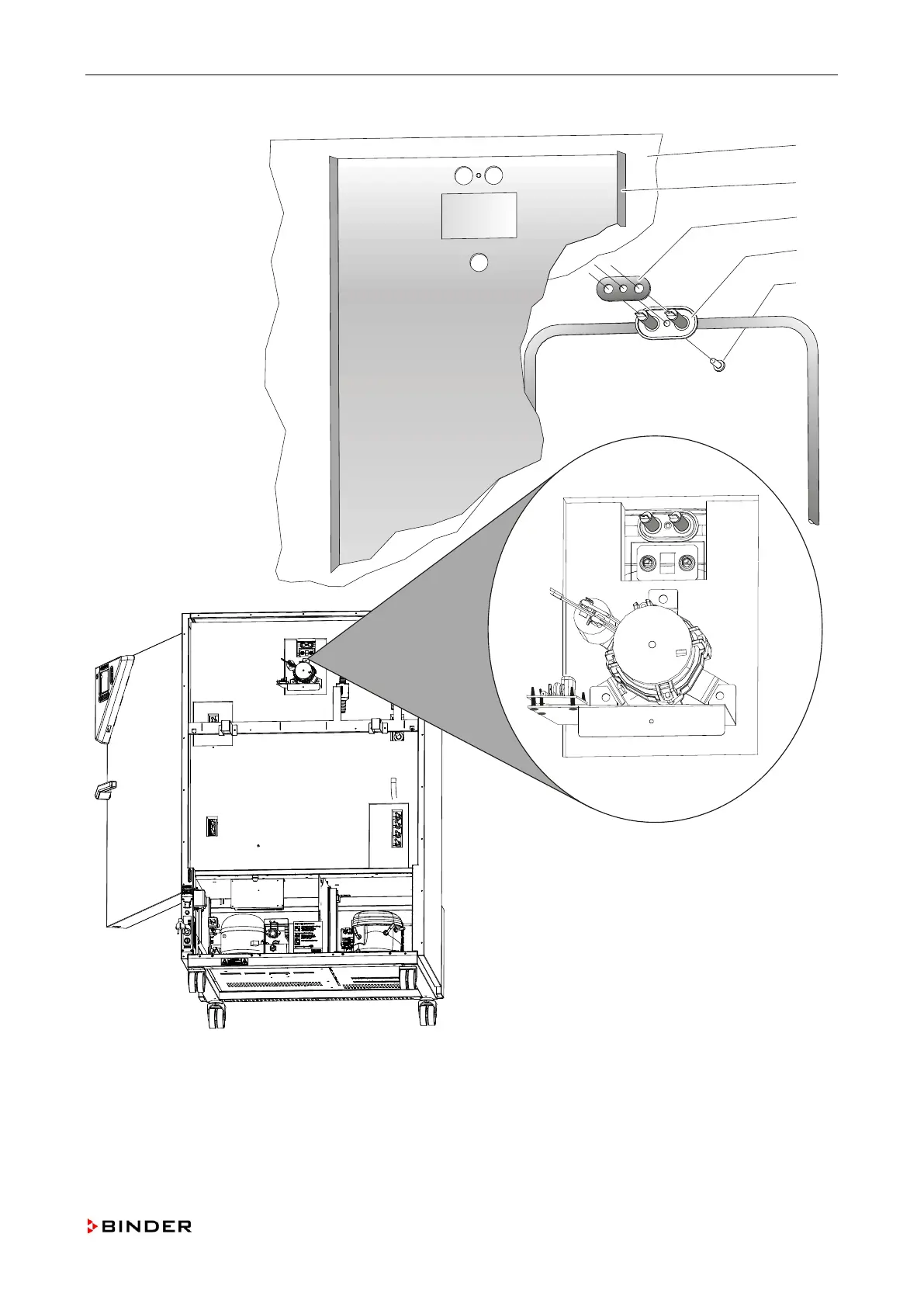

Figure 28: Replacing the heating element
A Rear panel of the outer chamber
B Bottom plate
C Gasket
D Heating element
E Fixing screws
Service Manual KBF (E5.2) 04-2015 67
