KMF (E5.2) 06/2014 page 71/99
14.6 Additional flexible Pt 100 temperature sensor (option)
An additional flexible temperature sensor Pt100 allows measuring the temperature of the charging mate-
rial by means of an independent measuring system utilizing Pt 100 entry. The Pt 100 sensor’s top protec-
tive tube can be immersed into liquid substances
Pt 100 Sensor
PIN 1: Pt 100
PIN 2: Pt 100
PIN 3: Pt 100
DIN socket (4)
DIN plug
A suitable DIN plug is enclosed.

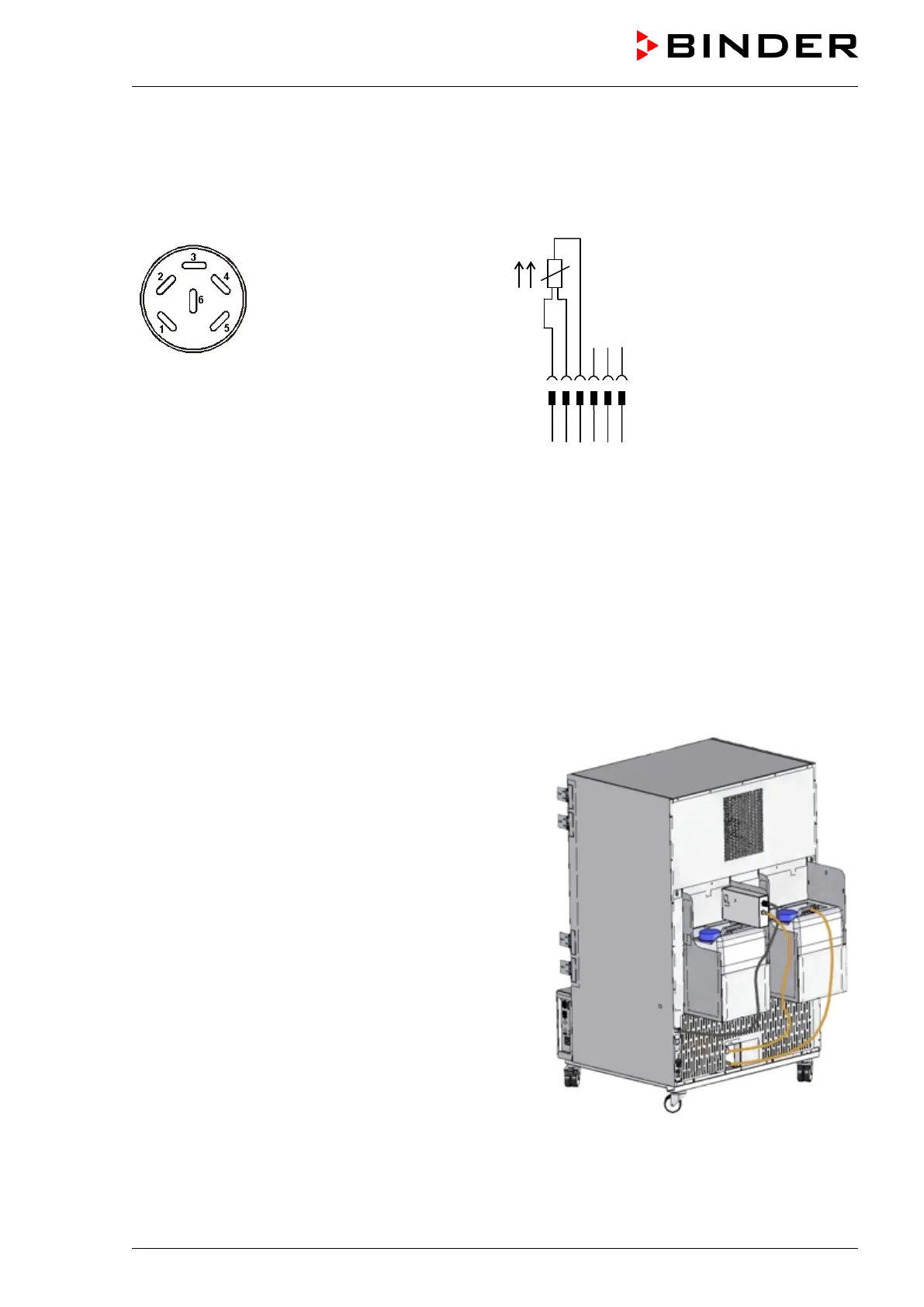

Figure 22: Pin configuration of the DIN socket (4) in the right lateral control panel
Technical data of the Pt100 sensor:
• Three-wire technique
• Class B (DIN EN 60751)
• Temperature range up to 320 °C / 608 °F
• Stainless steel protective tube 45 mm length, material no. 1.4501
14.7 External freshwater and wastewater cans (option)
If no suitable in-house water connection is available, you
can manually supply water by filling the optional external
freshwater can. There is an additional external water
can for the waste water. Volume: 20 liters / 0.71 cu.ft.
The cans are placed in holding devices. You can affix
them directly at the rear of the unit or place them next to
the unit.
Figure 23: Rear view KMF with installed external water
cans (option)
